K connector 30 | 16 | 100

morepic-1

morepic-2

K connector

Item no. 5408298 | EAN 4012195613251

Item no. / Types

Dimension d min.

Dimension d Ø

Dimension L	100 mm

Product description

Product description

• K connector for installation of insulating rods

• With M10 bolts

Technical data

Technical data

Connection	Round conductor
Dimension	16mm
Dimension d min.	30 mm
Dimension d Ø	16 mm

Dimension L	100 mm
Length	100 mm
Material	Aluminium

All types

All types

Types	Dimension d min.	Dimension d Ø	Dimension L	Item no.	Quantity	SSU

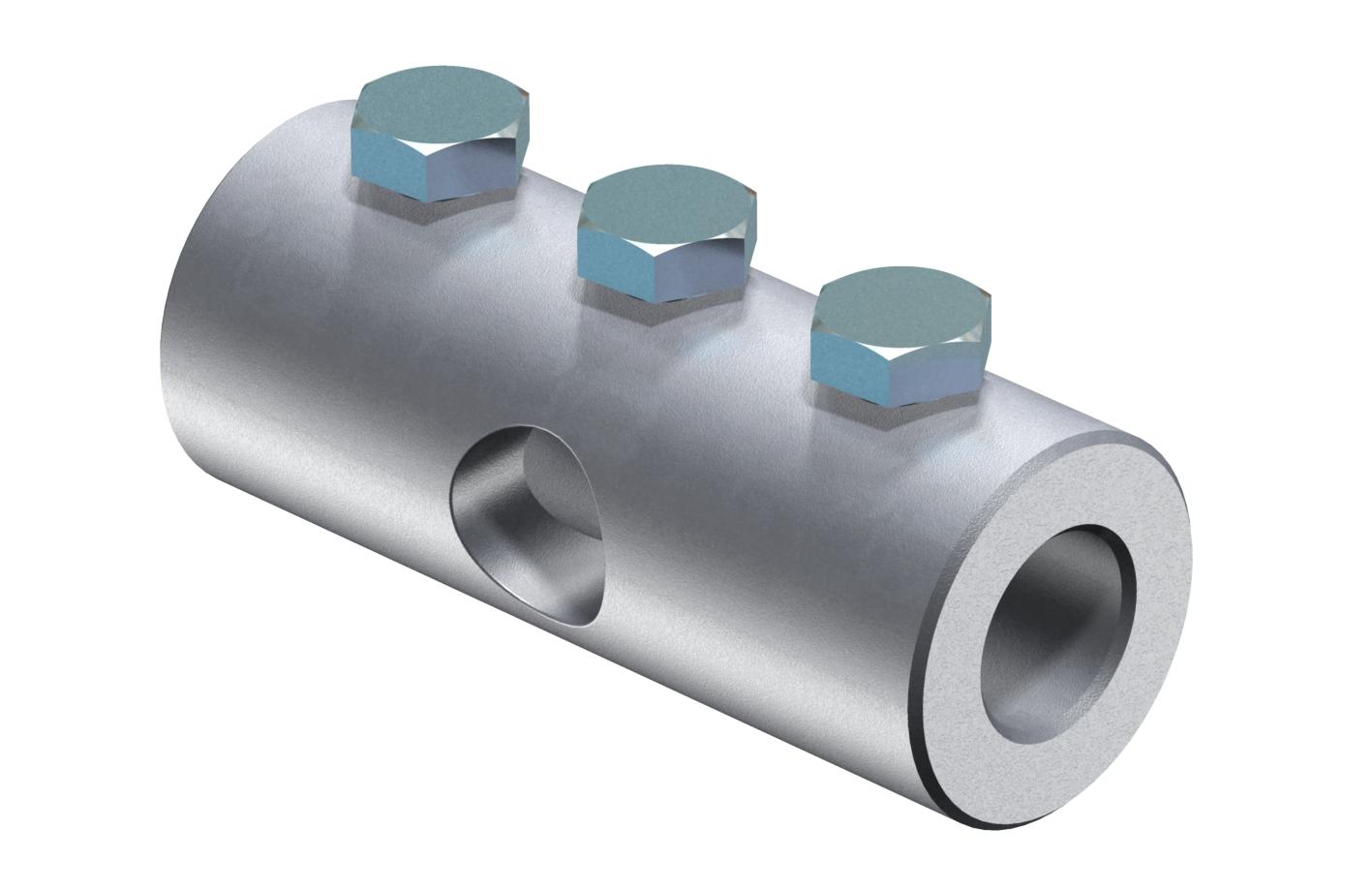

101 IK	40 mm	20 mm	100 mm	5408296	piece	10 piece
101 IK-16	30 mm	16 mm	100 mm	5408298	piece	10 piece

Downloads

Data sheet 101 IK-16 / 5408298 , 0.15MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Catalogue External lightning protection , 19.55MB , pdf

EU declaration of conformity 101 IK-16 / 5408298 , 0.06MB , pdf

Download

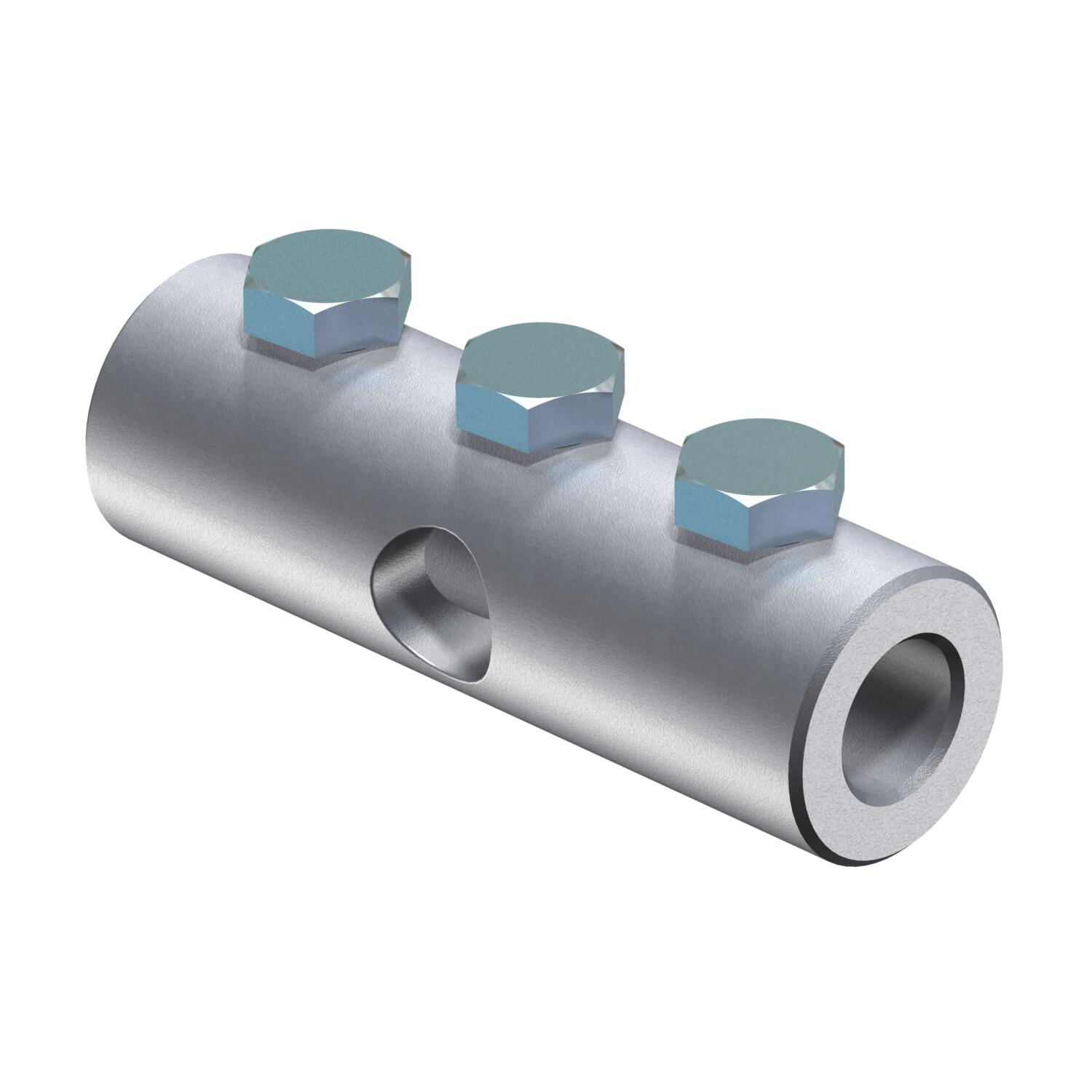

Product graphic 101 IK-16 / 5408298, 64.70 kB, jpg

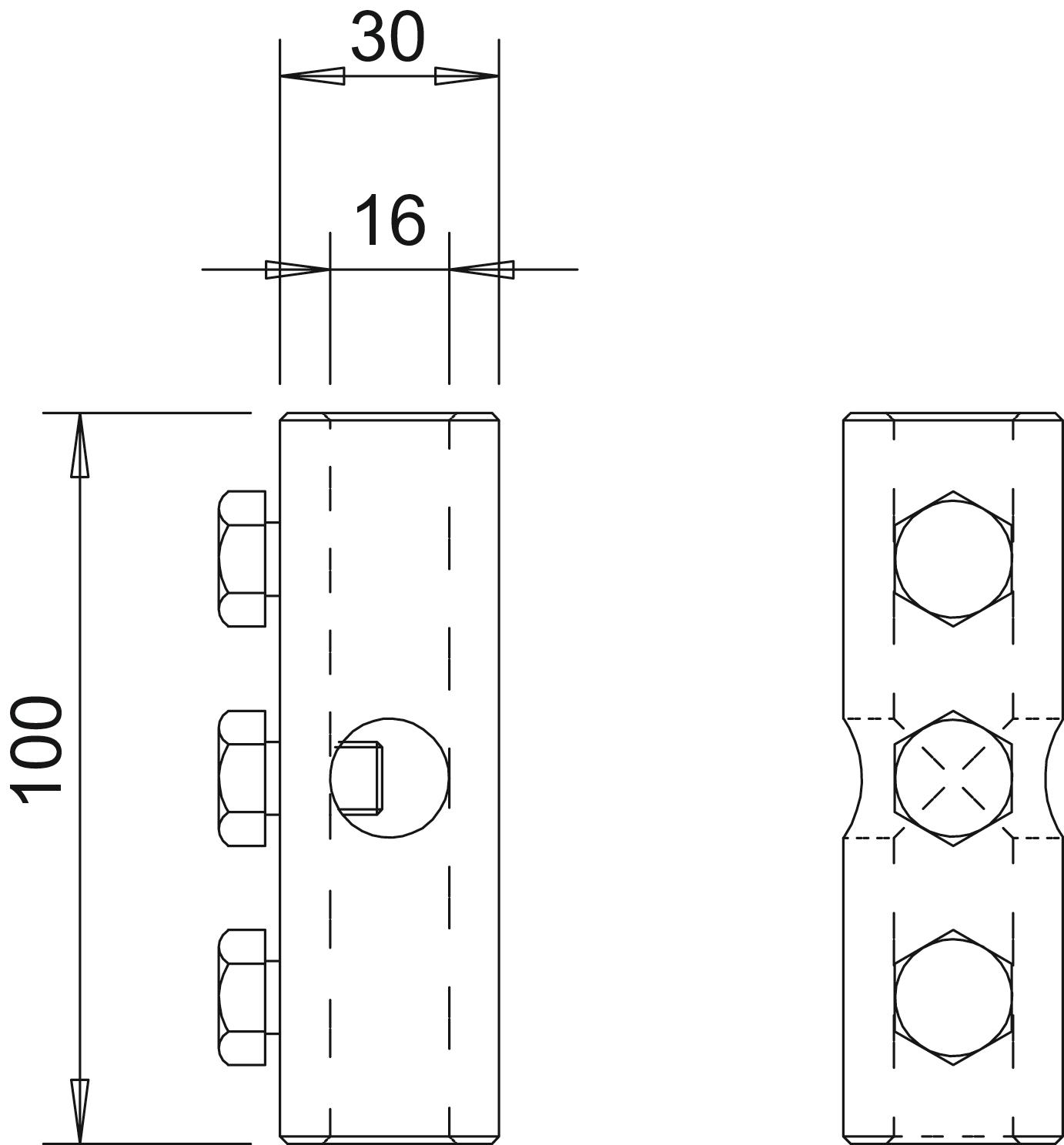

Scale drawing 101 IK-16 / 5408298, 72.71 kB, jpg

101 IK-16 / 5408298
