Large washer 22 | 22 | 6.6 | 2 | M6

morepic-1

morepic-2

Large washer

Item no. 6408703 | EAN 4012196712199

Item no. / Types

Dimension d min.

Dimension d max.

Dimension d

Dimension h

Thread

Product description

Product description

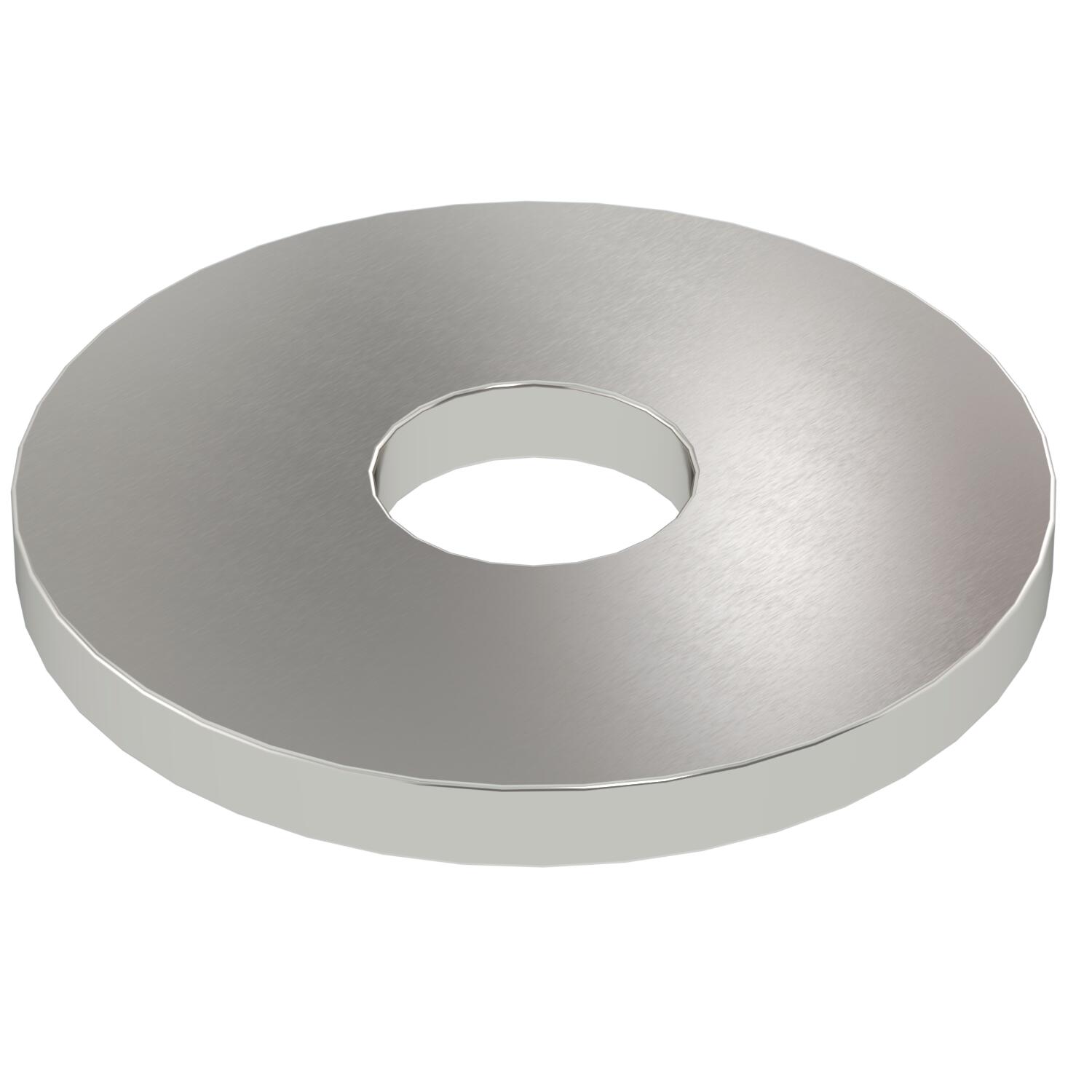

Washer of particularly large outer diameter.

Technical data

Technical data

Diameter	22 mm
Dimension	M6
Dimension d	6,6 mm
Dimension d max.	22 mm
Dimension d min.	22 mm
Dimension h	2 mm
External diameter	22 mm

Faceted	no
Hole diameter	6,6 mm
Hole shape	Round
Inner diameter	6,6 mm
Material	Stainless steel
Material thickness	2 mm
Thread	M6

All types

All types

Types	Dimension d min.	Dimension d max.	Dimension d	Dimension h	Thread	Item no.	Quantity	SSU
DIN440 7 A2	22 mm	22 mm	6.6 mm	2 mm	M6	6408703	piece	100 piece
DIN440 9 A2	28 mm	28 mm	9 mm	3 mm	M8	6408715	piece	100 piece
DIN440 11 A2	34 mm	34 mm	11 mm	3 mm	M10	6408732	piece	100 piece
DIN440 14 A2	44 mm	44 mm	13.5 mm	4 mm	M12	6408739	piece	50 piece

Downloads

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity DIN440 7 A2 / 6408703 , 0.06MB , pdf

Download

Mounting instructions General information on the mounting , 2.61MB , pdf

Product graphic DIN440 7 A2 / 6408703, 64.53 kB, jpg

Scale drawing DIN440 7 A2 / 6408703, 59.05 kB, jpg

DIN440 7 A2 / 6408703

6408703_KSTP1.stp, 15.56 kB

Unterlegscheibe-DIN440 7 A2.rfa, 556.00 kB
