Large washer F

Item no. 6408702 | EAN 4012196479955

Product description

Product description

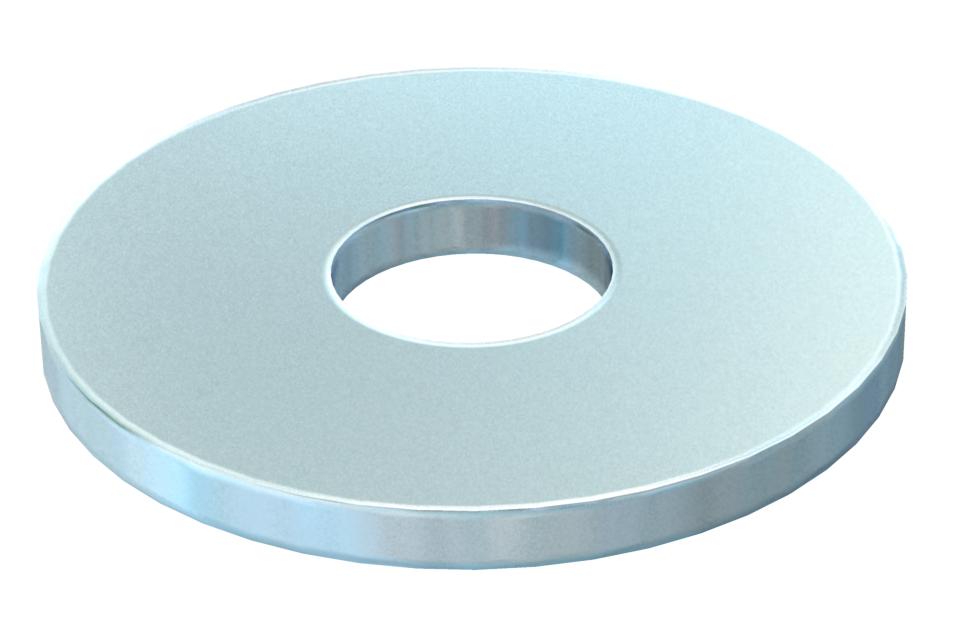

Washer of particularly large outer diameter.
  • Communautés Européennes, EC declaration of conformity according to EC directives

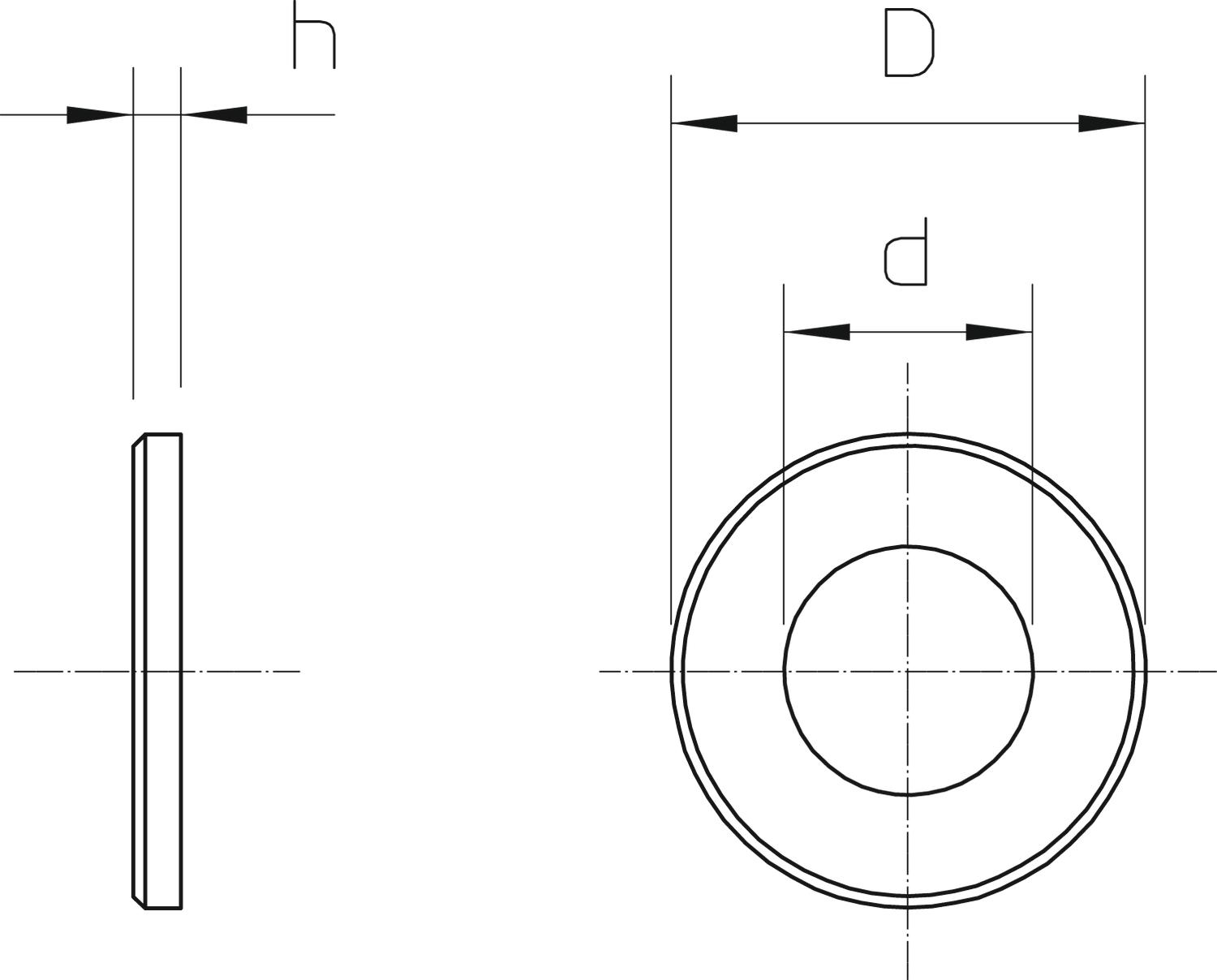

Technical data

Technical data

Diameter 22 mm
Dimension M6
Dimension d 6,6 mm
Dimension d max. 22 mm
Dimension d min. 22 mm
Dimension h 2 mm
External diameter 22 mm
Faceted no
Hardened no
Hole diameter 6,6 mm
Hole shape Round
Inner diameter 6,6 mm
Material Steel
Material thickness 2 mm
Plate thickness 0,08 in
Surface Hot galvanized
Thread M6
All types

All types

Types Dimension d min. Dimension d max. Dimension d Dimension h Thread Item no. Quantity SSU
DIN440 7 F 22 mm 22 mm 6.6 mm 2 mm M6 6408702
100 piece
DIN440 9 F 28 mm 28 mm 9 mm 3 mm M8 6408710
100 piece
DIN440 11 F 34 mm 34 mm 11 mm 3 mm M10 6408729
100 piece
DIN440 14 F 44 mm 44 mm 13.5 mm 4 mm M12 6408737
50 piece
