Large washer G 20 | 5.3 | 1.2 | M5

morepic-1

morepic-2

Large washer G

Item no. 3403041 | EAN 4012195867975

Item no. / Types

Dimension d min.

Dimension d

Dimension h

Thread

Product description

Product description

Washer of particularly large outer diameter.

Technical data

Technical data

Dimension	M5,Ø20mm
Dimension d	5,3 mm
Dimension d max.	20 mm
Dimension d min.	20 mm
Dimension h	1,2 mm

Material	Steel
Material thickness	1,2 mm
Plate thickness	0,05 in
Surface	Electrogalvanized
Thread	M5

All types

All types

Types	Dimension d min.	Dimension d	Dimension h	Thread	Item no.	Quantity	SSU
WS M4 G15 G	15 mm	4.3 mm	1.2 mm	M4	3403025	piece	100 piece
WS M5 G20 G	20 mm	5.3 mm	1.2 mm	M5	3403041	piece	100 piece
WS M6 G20 G	20 mm	6.4 mm	1.25 mm	M6	3403076	piece	100 piece
WS M6 G25 G	25 mm	6.4 mm	1.2 mm	M6	3403084	piece	100 piece
WS M6 G30 G	30 mm	6.4 mm	1.3 mm	M6	3403092	piece	100 piece
WS M6 G40 G	40 mm	6.4 mm	1.5 mm	M6	3403099	piece	100 piece
WS M8 G20 G	20 mm	8.4 mm	1.25 mm	M8	3403122	piece	100 piece
WS M8 G25 G	25 mm	8.4 mm	1.2 mm	M8	3403130	piece	100 piece
WS M8 G40 G	40 mm	8.4 mm	2.5 mm	M8	3403140	piece	100 piece
WS M10 G30 G	30 mm	10.5 mm	1.5 mm	M10	3403165	piece	100 piece

Downloads

Data sheet WS M5 G20 G / 3403041 , 0.10MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

EU declaration of conformity WS M5 G20 G / 3403041 , 0.06MB , pdf

Download

REACH Declaration of conformity WS M5 G20 G / 3403041 , 0.12MB , pdf

Download

RoHS Declaration of conformity WS M5 G20 G / 3403041 , 0.12MB , pdf

Download

Product graphic WS M5 G20 G / 3403041, 16.90 kB, jpg

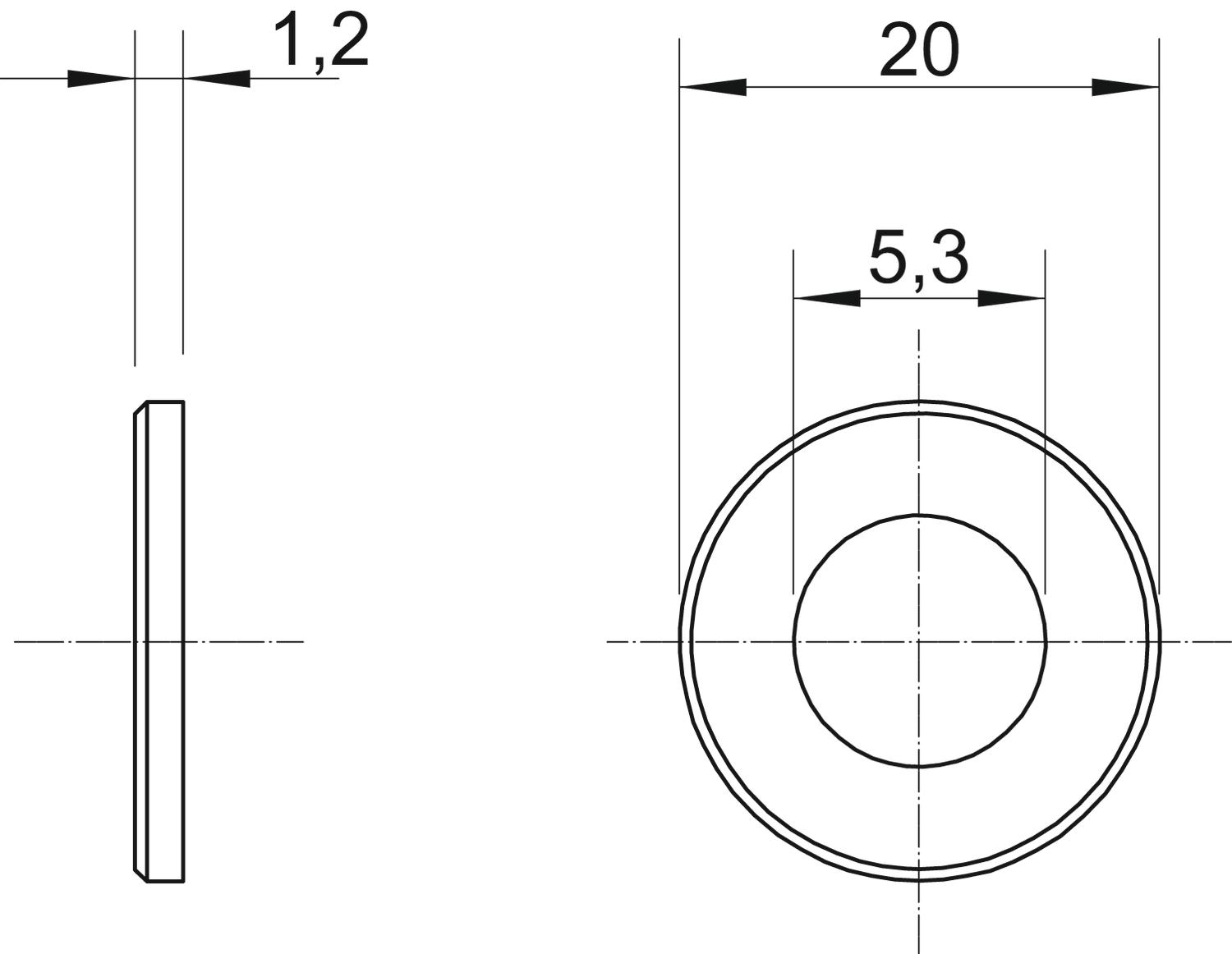

Scale drawing WS M5 G20 G / 3403041, 61.95 kB, jpg
