Large washer G 20 | 8.4 | 1.25 | M8

morepic-1

morepic-2

Large washer G

Item no. 3403122 | EAN 4012195868217

Item no. / Types

Dimension d min.

Dimension d

Dimension h

Thread

Product description

Product description

Washer of particularly large outer diameter.

Technical data

Technical data

Dimension	M8,Ø20mm
Material	Steel
Material thickness	1,5 mm

Plate thickness	0,06 in
Surface	Electrogalvanized
Thread	M8

Dimensions

Dimension d	8,4 mm
Dimension d max.	20 mm

Dimension d min.	20 mm
Dimension h	1,25 mm

All types

All types

Types	Dimension d min.	Dimension d	Dimension h	Thread	Item no.	Quantity	SSU
WS M4 G15 G	15 mm	4.3 mm	1.2 mm	M4	3403025	piece	100 piece
WS M5 G20 G	20 mm	5.3 mm	1.2 mm	M5	3403041	piece	100 piece
WS M6 G20 G	20 mm	6.4 mm	1.25 mm	M6	3403076	piece	100 piece
WS M6 G25 G	25 mm	6.4 mm	1.2 mm	M6	3403084	piece	100 piece
WS M6 G30 G	30 mm	6.4 mm	1.3 mm	M6	3403092	piece	100 piece
WS M6 G40 G	40 mm	6.4 mm	1.5 mm	M6	3403099	piece	100 piece
WS M8 G20 G	20 mm	8.4 mm	1.25 mm	M8	3403122	piece	100 piece
WS M8 G25 G	25 mm	8.4 mm	1.2 mm	M8	3403130	piece	100 piece
WS M8 G40 G	40 mm	8.4 mm	2.5 mm	M8	3403140	piece	100 piece
WS M10 G30 G	30 mm	10.5 mm	1.5 mm	M10	3403165	piece	100 piece

Downloads

Data sheet WS M8 G20 G / 3403122 , 0.13MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

Declaration of conformity WS M8 G20 G / 3403122 , 0.06MB , pdf

Download

REACH Declaration of conformity WS M8 G20 G / 3403122 , 0.12MB , pdf

Download

RoHS Declaration of conformity WS M8 G20 G / 3403122 , 0.12MB , pdf

Download

Product graphic WS M8 G20 G / 3403122, 16.90 kB, jpg

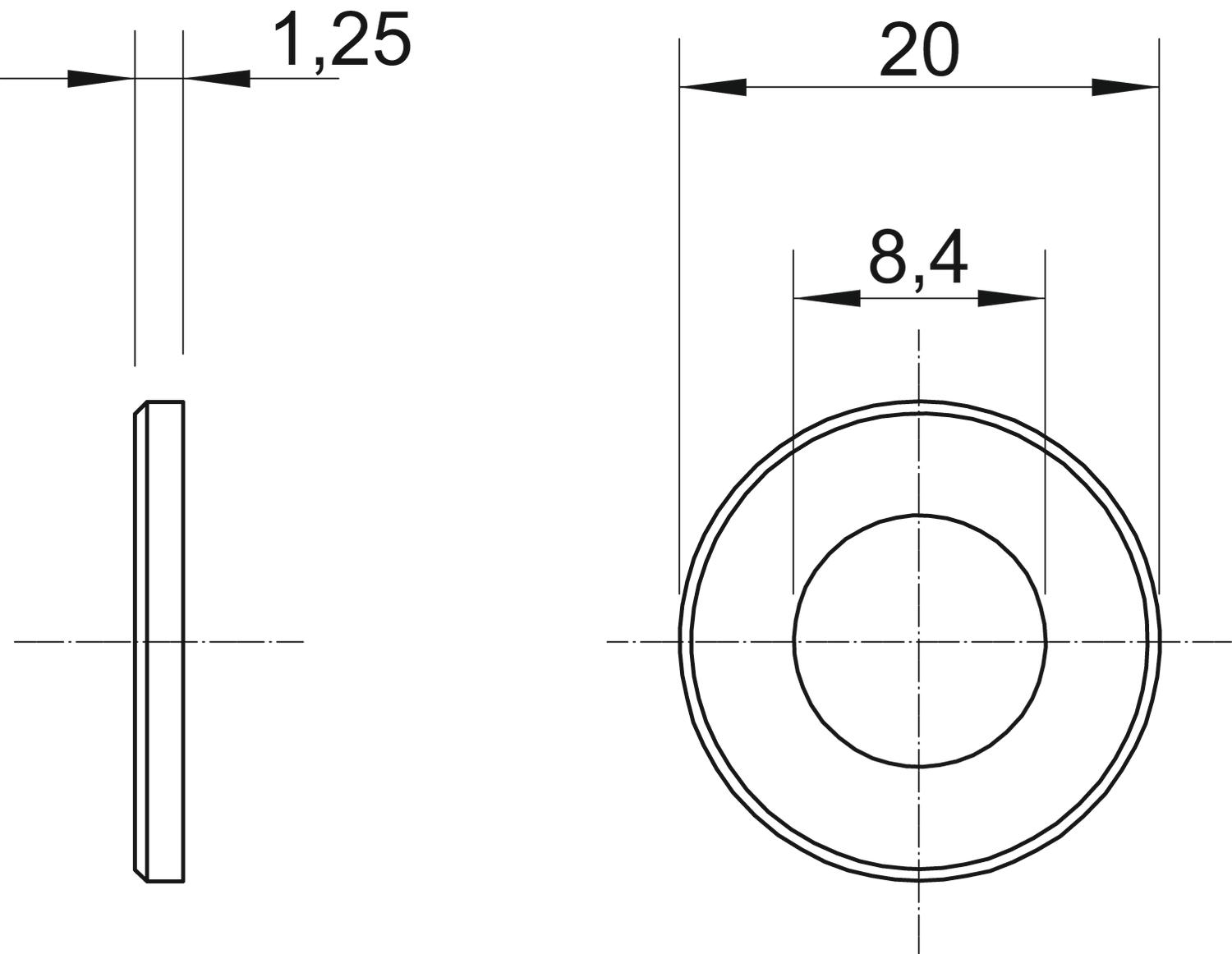

Scale drawing WS M8 G20 G / 3403122, 62.77 kB, jpg
