Large washer steel 40 | 8.4 | 2.5 | M8

Large washer steel

Item no. 3403140 | EAN 4012196849543

Item no. / Types

Dimension d min.

Dimension d

Dimension h

Thread

Back to overview

Product description

Product description

Washer of particularly large outer diameter.

Technical data

Technical data

Dimension	M8,Ø40mm
Dimension d	8,4 mm
Dimension d max.	40 mm
Dimension d min.	40 mm

Dimension h	2,5 mm
Material	Steel
Surface	Electrogalvanized
Thread	M8

All types

All types

Types	Dimension d min.	Dimension d	Dimension h	Thread	Item no.	Quantity	SSU
WS M4 G15 G	15 mm	4.3 mm	1.2 mm	M4	3403025	piece	100 piece
WS M5 G20 G	20 mm	5.3 mm	1.2 mm	M5	3403041	piece	100 piece
WS M6 G20 G	20 mm	6.4 mm	1.25 mm	M6	3403076	piece	100 piece
WS M6 G25 G	25 mm	6.4 mm	1.2 mm	M6	3403084	piece	100 piece
WS M6 G30 G	30 mm	6.4 mm	1.3 mm	M6	3403092	piece	100 piece
WS M6 G40 G	40 mm	6.4 mm	1.5 mm	M6	3403099	piece	100 piece
WS M8 G20 G	20 mm	8.4 mm	1.25 mm	M8	3403122	piece	100 piece
WS M8 G25 G	25 mm	8.4 mm	1.2 mm	M8	3403130	piece	100 piece
WS M8 G40 G	40 mm	8.4 mm	2.5 mm	M8	3403140	piece	100 piece
WS M10 G30 G	30 mm	10.5 mm	1.5 mm	M10	3403165	piece	100 piece

Downloads

Data sheet WS M8 G40 G / 3403140 , 0.19MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

REACH Declaration of conformity WS M8 G40 G / 3403140 , 0.12MB , pdf

Download

RoHS Declaration of conformity WS M8 G40 G / 3403140 , 0.12MB , pdf

Download

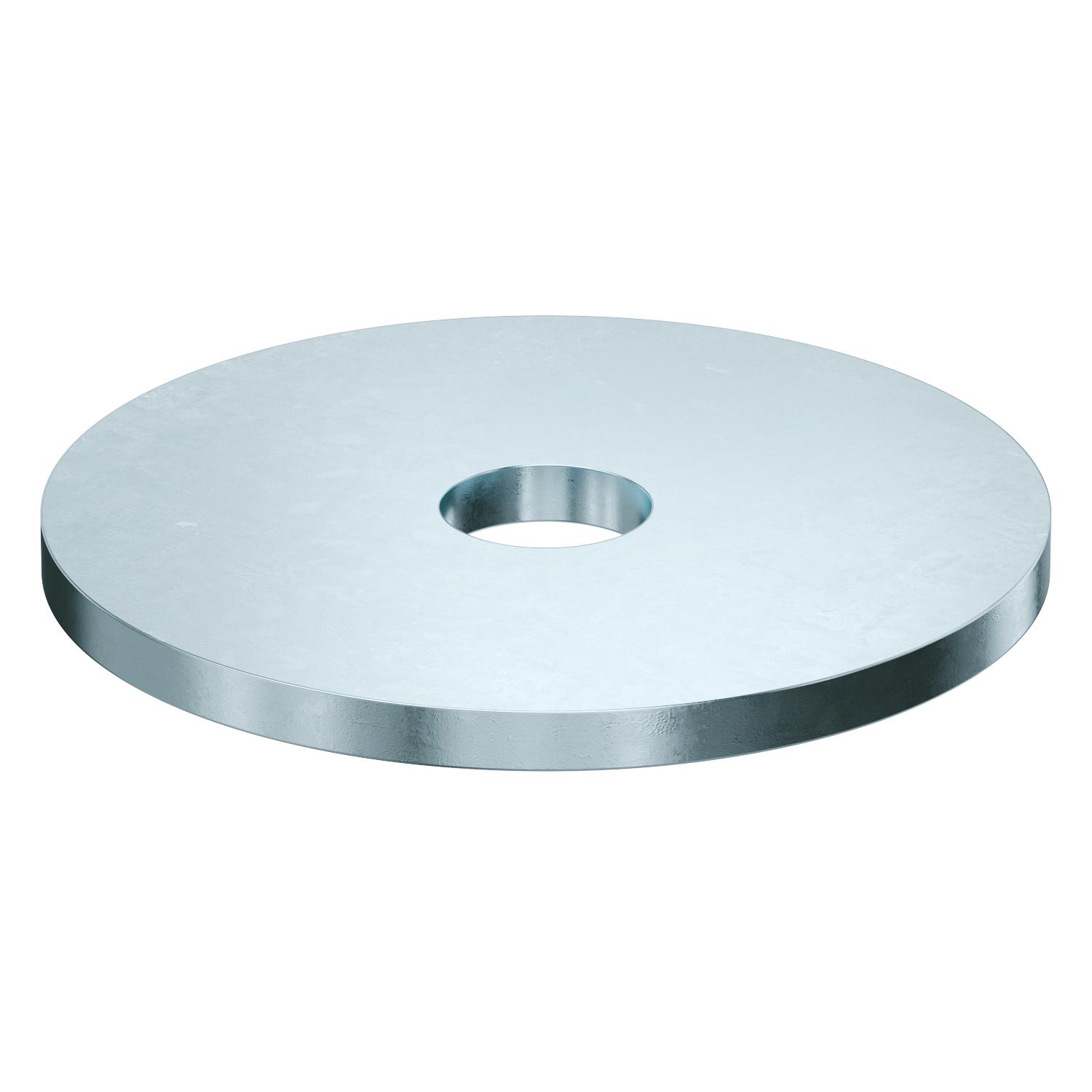

Product graphic WS M8 G40 G / 3403140, 55.66 kB, jpg

Scale drawing WS M8 G40 G / 3403140, 62.54 kB, jpg

WS M8 G40 G / 3403140

3403140_KSTP1.stp, 9.73 kB
