Lens head metal screw
Item no. 6049248 | EAN 4012196649273
- Product description
-

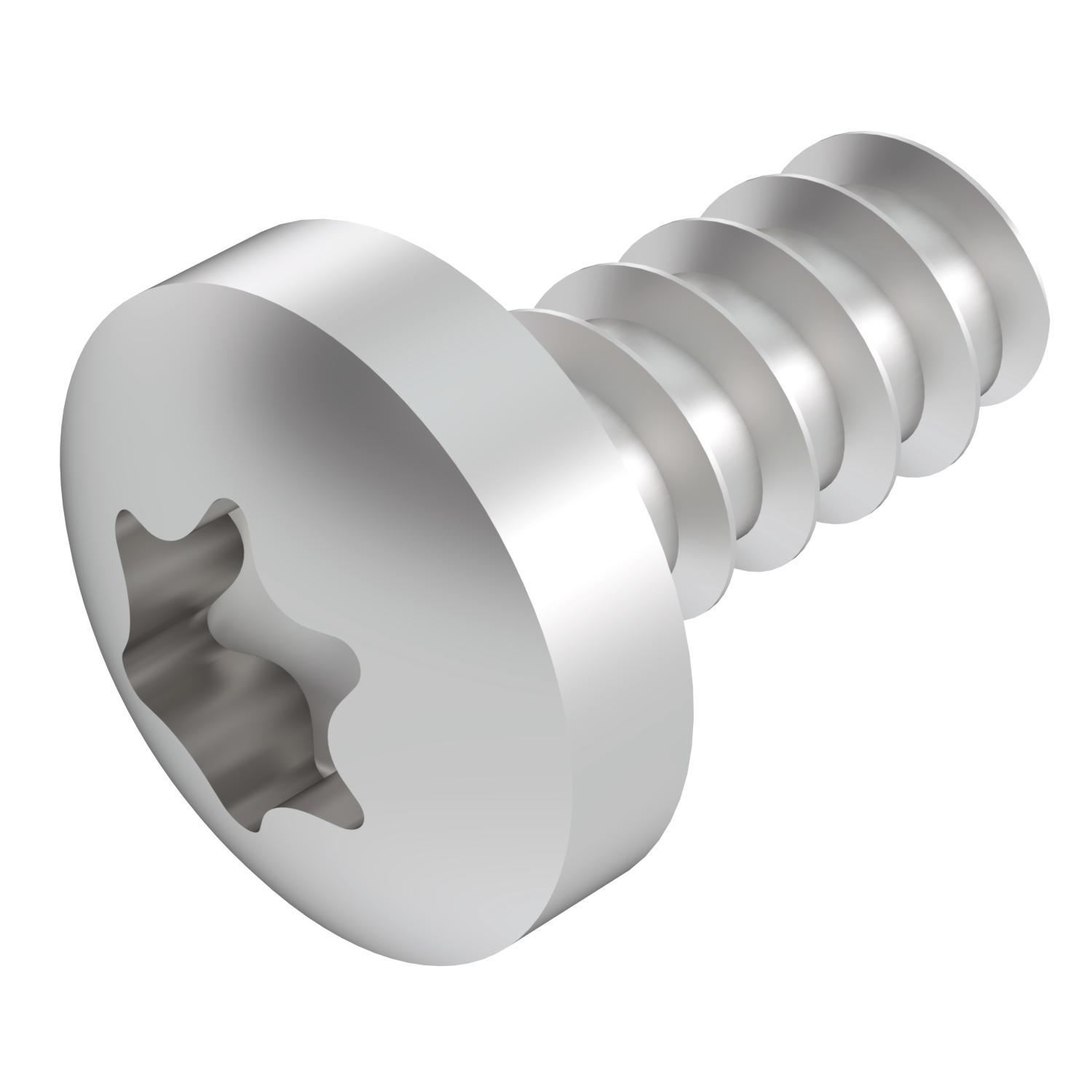

Product descriptionMetal screw with lens head according to shape F and Torx drive, according to DIN EN ISO 7049, to fasten protective panels to the Z supports for the walkable cable tray system.
-
- Technical data
-
Technical data

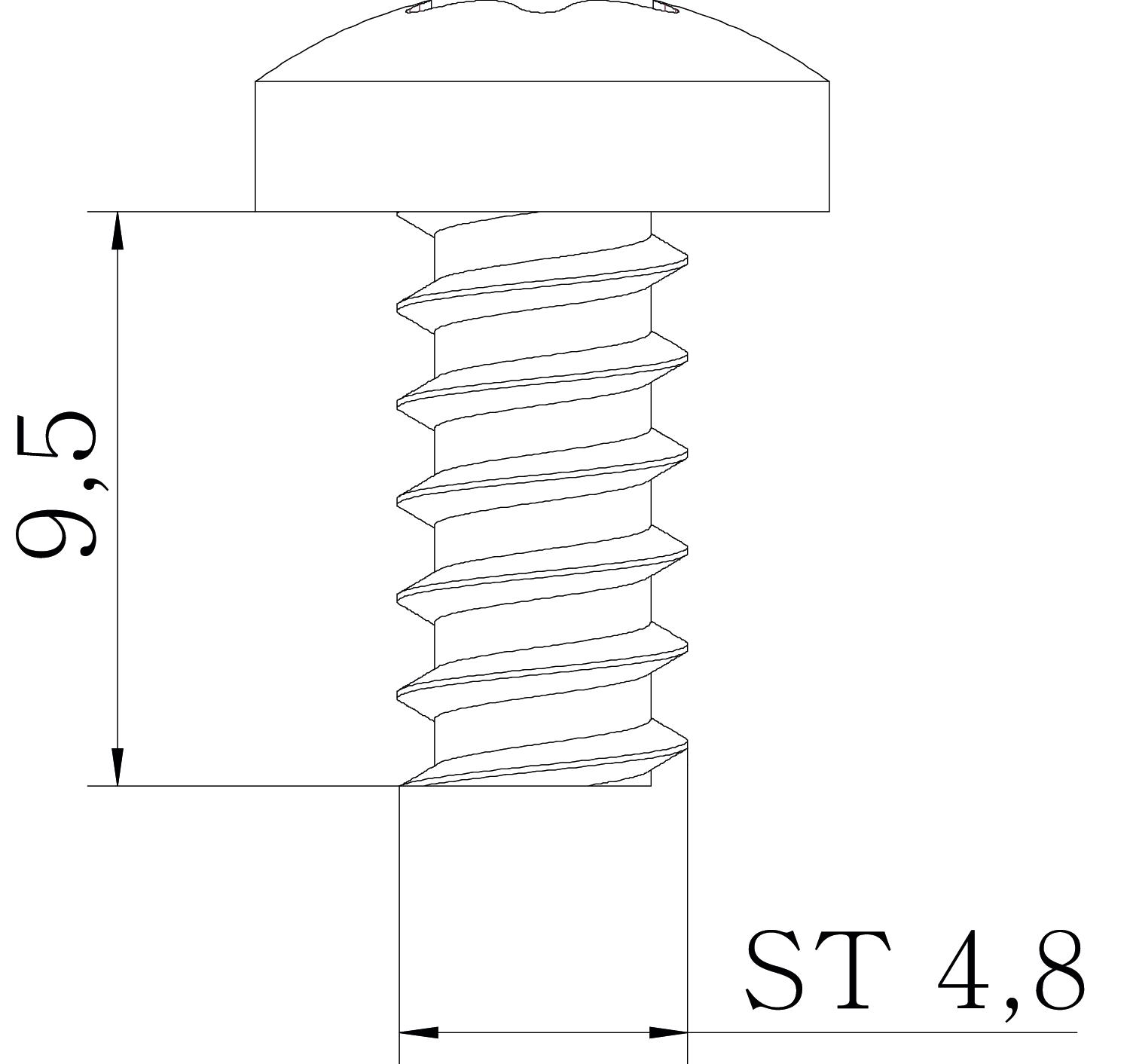

Colour zinc Dimension 4,8x9,5 Dimension 4,8x9,5 Dimension d 4,8 mm Dimension L 9,5 mm Fibre-glass reinforced no Halogen-free yes Head diameter 9,5 mm Head shape Rounded head Impact-resistant no Length 13,05 mm Material Steel Rustproof steel, pickled no Screw system Torx Surface Electrogalvanized Thread diameter ST 4,8 Thread length 9,5 mm Width 9,5 mm With nut no With washer no - All types
- Downloads
-
Data sheet SPHS 4,8x9,5 G / 6049248 , 0.17MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity SPHS 4,8x9,5 G / 6049248 , 0.13MB , pdfREACH Declaration of conformity SPHS 4,8x9,5 G / 6049248 , 0.12MB , pdfRoHS Declaration of conformity SPHS 4,8x9,5 G / 6049248 , 0.13MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
