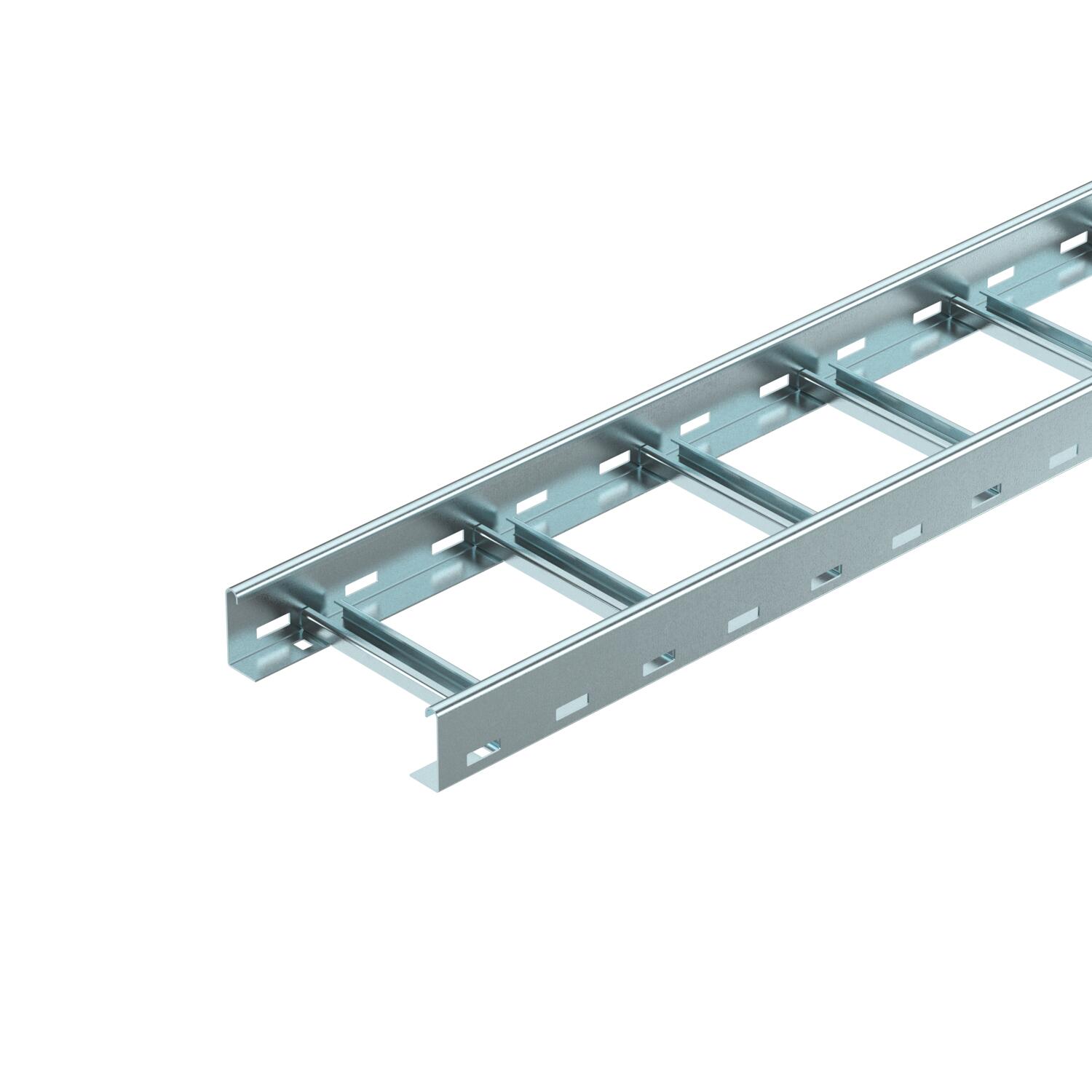

LG 60 cable ladder, 3 m VSF FS

Item no. 6207518 | EAN 4012196748747

3000 mm
1.5 mm
yes
Steel
Product description
Product description
Cable ladder for horizontal routing of cables. Can be used in the widths 200–400 mm as a standard support structure for the maintenance of electrical functionality according to DIN 4102 Part 12. Maintenance of electrical functionality classes E30 to E90. With riveted C profile rung, open in an upward direction.
  • Function maintenance class E30
  • Function maintenance class E60
  • Function maintenance class E90
Technical data

Technical data

Colour zinc
CO₂ Footprint (GWP) Cradle-to-Gate 7,8533 kg CO₂e / 1 Meter

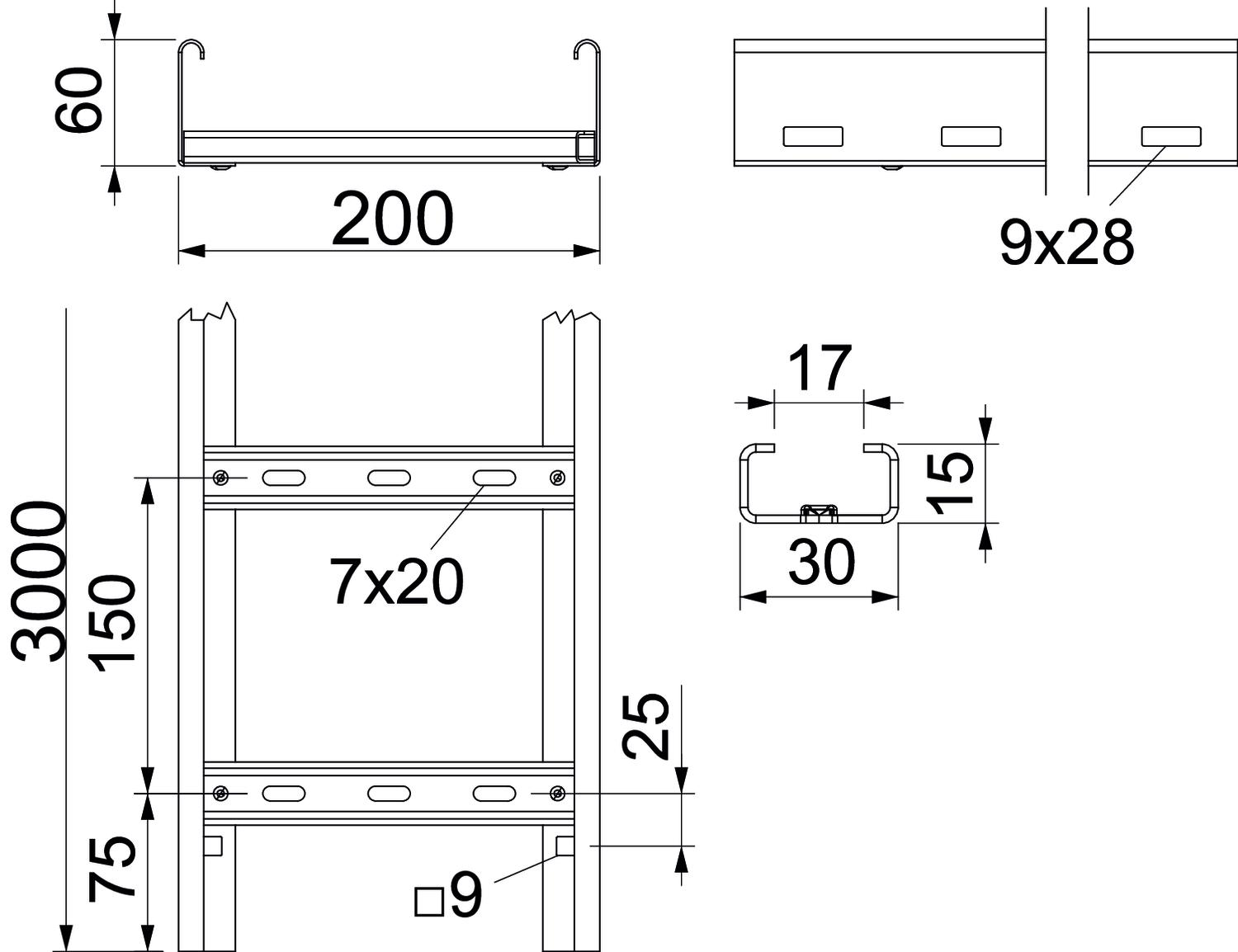

Dimension 60x200x3000
Dimension B 200 mm
Fastening of rung Blind riveted
Fire protection Maintenance of electrical function of standard support structure
Height 60 mm
Length 3000 mm
Maintain electrical functions yes
Material Steel
Rail thickness 1,5 mm
Rung distance 150 mm
Rung slot dimension 17,00
Rustproof steel, pickled no
Side perforation yes
Side rail version Profile (open)
Surface Strip galvanized
Usable cross-section 9800 mm²
Version of the rungs Profile perforated
Wide-span version no
Width 200 mm
All types

All types

Types Length Width Rail thickness Maintain electrical functions Material Surface Item no. Quantity SSU
LG 620 VSF 3 FS 3000 mm 200 mm 1.5 mm yes Steel Strip galvanized 6207518
3 m
LG 630 VSF 3 FS 3000 mm 300 mm 1.5 mm yes Steel Strip galvanized 6207519
3 m
LG 640 VSF 3 FS 3000 mm 400 mm 1.5 mm yes Steel Strip galvanized 6207520
3 m
LG 620 VSF 3 FT 3000 mm 200 mm 1.5 mm yes Steel Hot-dip galvanised 6207540
3 m
LG 630 VSF 3 FT 3000 mm 300 mm 1.5 mm yes Steel Hot-dip galvanised 6207541
3 m
LG 640 VSF 3 FT 3000 mm 400 mm 1.5 mm yes Steel Hot-dip galvanised 6207542
3 m
Accessories

System accessories

Products Types Item no. Quantity SSU
Protective cap 60 Protective cap 60 SKH 60 OR 6222537
40 Pair
Identification plate for maintenance of electrical function Identification plate for maintenance of electrical function KS-E DE 7205423
10 piece

Mounting accessories

Products Types Item no. Quantity SSU
External connector External connector AVL 60 FS 6208770
10 piece
Drop-out plate FT Drop-out plate FT LAB 20 FT 6220436
20 piece
