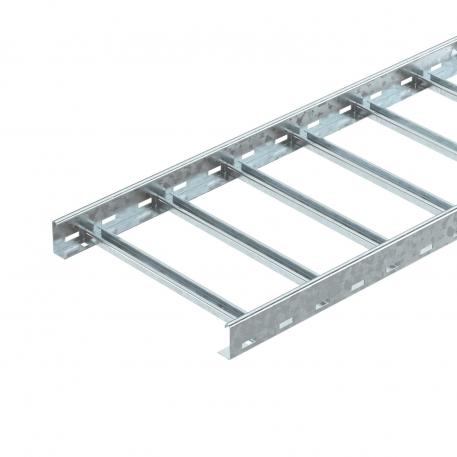

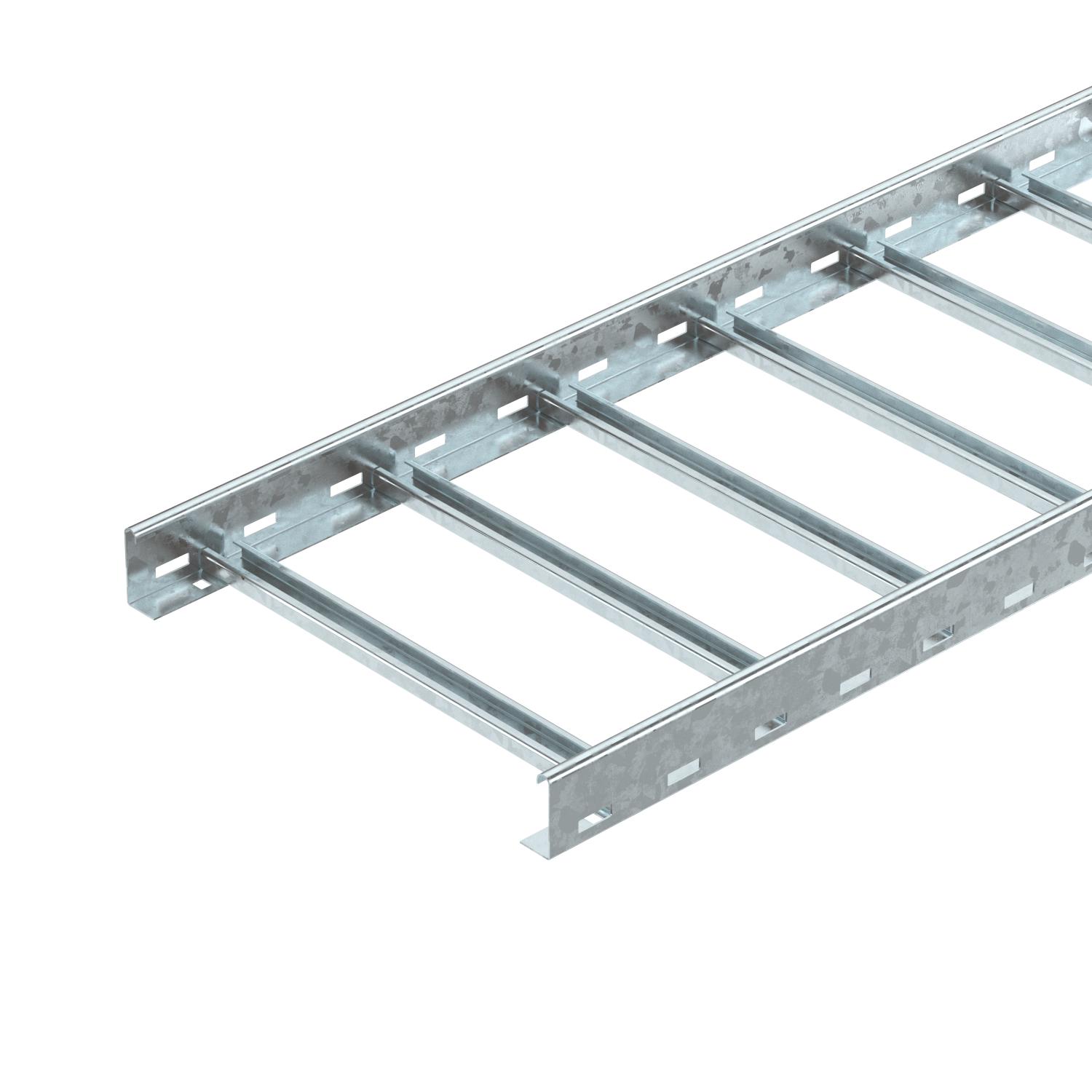

LG 60 cable ladder, 3 m VSF FT 3000 | 400 | 1.5 | yes | Steel | Hot-dip galvanised

LG 60 cable ladder, 3 m VSF FT

Item no. 6207542 | EAN 4012196748839

Item no. / Types

Length	3000 mm

Width

Rail thickness	1.5 mm

Maintain electrical functions	yes

Material	Steel

Surface

Product description

Product description

Cable ladder for horizontal routing of cables. Can be used in the widths 200–400 mm as a standard support structure for the maintenance of electrical functionality according to DIN 4102 Part 12. Maintenance of electrical functionality classes E30 to E90. With riveted C profile rung, open in an upward direction.

Technical data

Technical data

Colour	zinc
CO₂ Footprint (GWP) Cradle-to-Gate	10,0331 kg CO₂e / 1 Meter

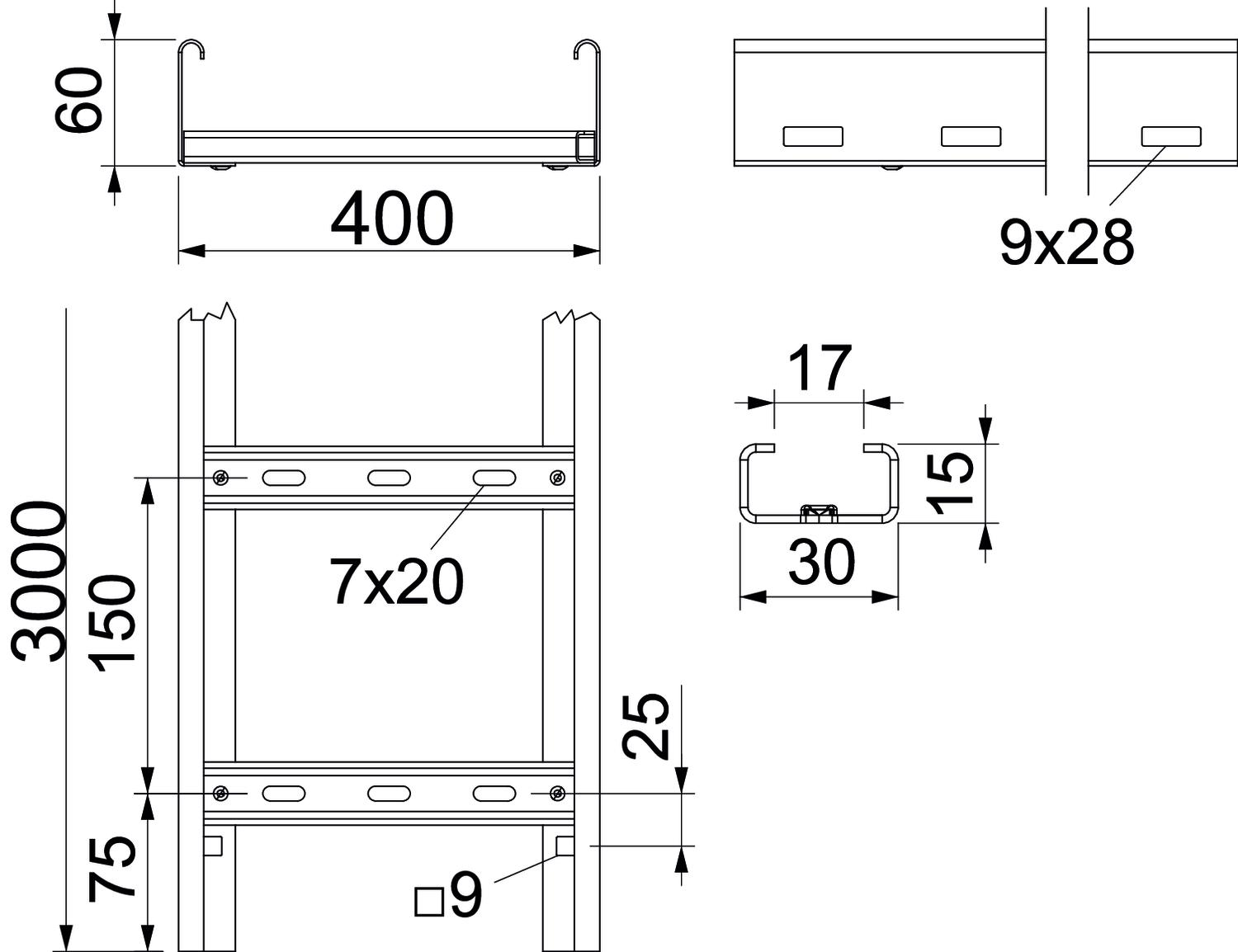

Dimension	60x400x3000
Dimension B	400 mm
Fastening of rung	Blind riveted
Fire protection	Maintenance of electrical function of standard support structure
Height	60 mm
Length	3000 mm
Maintain electrical functions	yes
Material	Steel
Rail thickness	1,5 mm

Rung distance	150 mm
Rung slot dimension	17,00
Rustproof steel, pickled	no
Side perforation	yes
Side rail version	Profile (open)
Surface	Hot-dip galvanised
Usable cross-section	19800 mm²
Version of the rungs	Profile perforated
Wide-span version	no
Width	400 mm

All types

All types

Types	Length	Width	Rail thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
LG 620 VSF 3 FS	3000 mm	200 mm	1.5 mm	yes	Steel	Strip galvanized	6207518	m	3 m
LG 630 VSF 3 FS	3000 mm	300 mm	1.5 mm	yes	Steel	Strip galvanized	6207519	m	3 m
LG 640 VSF 3 FS	3000 mm	400 mm	1.5 mm	yes	Steel	Strip galvanized	6207520	m	3 m
LG 620 VSF 3 FT	3000 mm	200 mm	1.5 mm	yes	Steel	Hot-dip galvanised	6207540	m	3 m
LG 630 VSF 3 FT	3000 mm	300 mm	1.5 mm	yes	Steel	Hot-dip galvanised	6207541	m	3 m
LG 640 VSF 3 FT	3000 mm	400 mm	1.5 mm	yes	Steel	Hot-dip galvanised	6207542	m	3 m

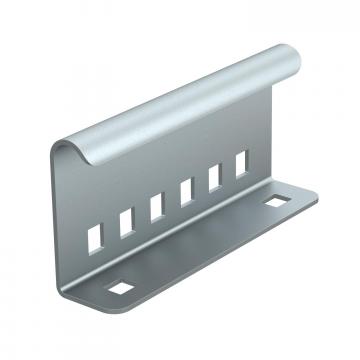

Accessories
