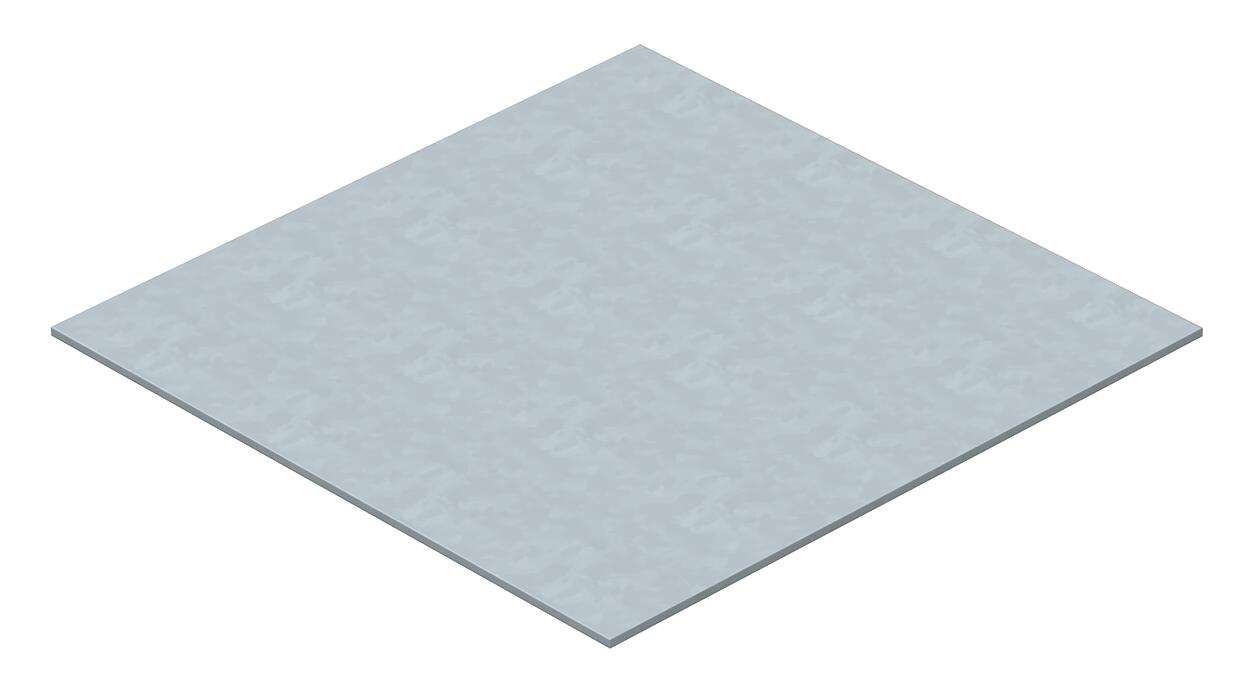

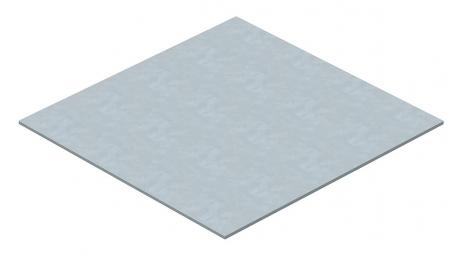

Lid blind plate for rectangular mounting opening
Item no. 7407180 | EAN 4012195110842
- Product description
-
Product description
Cover blanking plate for flushfloor closing of a rectangular mounting opening in a DUG mounting lid. The size of the mounting opening can be determined from the type designation.
-
- Technical data
-
Technical data

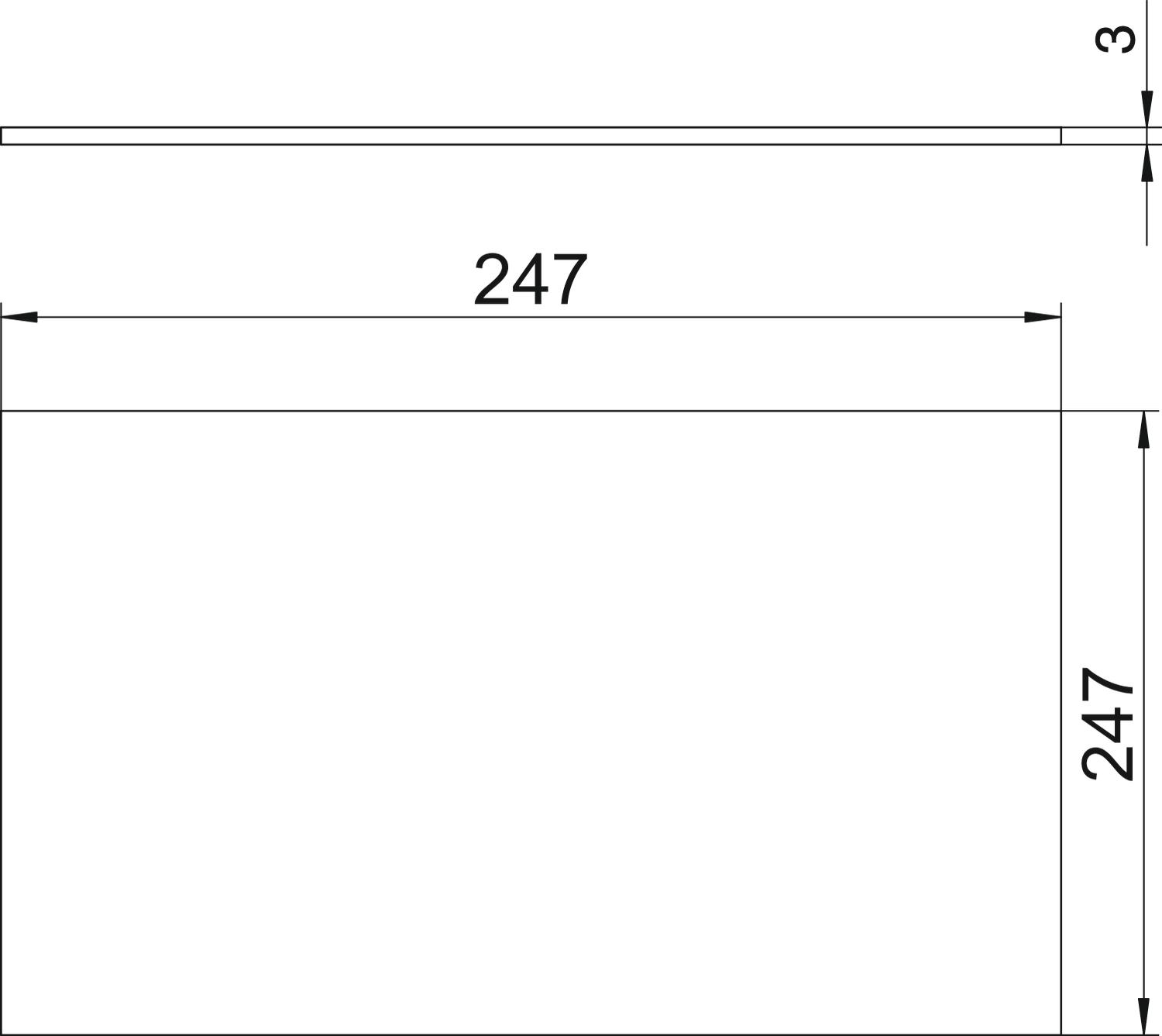

Dimension 247x247x3 Dimension A 247 mm Dimension B 247 mm Heavy-duty version no Installation opening for on-floor tank no Material Steel Material thickness 3 mm Mounting opening Without Mounting opening cover yes Nominal size for device installation units 9 Seal installation option no Suitable for screed-covered underfloor ducts yes Suitable for screed-flush closed underfloor ducts no Surface Strip galvanized - All types
- Downloads
-
Data sheet DUG B 9 / 7407180 , 0.16MB , pdfDeclaration of conformity DUG B 9 / 7407180 , 0.13MB , pdfMounting instructions EÜK screed-covered duct system generation 3 , 76.05MB , pdfNo invitation to tender text is available for this product.
