Lid butt seal

morepic-1

morepic-2

Lid butt seal

Item no. 7403845 | EAN 4012195699637

Product description

Product description

For underlaying the joints.

Technical data

Technical data

Accessories	yes
Cover fastening, locking	no
Decouplable	no
Floor care	Dry
Floor plate	no
Installation opening for on-floor tank	no
Material	Steel
Minimum screed height	85
Mounting opening	Without
Mounting opening cover	no
Removable cover	no
Seal installation option	no

Separating retainer fastening	Plug
Spare part	yes
Suitable for expansion joint	no
Suitable for flushfloor, open underfloor trunking	yes
Suitable for screed-covered underfloor ducts	no
Suitable for screed-flush closed underfloor ducts	no
Surface	Strip galvanized
With connection opening	no
With equipotential bonding	no
With overhang	no
With separating retainer	no

All types

All types

Types	Width	Item no.	Quantity	SSU
OKB DSD 250		7403845	piece	10 piece

Downloads

Data sheet OKB DSD 250 / 7403845 , 0.17MB , pdf

Guide Fire protection in electrical engineering – A guide to fireproof building installations , 2.10MB , pdf

Flyer Flyer OKB brush bar trunking system , 0.20MB , pdf

Catalogue Floor installation systems and Underfloor applications , 42.28MB , pdf

Mounting instructions Mounting instructions OKB-U and OKB-E , 1.30MB , pdf

Download

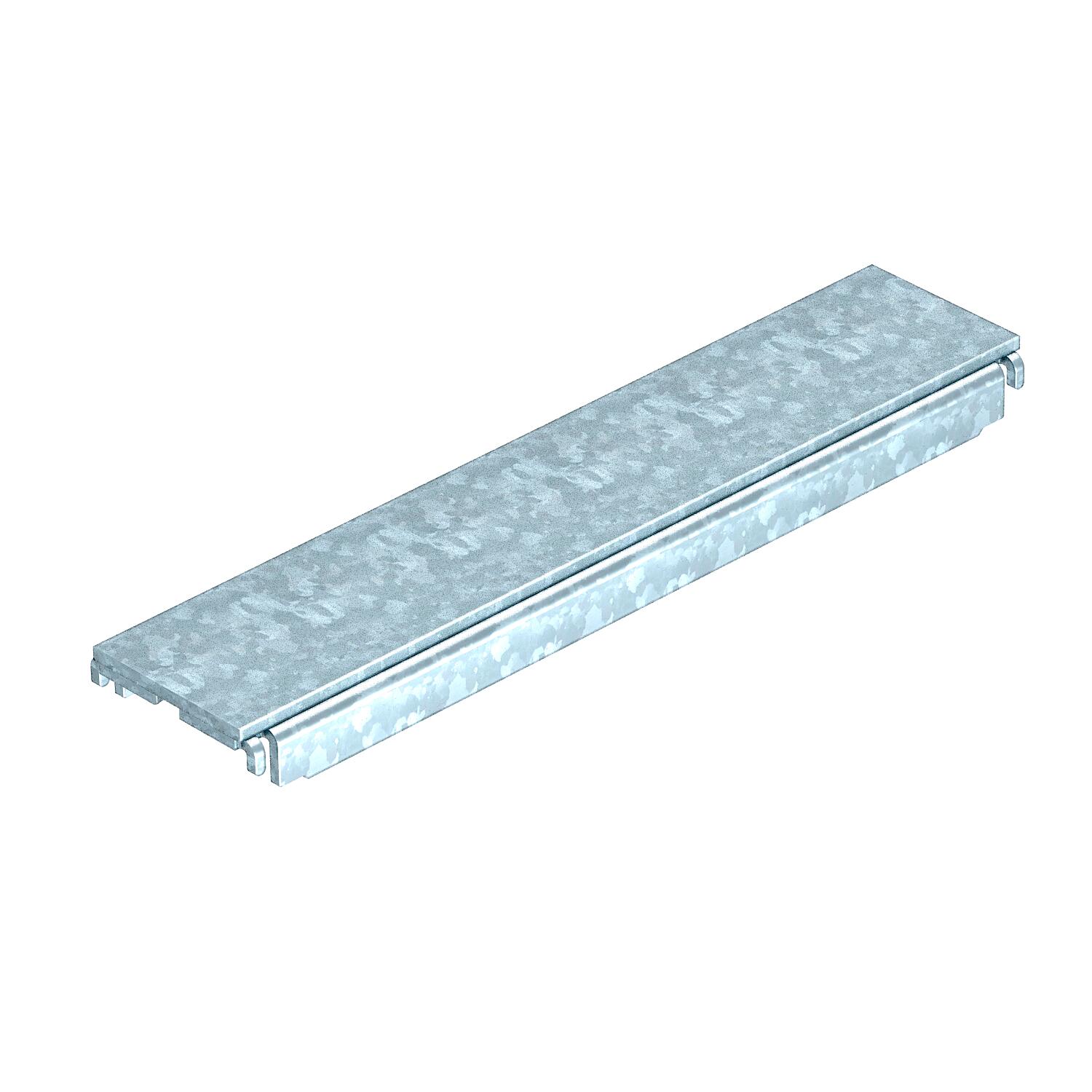

Product graphic OKB DSD 250 / 7403845, 106.48 kB, jpg

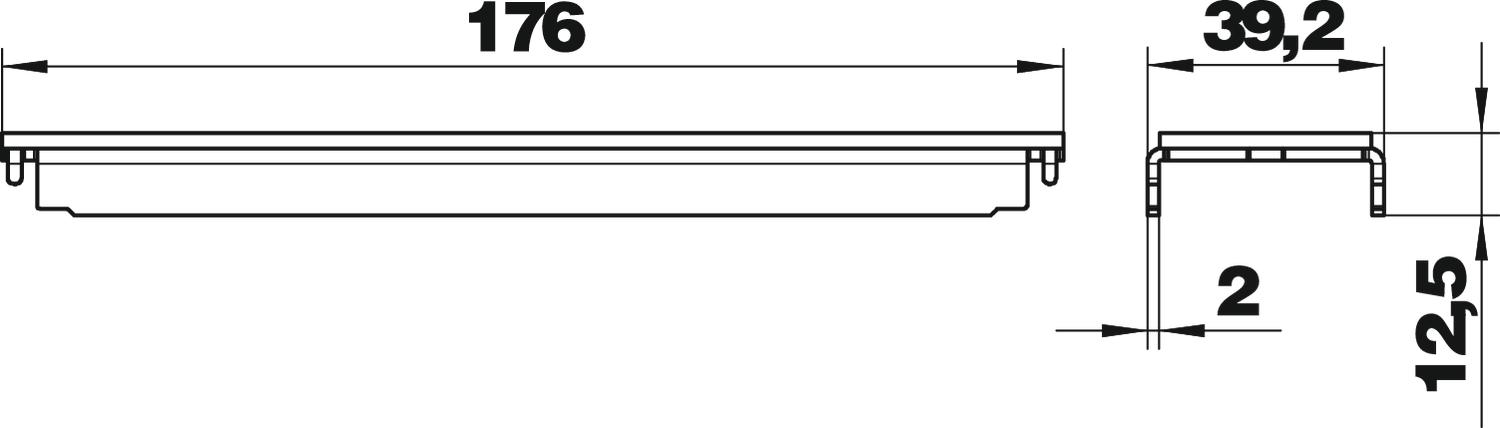

Scale drawing OKB DSD 250 / 7403845, 30.53 kB, jpg

No invitation to tender text is available for this product.
