Lid butt support for trunking width 400, 500 and 600 mm 400 | 400
morepic-1 morepic-2

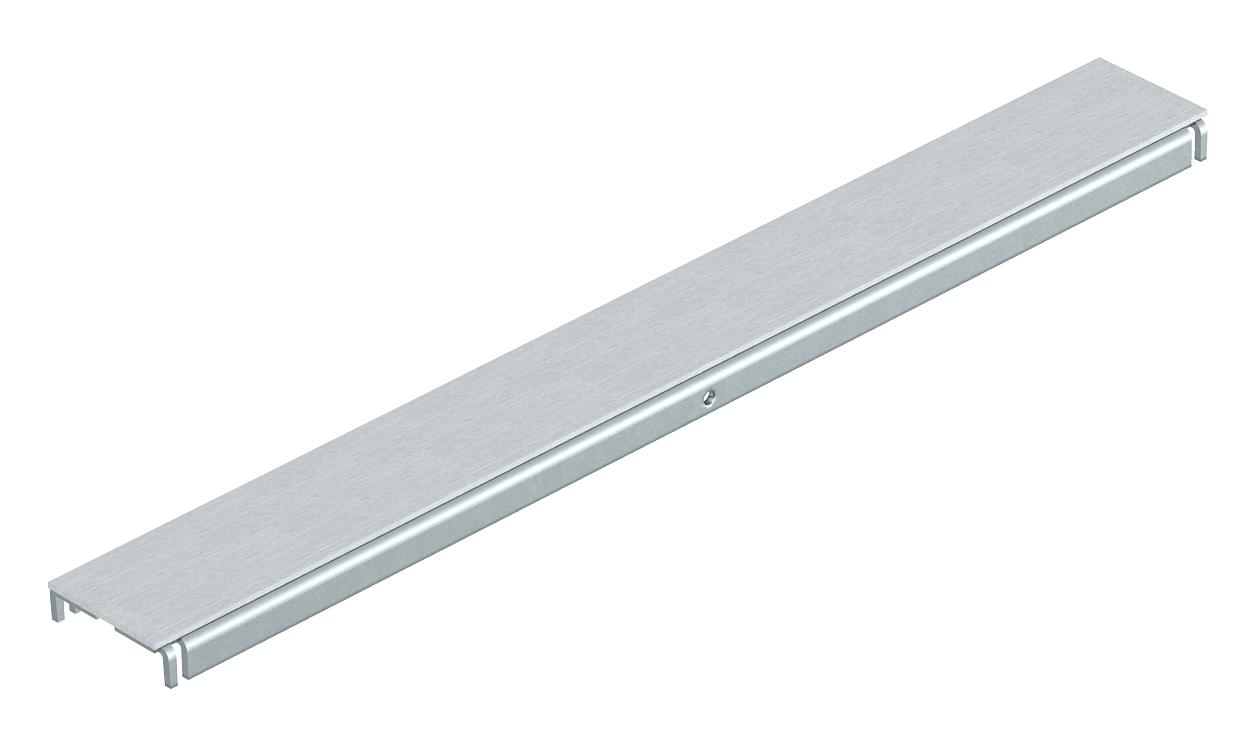

Lid butt support for trunking width 400, 500 and 600 mm

Item no. 7424360 | EAN 4012195244073

Product description

Product description

To support and seal the joints for nominal trunking widths of 400, 500 or 600. With installation option for a centrally arranged levelling unit.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Accessories yes
Centre support no
Material Steel
Minimum screed height 40
Spare part no
Surface Strip galvanized

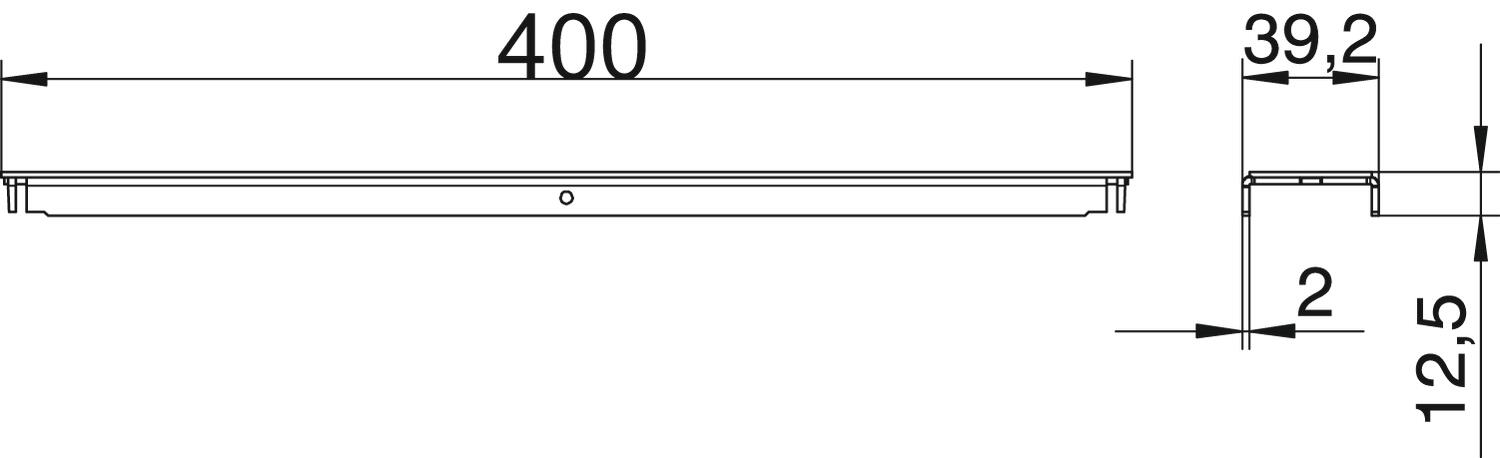

Dimensions

Dimension A 400 mm
Width 400 mm
All types

All types

Types Width Dimension A Item no. Quantity SSU
DSU2 400 400 mm 400 mm 7424360
1 piece
DSU2 500 500 mm 500 mm 7424362
1 piece
DSU2 600 600 mm 600 mm 7424364
1 piece
Downloads

Download

Download

Declaration of conformity DSU2 400 / 7424360 , 0.13MB , pdf
Download

Download

Download

No invitation to tender text is available for this product.
