Lightning barrier FLD

Item no. 5098940 | EAN 4012195578567

5098940 / FLD 60T S
160 V
230 V
Product description
Product description

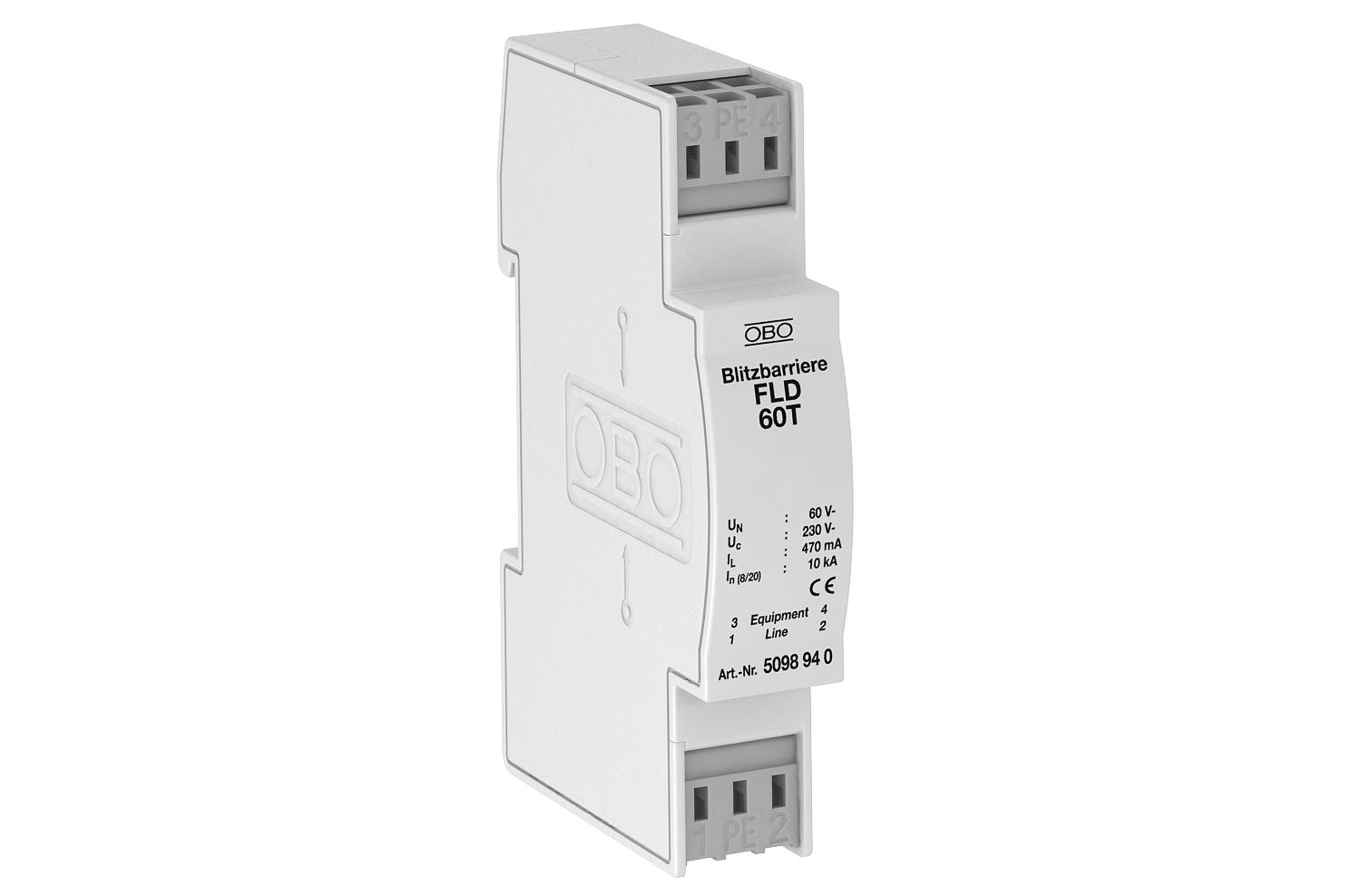

The type VF FLD 60T S lightning barrier is a surge arrester/fine power protection type 3 to DIN EN 61643-11 for protecting end devices from transient surge voltages.

The protection devices are used for mounting on DIN profile rails near to devices to be protected and are designed for DC and AC systems.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Installation electrotechnical expertise
Technical data

Technical data

Conductor cross-section, rigid (single-wire/multiwire), max. 2,5 mm²
Conductor cross-section, rigid (single-wire/multiwire), min. 0,14 mm²
Dimension 230V
Explosion-tested version no
Inductivity 100 μH
Installation type DIN rail 35 mm
Lightning protection zone LPZ 2→3
Maximum continuous voltage AC 160 V
Maximum continuous voltage DC 230 V
Network form Other
Nominal discharge current (8/20 µs) 10 kA
Nominal voltage AC (50/60 Hz) 60 V
OBO_Nominal load current (input/output terminal) 0,47 A
Operating temperature, max. 80 °C
Operating temperature, min. -40 °C
Protection level wire-earth <500 V
Protection level wire-wire <300 V
Protection rating IP20
Remote signalling no
Response time <1 ns
Signalling on device Without
All types

All types

Types Maximum continuous voltage AC Maximum continuous voltage DC Item no. Quantity SSU
FLD 60T S 160 V 230 V 5098940
1 piece
