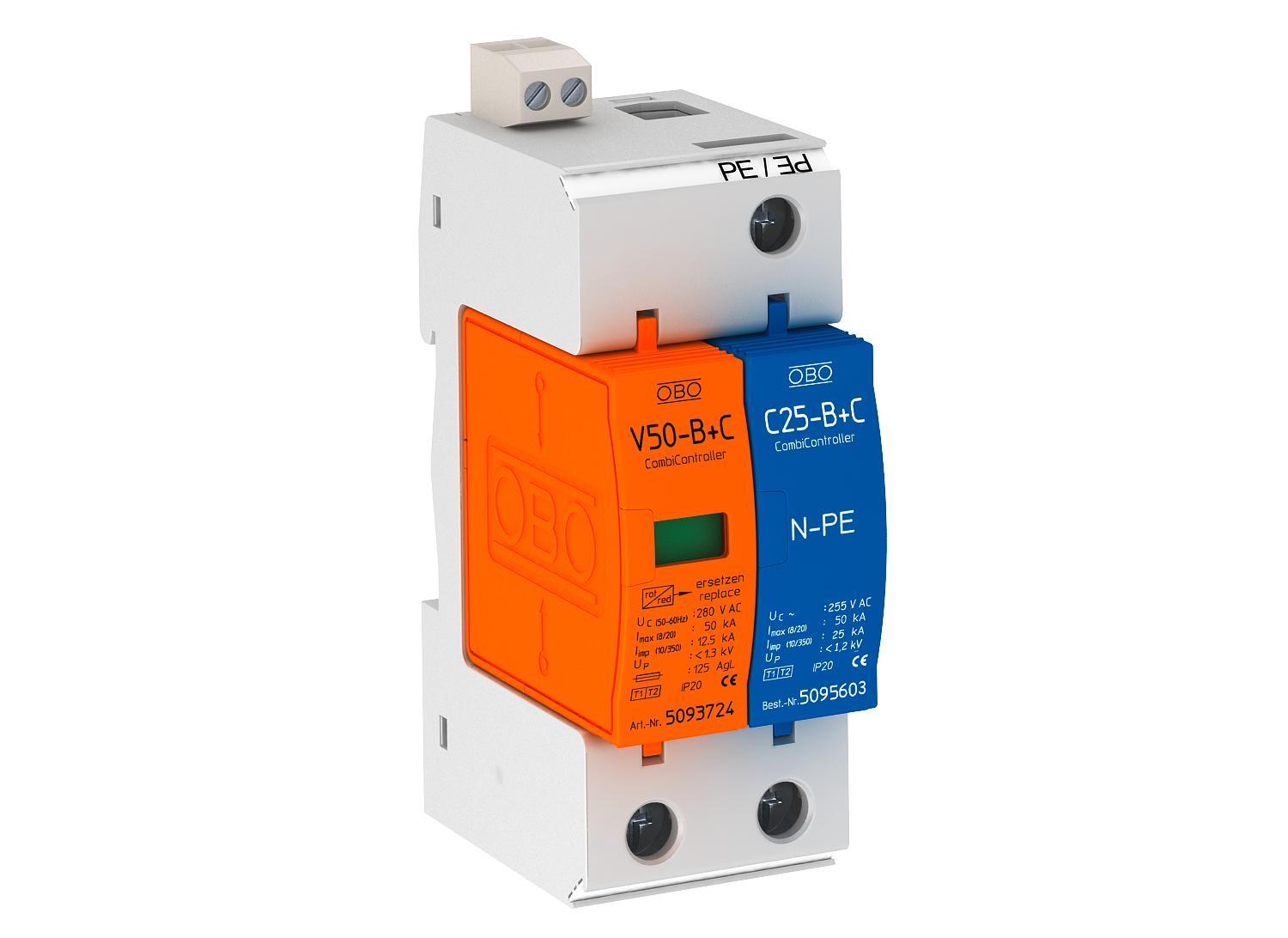

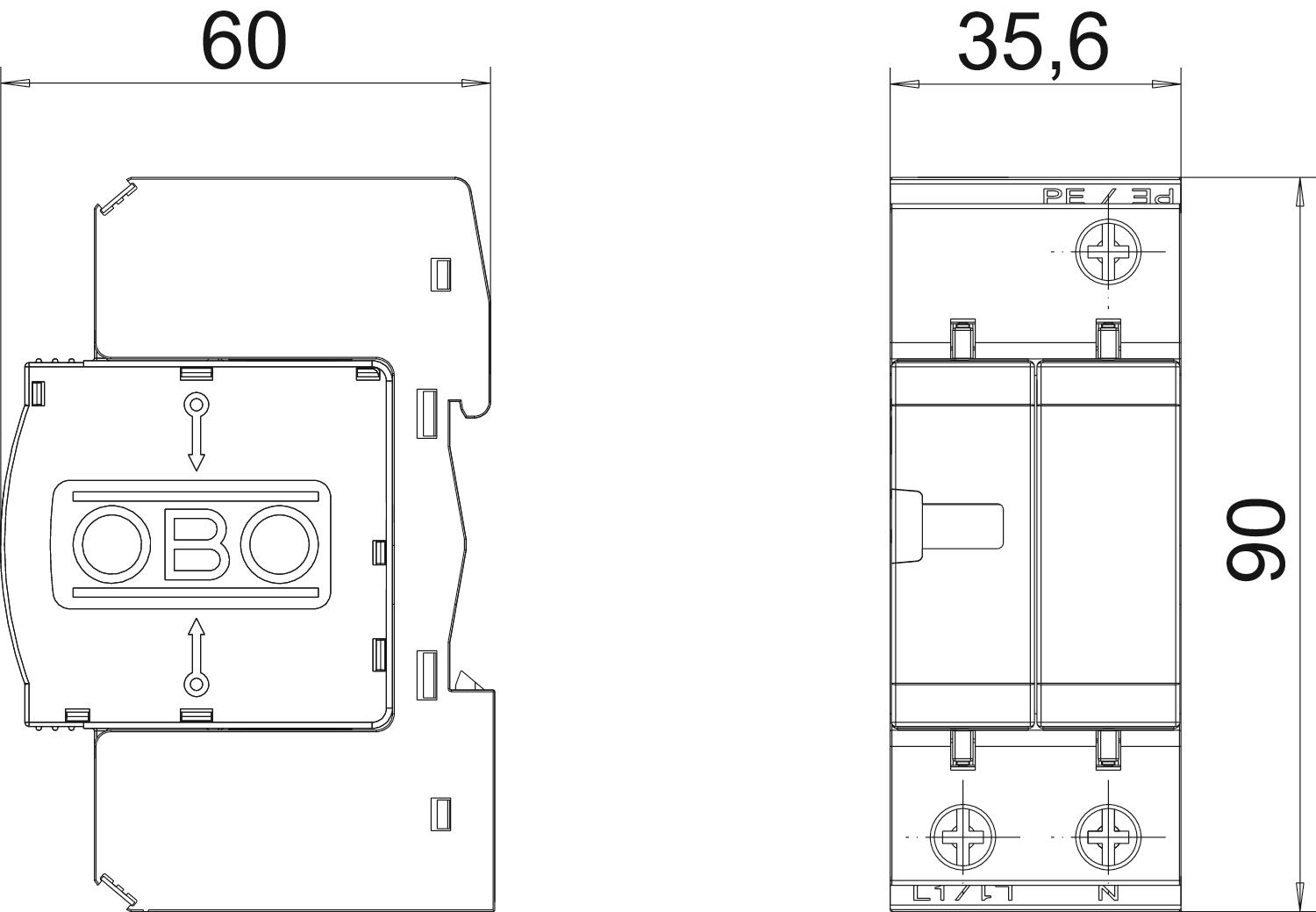

Lightning current and surge arrester, 1-pole + NPE with remote signalling 1+N/PE | 280 | IP20

Lightning current and surge arrester, 1-pole + NPE with remote signalling

Item no. 5093661 | EAN 4012195688433

Item no. / Types

Pole version

Maximum continuous voltage AC	280

Protection rating	IP20

Product description

Product description

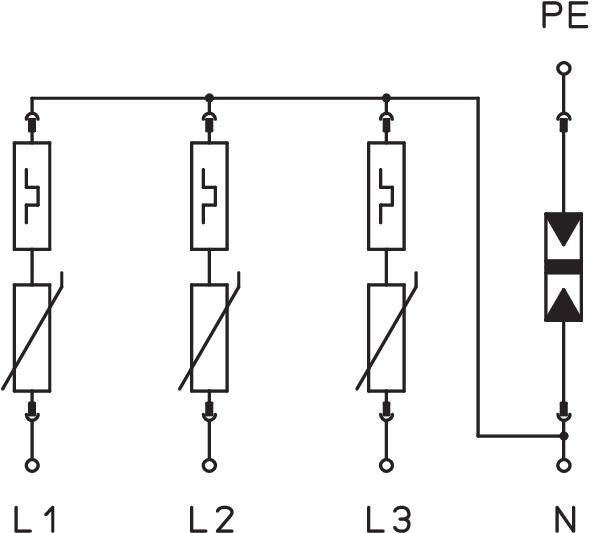

Combination arrester, lightning and surge arrester type 1+2 to DIN EN 61643-11.

• For lightning protection equipotential bonding to VDE 0185-305 (IEC 62305)
• Lightning current arresting capacity 12.5 kA (10/350) per pole
• Universally suitable for TN and TT systems
• With Multibase base with multi-connection terminals
• Complete unit, consisting of upper part and base, pre-mounted and ready for connection
• Arrester, connectable with dynamic cut-off unit
• With visual function display
• Protection level < 1.3
• Encapsulated, non-extinguishing zinc oxide varistor arrester for use in distributor housings
• Labelled connections
• FS variant with remote signalling contact (potential-free NO contact)

Application: Equipotential bonding in buildings, even those with external lightning protection of Class III and IV, and in standard distributor housings.
* Complete = Plug-in arrester and base

Technical data

Connectivity options

Arrester surge current (8/20 µs) [total]	50 kA
Blow-out	no
Conductor cross-section, flexible (fine-wire), min.	25 mm²
Conductor cross-section, rigid (single-wire/multiwire), max.	35 mm²
Conductor cross-section, rigid (single-wire/multiwire), min.	2,5 mm²
DC network form	no
Dimension	280V
Installation type	DIN rail 35 mm
Integrated back-up fuse	no
IT network form	no
Lightning protection zone LPZ	0→2
Lightning surge current (10/350 μs)	12,5 kA
Lightning surge current (10/350)	25 kA
Max. mains-side overcurrent protection	125
Maximum back-up fuse	125 A
Maximum continuous voltage (N-PE)	255 V
Maximum continuous voltage AC	280
Maximum discharge current (8/20 μs)	50 kA
Network form	Other
Nominal discharge current (8/20 µs)	30 kA
Nominal discharge current (8/20 µs) [L-N]	30 kA

Nominal discharge current (8/20 µs) [N-PE]	50 kA
Nominal voltage AC (50/60 Hz)	230 V
Operating temperature, max.	80 °C
Operating temperature, min.	-40 °C
Other network form	no
Pole number	1
Pole version	1+N/PE
Protection level [L-N]	≤1,3
Protection rating	IP20
Remote signalling	yes
Response time	<25 ns
Signalling on device	Visual
SPD to EN 61643-11	Type 1+2
SPD to IEC 61643-1	Class I+II
TN network form	yes
TN-C network form	no
TN-C-S network form	yes
TN-S network form	yes
TT network form	yes
Version for	1+NPE + FS
