Product description

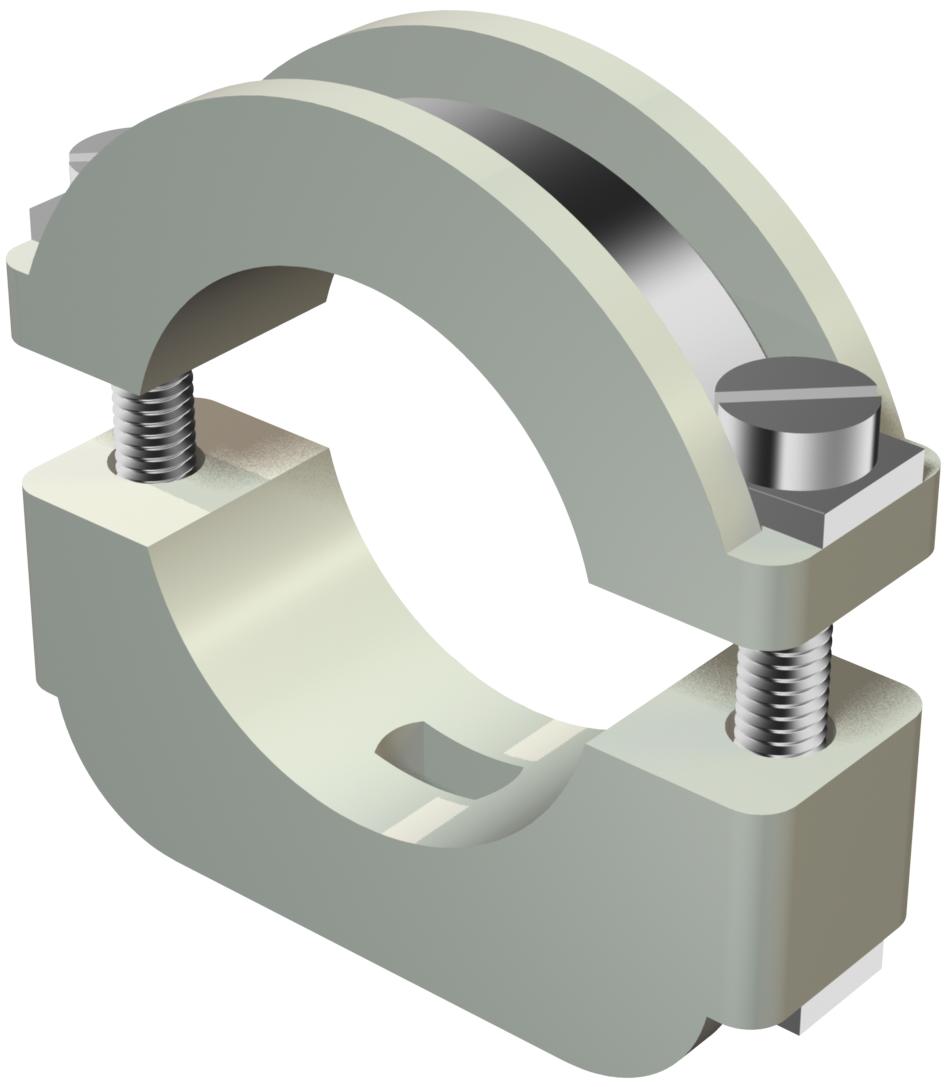

Lightning ISO clips: plastic clip with metal insert, therefore also suitable for heavy-duty applications; metal parts made of electrogalvanised steel.
3015 with 4.5 mm slot.
*Sizes 6–12 and 10–17 not suitable for bolt-firing device.
- Technical data
-
Technical data

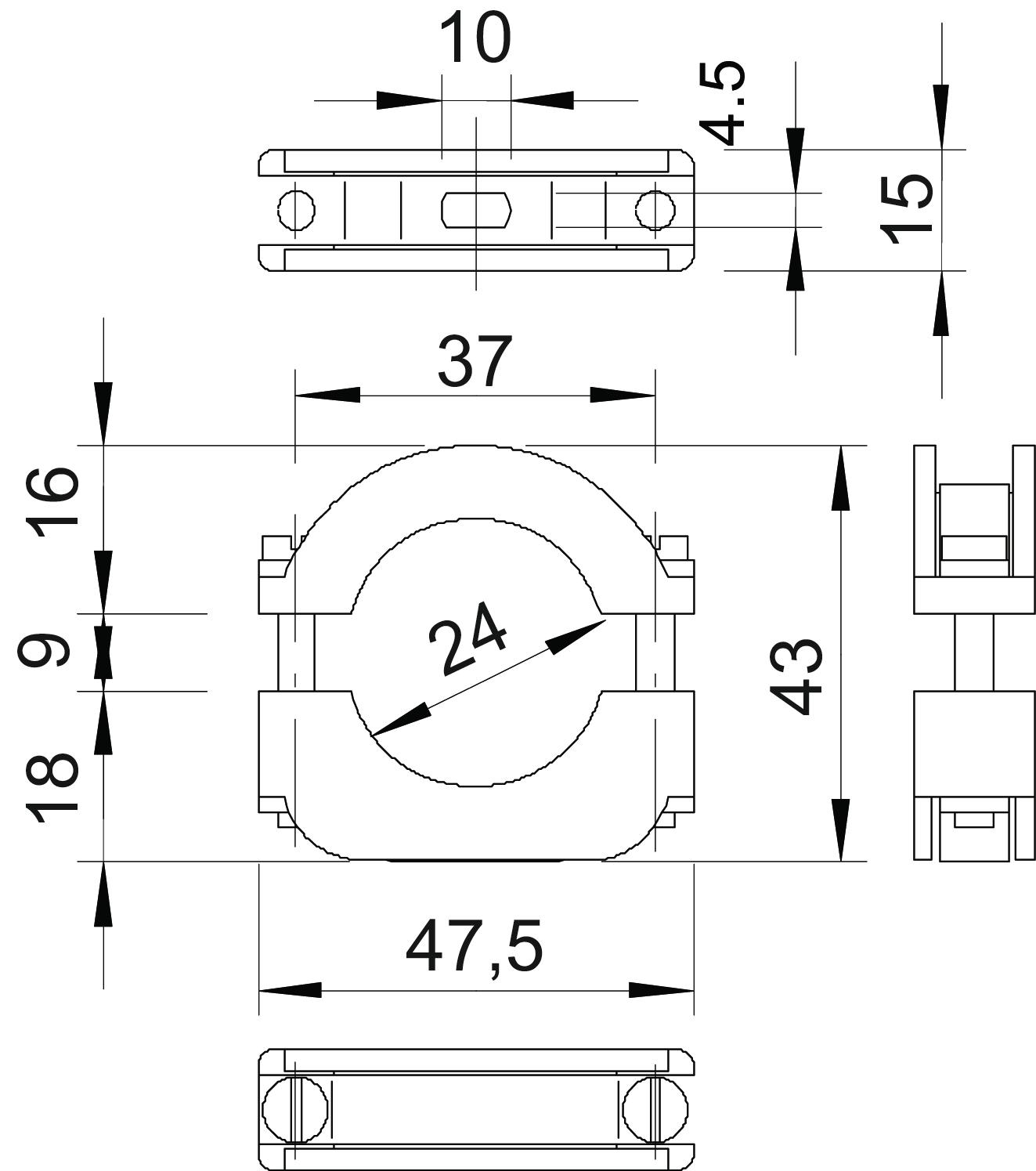

Bolt M4 x 30 Clamping range D, max. 24 mm Clamping range D, min. 17 mm Colour Light grey; RAL 7035 Dimension 17-24mm Dimension A 47,5 mm Dimension B 37 mm Dimension b 15 mm Dimension D 24 mm Dimension H 43 mm Dimension Ho (mm) 16 Dimension Hu (mm) 18 Dimension L 10 mm Fastening type Screw hole Halogen-free yes Material Polystyrene Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area no UV-resistant no Version for Closed - All types
- Downloads
-
Data sheet 3015 24 LGR / 2157241 , 0.23MB , pdfDeclaration of conformity 3015 24 LGR / 2157241 , 0.13MB , pdf
