Lightning ISO clip

Item no. 2157349 | EAN 4012195207078

Screw hole
Product description

Product description

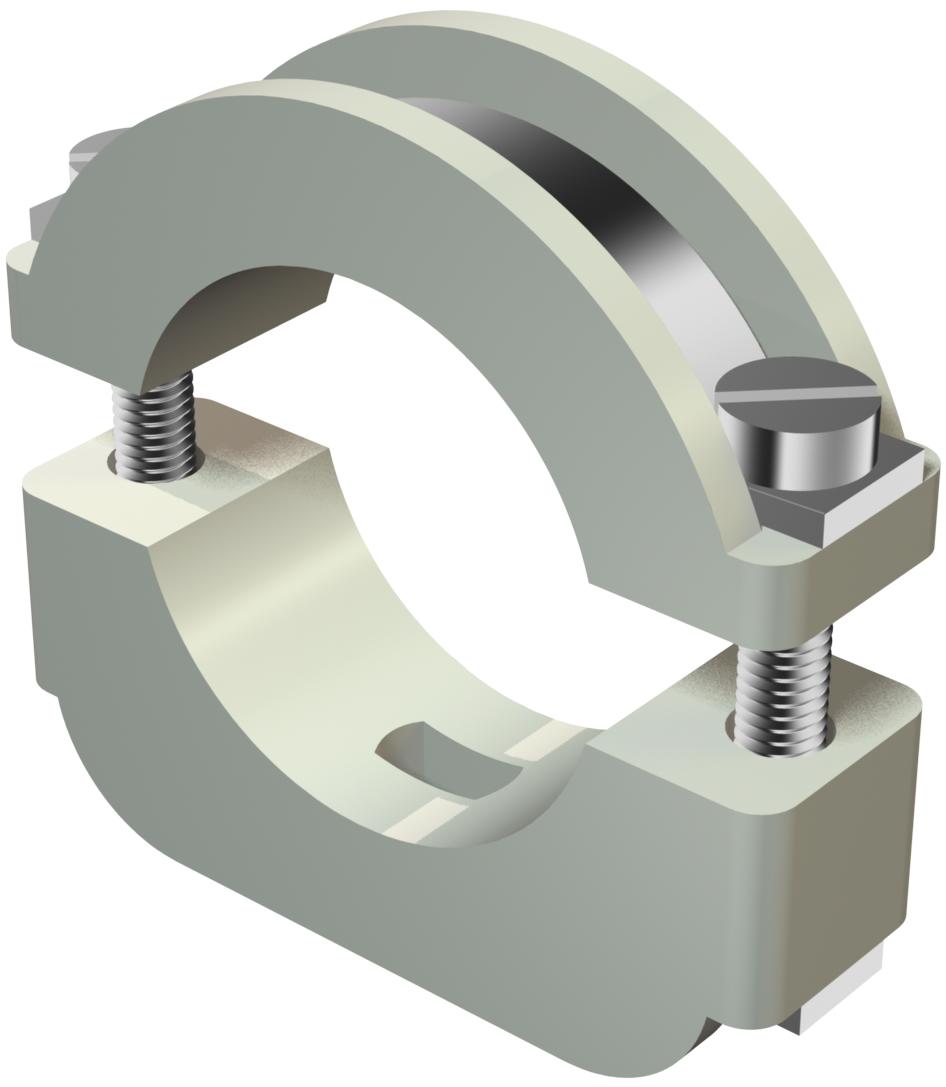

Lightning ISO clips: plastic clip with metal insert, therefore also suitable for heavy-duty applications; metal parts made of electrogalvanised steel.
3015 with 4.5 mm slot.
*Sizes 6–12 and 10–17 not suitable for bolt-firing device.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Bolt-firing tool
  • Nail device
Technical data

Technical data

Bolt M5 x 35
Clamping range D, max. 34 mm
Clamping range D, min. 24 mm
Colour Light grey; RAL 7035
Dimension 24-34mm

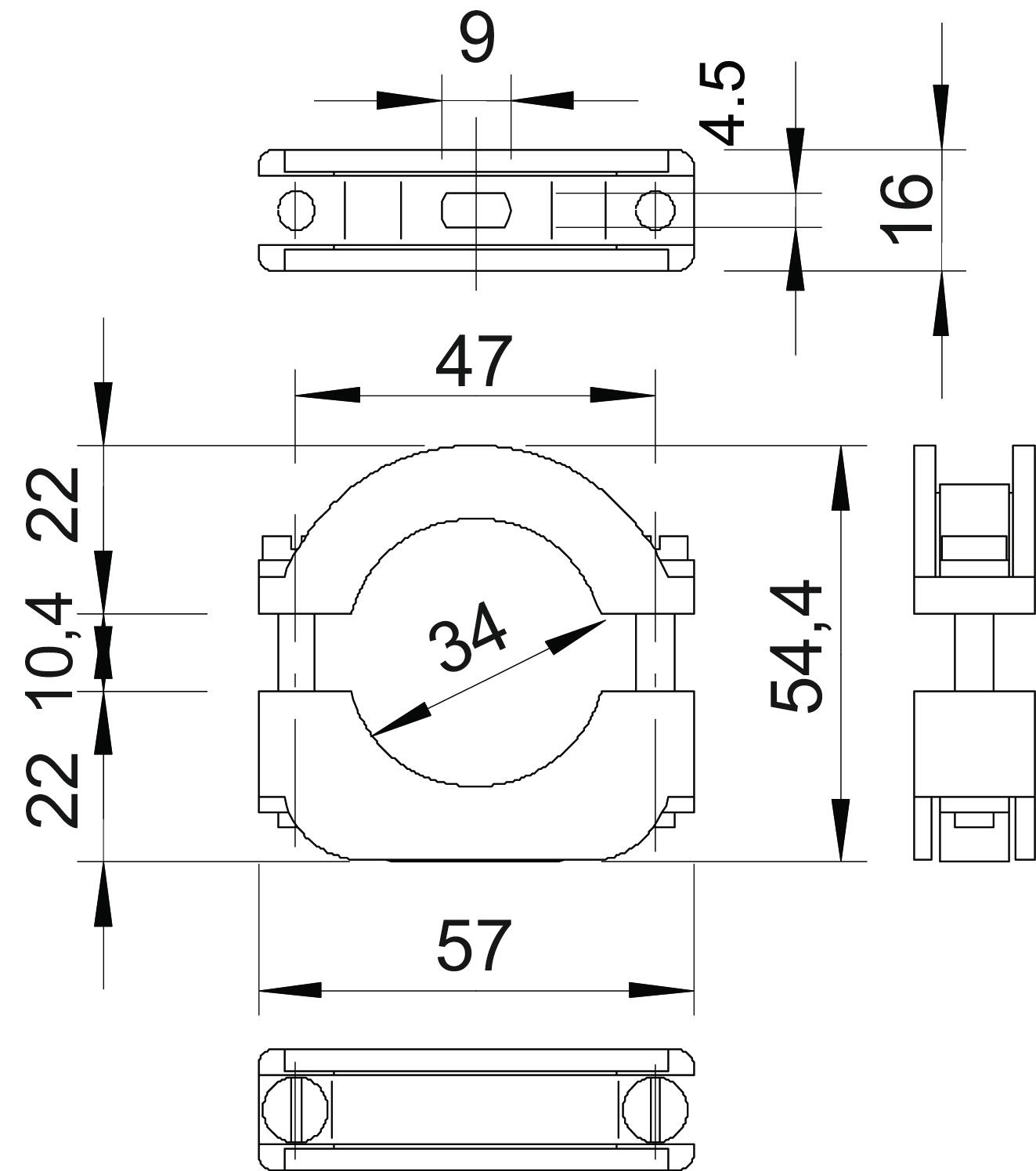

Dimension A 57 mm
Dimension B 47 mm
Dimension b 16 mm
Dimension D 34 mm
Dimension H 54,4 mm
Dimension Ho (mm) 22
Dimension Hu (mm) 22
Dimension L 9 mm
Fastening type Screw hole
Halogen-free yes
Material Polystyrene
Number of cables/pipes 1
Plastic-covered no
Suitable in fire protection area no
UV-resistant no
Version for Closed
All types

All types

Types Clamping range D, min. Clamping range D, max. Fastening type Item no. Quantity SSU
3015 12 LGR 6 mm 12 mm Screw hole 2157128
50 piece
3015 17 LGR 10 mm 17 mm Screw hole 2157179
50 piece
3015 24 LGR 17 mm 24 mm Screw hole 2157241
50 piece
3015 34 LGR 24 mm 34 mm Screw hole 2157349
25 piece
