Lightning ISO clip, screw-on

Item no. 2158175 | EAN 4012195207191

Threaded connection
Product description
Product description

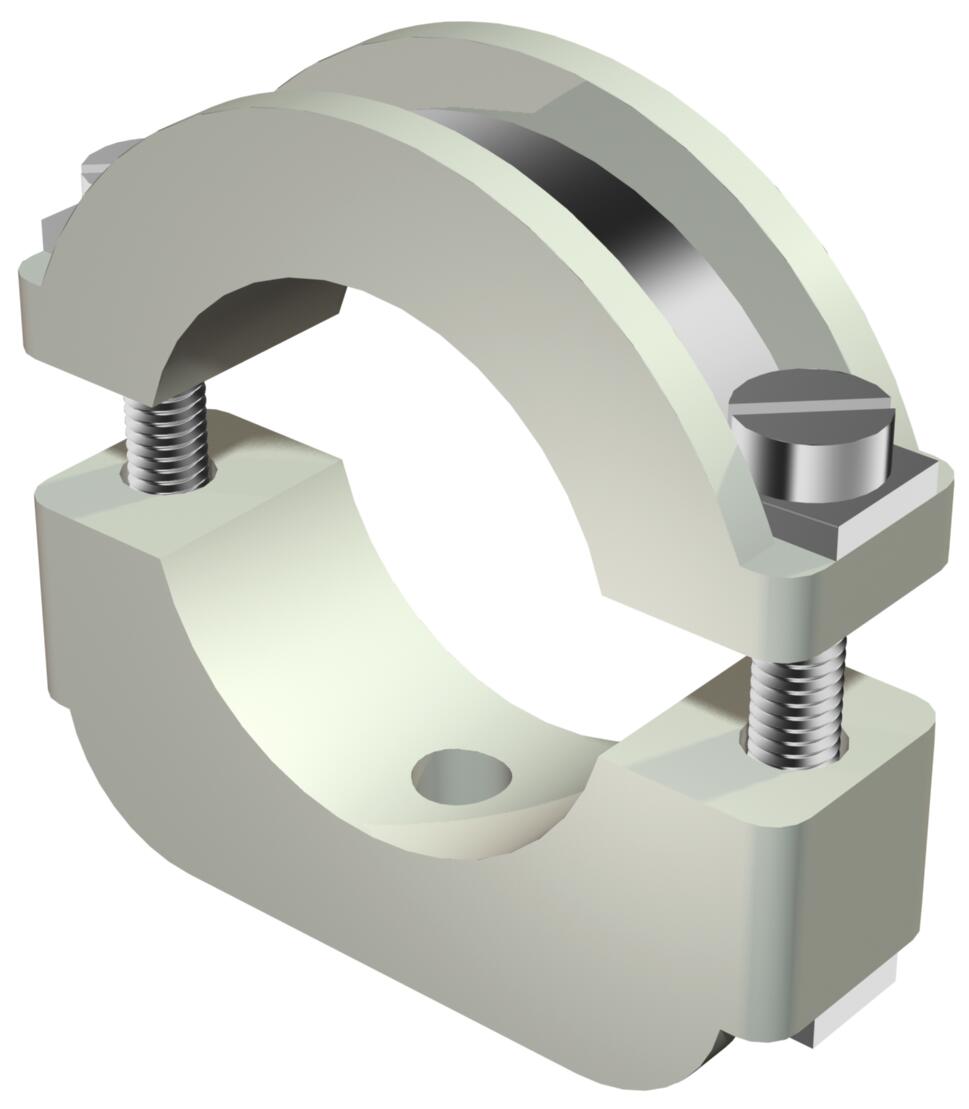

Lightning ISO clips: plastic clip with metal insert, therefore also suitable for heavy-duty applications; metal parts made of electrogalvanised steel.
Can be screwed onto M6 thread.
*Sizes 6–12 and 10–17 not suitable for bolt-firing device.

  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Bolt M4 x 25
Clamping range D, max. 17 mm
Clamping range D, min. 10 mm
Colour Light grey; RAL 7035
Dimension 10-17mm

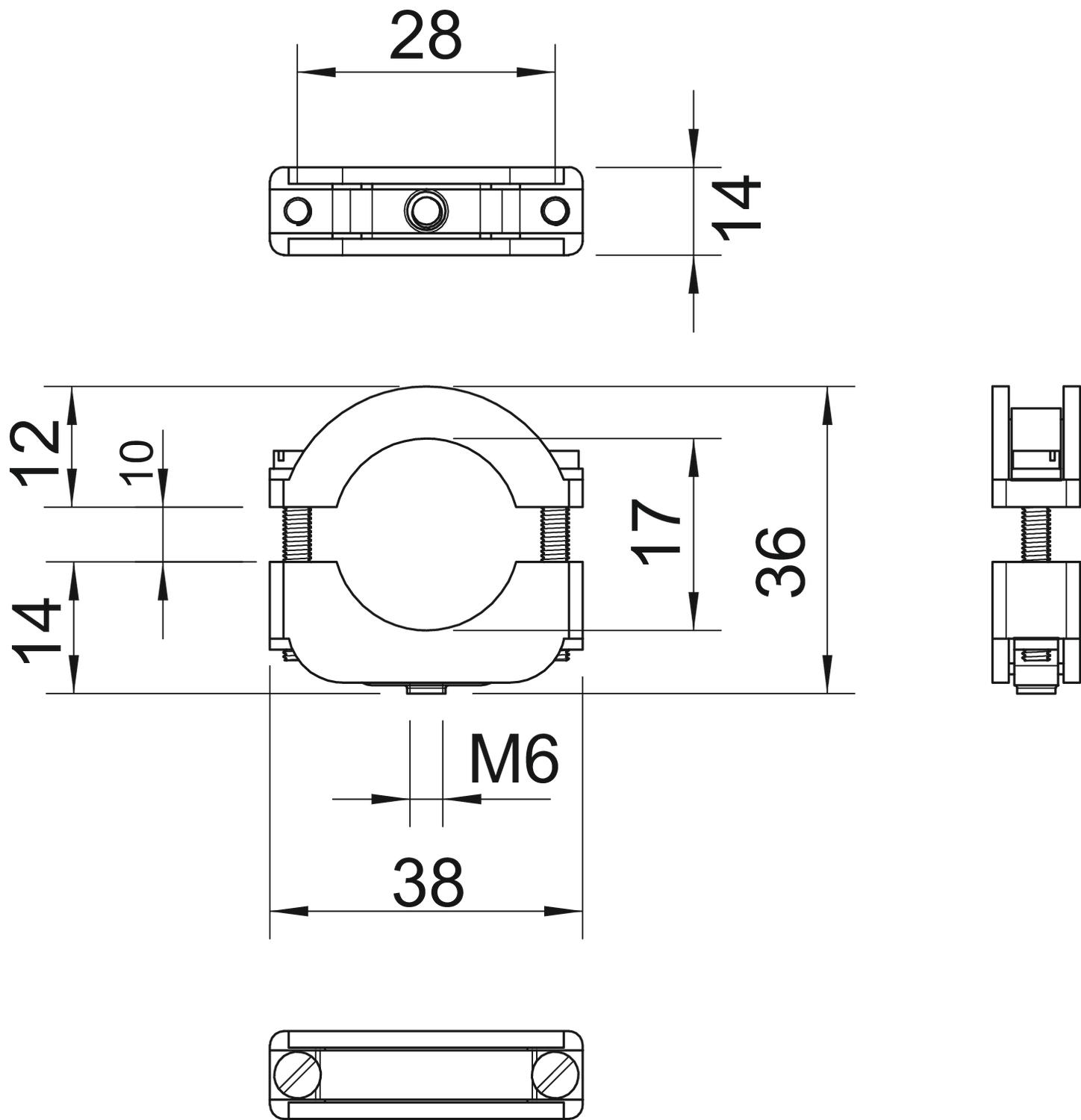

Dimension A 38 mm
Dimension B 28 mm
Dimension b 14 mm
Dimension D 17 mm
Dimension H 36 mm
Dimension Ho (mm) 12
Dimension Hu (mm) 14
Dimension l 25 mm
Dimension x 7 mm
Fastening type Threaded connection
Halogen-free yes
Material Polystyrene
Number of cables/pipes 1
Plastic-covered no
Suitable in fire protection area no
UV-resistant no
Version for Closed
All types

All types

Types Clamping range D, min. Clamping range D, max. Fastening type Item no. Quantity SSU
3019 M6 LGR 6 mm 12 mm Threaded connection 2158124
50 piece
3020 LGR 10 mm 17 mm Threaded connection 2158175
50 piece
3021 LGR 17 mm 24 mm Threaded connection 2158248
25 piece
3022 LGR 24 mm 34 mm Threaded connection 2158345
25 piece
Downloads

Download

EU declaration of conformity 3020 LGR / 2158175 , 0.13MB , pdf
