- Product description
-
Product description
Lightning ISO clips: plastic clip with metal insert, therefore also suitable for heavy-duty applications; metal parts made of electrogalvanised steel.
Can be screwed onto M6 thread.
*Sizes 6–12 and 10–17 not suitable for bolt-firing device.
- Technical data
-
Technical data

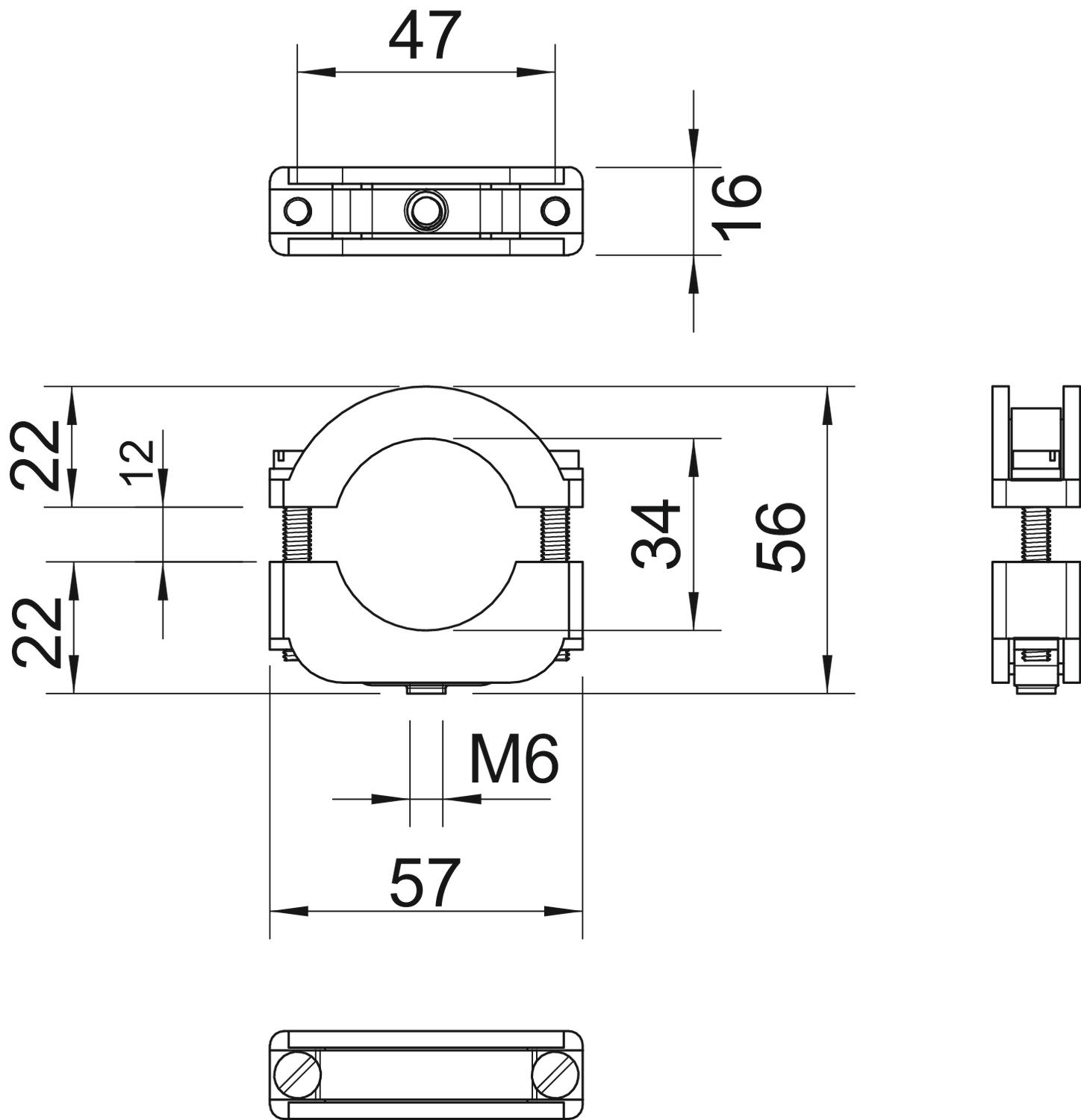

Bolt M5 x 35 Clamping range D, max. 34 mm Clamping range D, min. 24 mm Colour Light grey; RAL 7035 Dimension 24-34mm Dimension A 57 mm Dimension b 16 mm Dimension B 47 mm Dimension D 34 mm Dimension H 56 mm Dimension Ho (mm) 22 Dimension Hu (mm) 22 Dimension l 35 mm Dimension x 10 mm Fastening type Threaded connection Halogen-free yes Material Polystyrene Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area no UV-resistant no Version for Closed - All types
- Downloads
-
Data sheet 3022 LGR / 2158345 , 0.22MB , pdfDeclaration of conformity 3022 LGR / 2158345 , 0.13MB , pdfREACH Declaration of conformity 3022 LGR / 2158345 , 0.13MB , pdfRoHS Declaration of conformity 3022 LGR / 2158345 , 0.13MB , pdf
