Lightning strike and surge counter

Item no. 5091722 | EAN 4012196465644

5091722 / LSC I+II
100 kA
1 kA
Product description

Product description

The LSC I+II lightning current meter measures and permanently saves pulse currents, together with the date and time. This ensures constant monitoring in order to notice if any lightning has struck the lightning protection system. Should this be the case, then the lightning protection system must be maintained according to VDE 0185-305 (IEC 62305).


• Saving and display of time and date

• Usable both inside and outside due to its protection class of IP65

• Cable clip for round conductor or flat conductor

• Direct mounting on the conductor or the PE conductor of the surge protective device

• Long lifespan of the internal lithium batteries

• LCD display

• Internal battery

• Tested according to VDE 0185-561-6 (IEC 62561-6)
  • Lightning current-tested
  • Protection rating IP 65
Technical data

Technical data

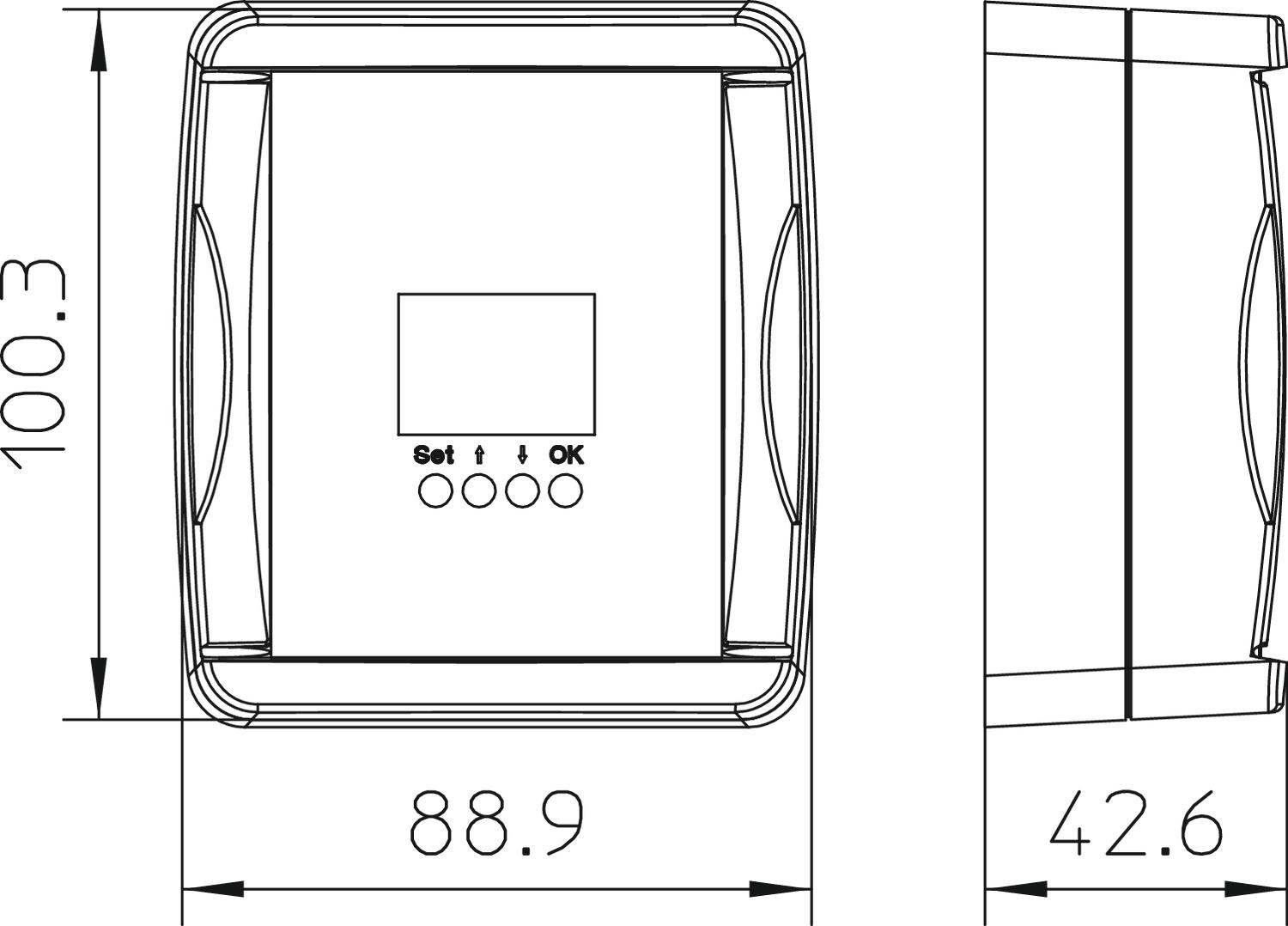

Dimension 140x89x43
Dimension 144x88x44
Material Plastic
Measuring range, max. 100 kA
Measuring range, min. 1 kA
Number of sensors 1
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -20 °C
Protection rating IP65
Signalling on device Visual
All types

All types

Types Measuring range, max. Measuring range, min. Item no. Quantity SSU
LSC I+II 100 kA 1 kA 5091722
1 piece
