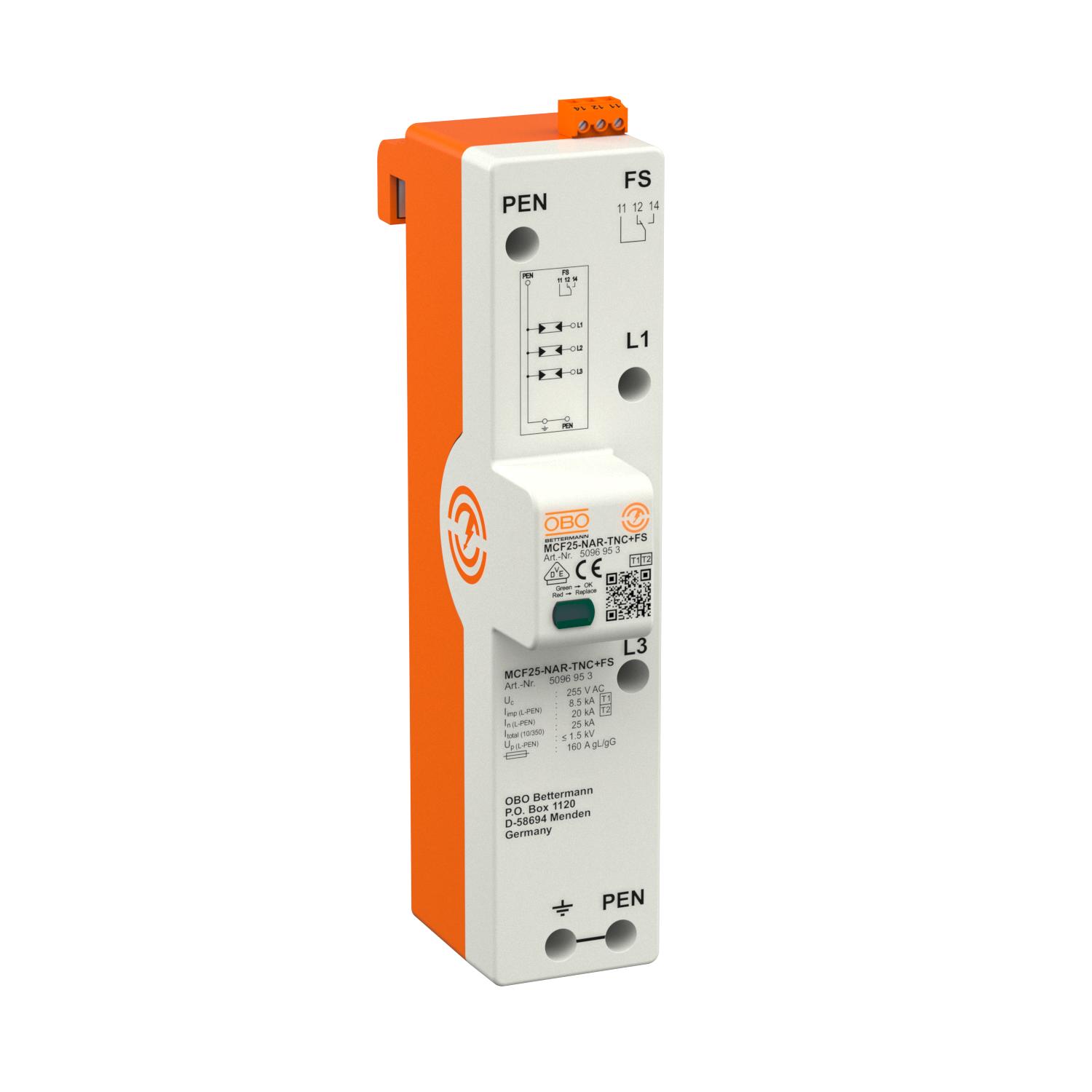

Product descriptionCombination arrester, type 1+2, for mounting on 40 mm busbars, for TN-C systems
• Protection level ≤1.5 kV to protect the terminals
• Lightning protection equipotential bonding according to VDE 0185-305 (IEC 62305)
• Lightning current arresting capacity up to 25 kA (10/350) 3-pole
• Fulfils the requirements of VDE 0100-534 (IEC 60364-5-53)
• Line follow current quenching up to 50 kA and max. backup fuse up to 160 A gL/gG
• Spark gaps for use in the pre-meter area according to VDE-AR-N 4100
• With potential-free changeover contact for remote signalling
Application: Building with outside cable infeed.
- Technical data
-
Technical data
Approvals VDE Arrester surge current (8/20 µs) [total] 60 kA Cable type for surge protection devices Power cable AV Conductor cross-section, flexible (fine-wire), max. 2 AWG Conductor cross-section, flexible (fine-wire), max. 35 mm² Conductor cross-section, flexible (fine-wire), min. 7 AWG Conductor cross-section, flexible (fine-wire), min. 10 mm² Conductor cross-section, rigid (single-wire/multiwire), max. 2 AWG Conductor cross-section, rigid (single-wire/multiwire), max. 35 mm² Conductor cross-section, rigid (single-wire/multiwire), min. 10 mm² Conductor cross-section, rigid (single-wire/multiwire), min. 7 AWG Connection cross-section, FM terminals, max. 1,5 mm² Connection cross-section, FM terminals, max. 16 AWG Connection cross-section, FM terminals, min. 0,5 mm² Connection cross-section, FM terminals, min. 28 AWG Dimension 255V FM contacts Changeover Height 109 mm Housing material surge protection components PA UL 94 V-0 Installation type Bus bar 40 mm Length 226 mm Lightning surge current (10/350 μs) 8,5 kA Lightning surge current (10/350) 25 kA Max. mains-side overcurrent protection 160 A Maximum back-up fuse 160 A Maximum continuous voltage (L-N) 255 V Maximum continuous voltage AC 255 V Maximum discharge current (8/20 μs) 50 kA Maximum discharge current (8/20 μs) [L-N] 50 kA Network form TN-C Nominal discharge current (8/20 µs) 20 kA Nominal discharge current (8/20 µs) [L-N] 20 kA Nominal voltage AC (50/60 Hz) 230 V Operating temperature, max. 80 °C Operating temperature, min. -40 °C Pole version 3 Protection rating IP20 Remote signalling yes Response time <100 ns Short-circuit resistance for max. mains-side overcurrent protection 50 kA eff Signalling on device Visual SPD to EN 61643-11 Type 1+2 SPD to IEC 61643-1 Class I+II Switching power AC 250 V/ 2 A Switching power DC 250 V/ 0,1 A TN network form yes TN-C network form yes Torque 3,5 Nm TOV voltage [L-N] ‒ fail safe mode ‒ 120 min. 442 V TOV voltage [L-N] ‒ withstand mode ‒ 5 s 440 V Version for 3+NPE Width 50 mm - All types
