Lock washer 14.8 | 2.6 | M8

morepic-1

morepic-2

Lock washer

Item no. 3405087 | EAN 4012195302353

Item no. / Types

Dimension d min.

Dimension h

Thread

Product description

Product description

Lock washer M8

Technical data

Technical data

Diameter	14,8 mm
Dimension	M8
Dimension d	8,3 mm
Dimension d max.	14,8 mm
Dimension d min.	14,8 mm
Dimension h	2,6 mm
External diameter	14,8 mm
Height	2,6 mm

Inner diameter	0,33 mm
Lock washer version	Ribbed
Material	Steel
Plate thickness	0,1 in
Surface	Electrogalvanized
Thickness	2,6 mm
Thread	M8

All types

All types

Types	Dimension d min.	Dimension h	Thread	Item no.	Quantity	SSU
LWS M6 G	11.8 mm	2.1 mm	M6	3405060	piece	1000 piece
LWS M8 G	14.8 mm	2.6 mm	M8	3405087	piece	100 piece
LWS M10 G	18.1 mm	3 mm	M10	3405109	piece	100 piece
LWS M12 G	21.1 mm	3.5 mm	M12	3405125	piece	100 piece

Downloads

Data sheet LWS M8 G / 3405087 , 0.12MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

Declaration of conformity LWS M8 G / 3405087 , 0.05MB , pdf

Download

REACH Declaration of conformity LWS M8 G / 3405087 , 0.12MB , pdf

Download

RoHS Declaration of conformity LWS M8 G / 3405087 , 0.13MB , pdf

Download

Product graphic LWS M8 G / 3405087, 12.82 kB, jpg

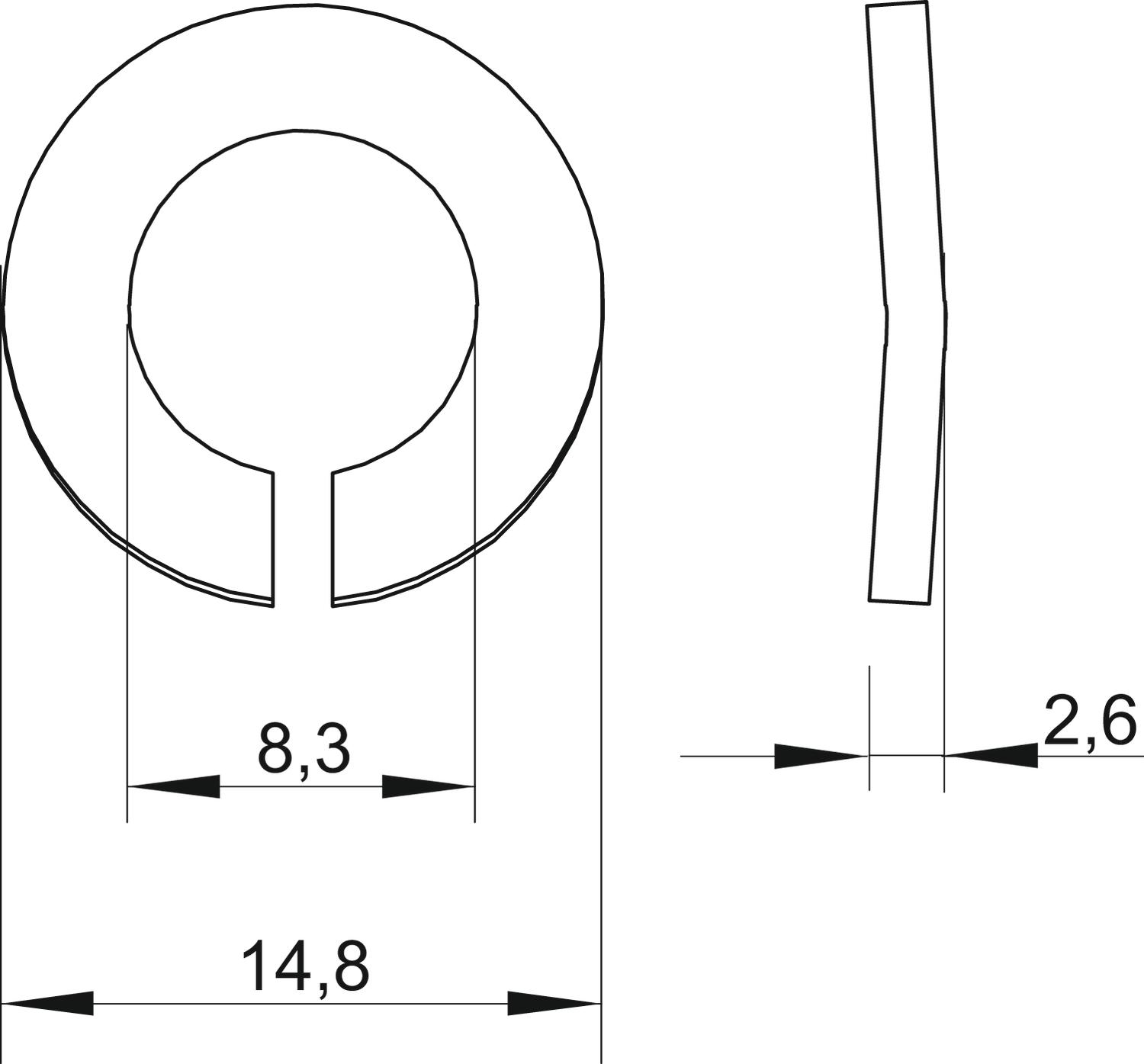

Scale drawing LWS M8 G / 3405087, 67.11 kB, jpg

LWS M8 G / 3405087
