Lock washer A4 14.8 | 2.6 | M8

morepic-1

morepic-2

Lock washer A4

Item no. 3405089 | EAN 4012195909712

Item no. / Types

Dimension d min.

Dimension h

Thread

Product description

Product description

Lock washer according to DIN 128, shape A.

Technical data

Technical data

Diameter	14,8 mm
Dimension	M8
Dimension d	8,3 mm
Dimension d max.	14,8 mm
Dimension d min.	14,8 mm
Dimension h	2,6 mm
External diameter	14,8 mm

Height	2,6 mm
Inner diameter	8,3 mm
Lock washer version	Ribbed
Material	Stainless steel
Surface	Bright, treated
Thickness	2,6 mm
Thread	M8

All types

All types

Types	Dimension d min.	Dimension h	Thread	Item no.	Quantity	SSU
LWS M6 A4	11.8 mm	2.1 mm	M6	3405062	piece	1000 piece
LWS M8 A4	14.8 mm	2.6 mm	M8	3405089	piece	100 piece
LWS M10 A4	18.1 mm	3 mm	M10	3405111	piece	100 piece
LWS M12 A4	21.1 mm	3.5 mm	M12	3405127	piece	100 piece

Downloads

Data sheet LWS M8 A4 / 3405089 , 0.17MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

EU declaration of conformity LWS M8 A4 / 3405089 , 0.05MB , pdf

Download

Product graphic LWS M8 A4 / 3405089, 43.89 kB, jpg

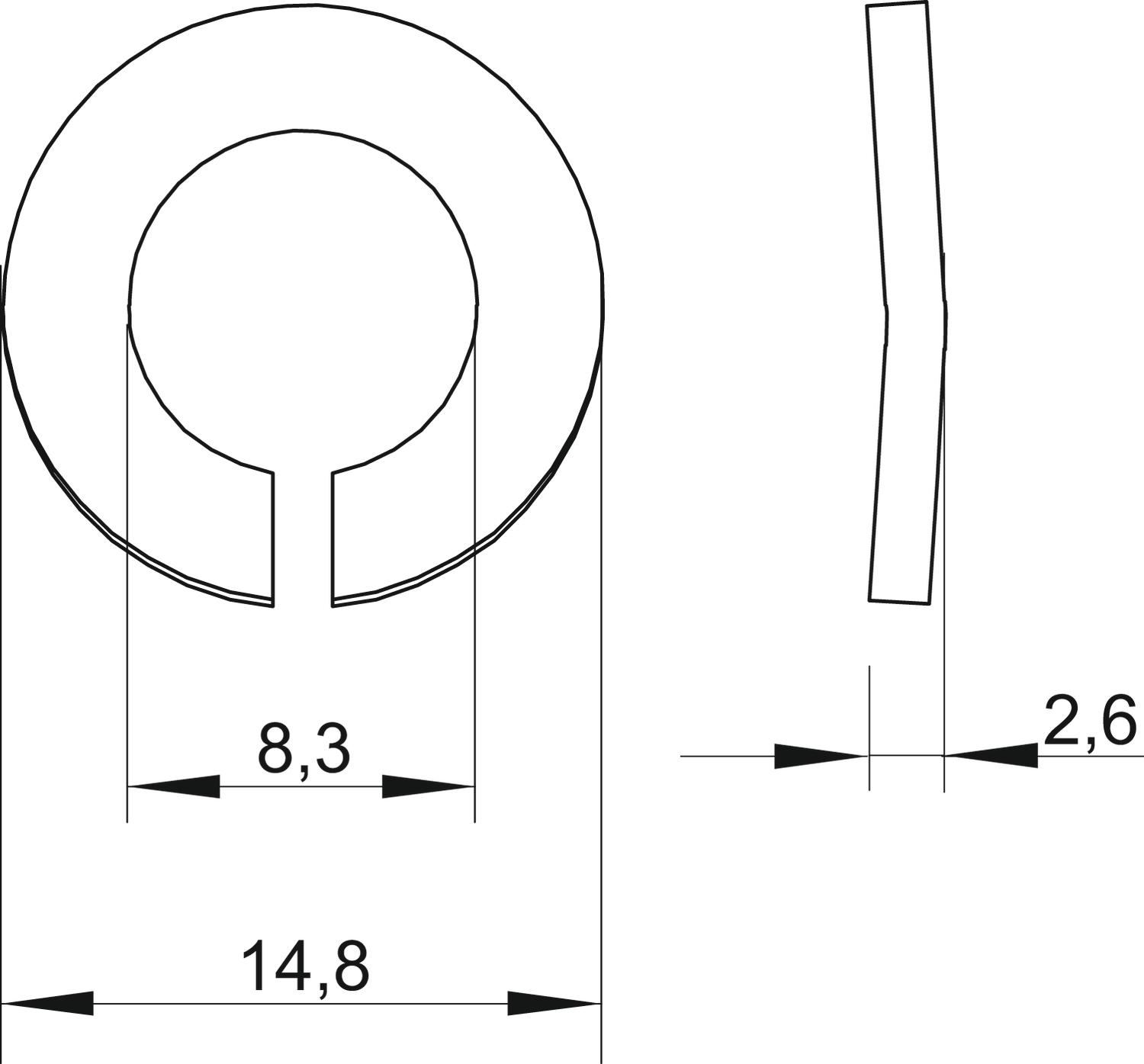

Scale drawing LWS M8 A4 / 3405089, 67.11 kB, jpg

LWS M8 A4 / 3405089
