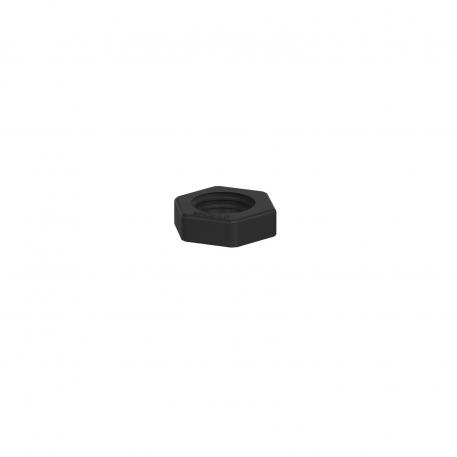

Locknut, metric thread, black M12_x_1,5 | 17
morepic-1 morepic-2

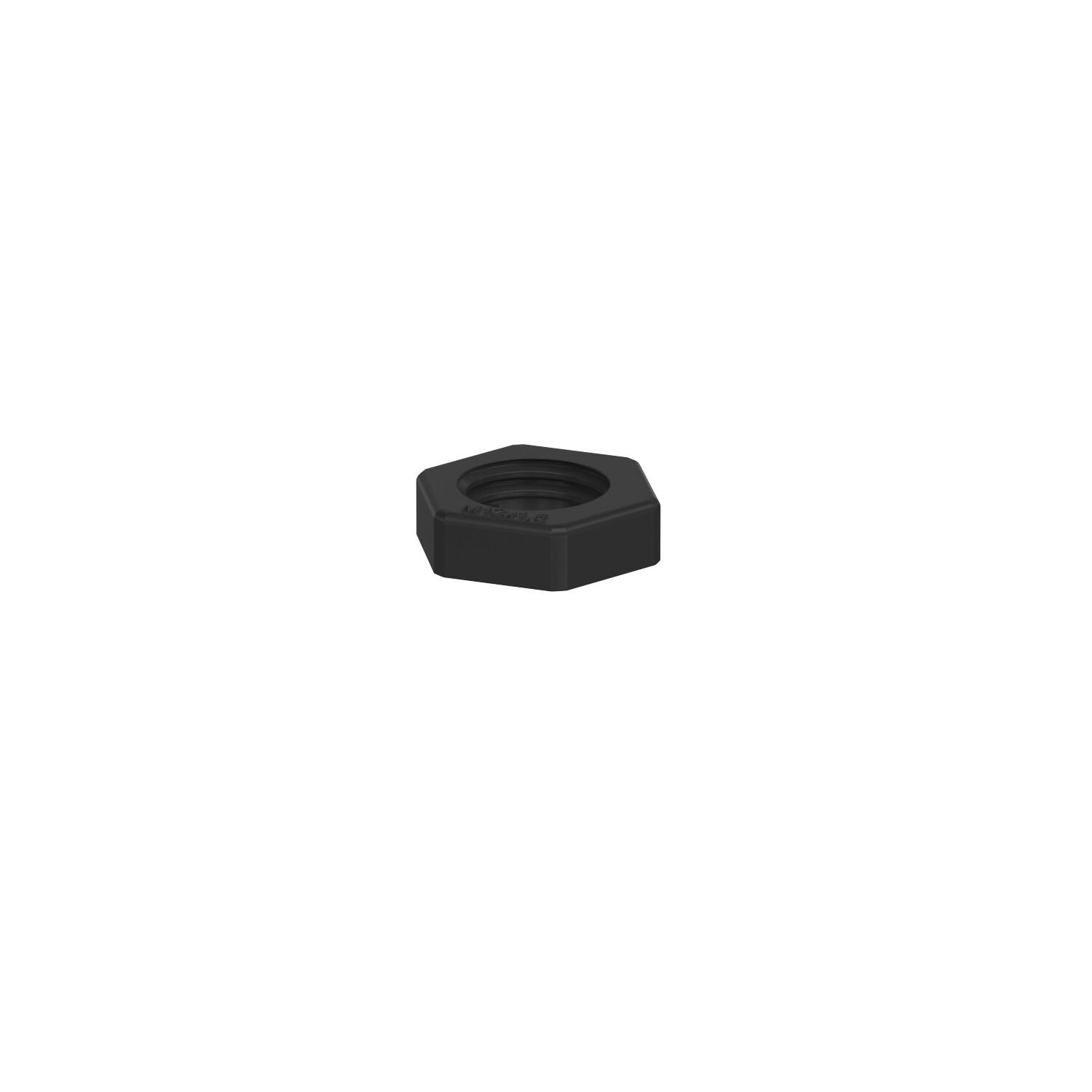

Locknut, metric thread, black

Item no. 2049066 | EAN 4012195089179

Product description
Product description
Locknut DIN 46319, with metric thread IEC 423.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Thread metric
Technical data

Technical data

Colour Black

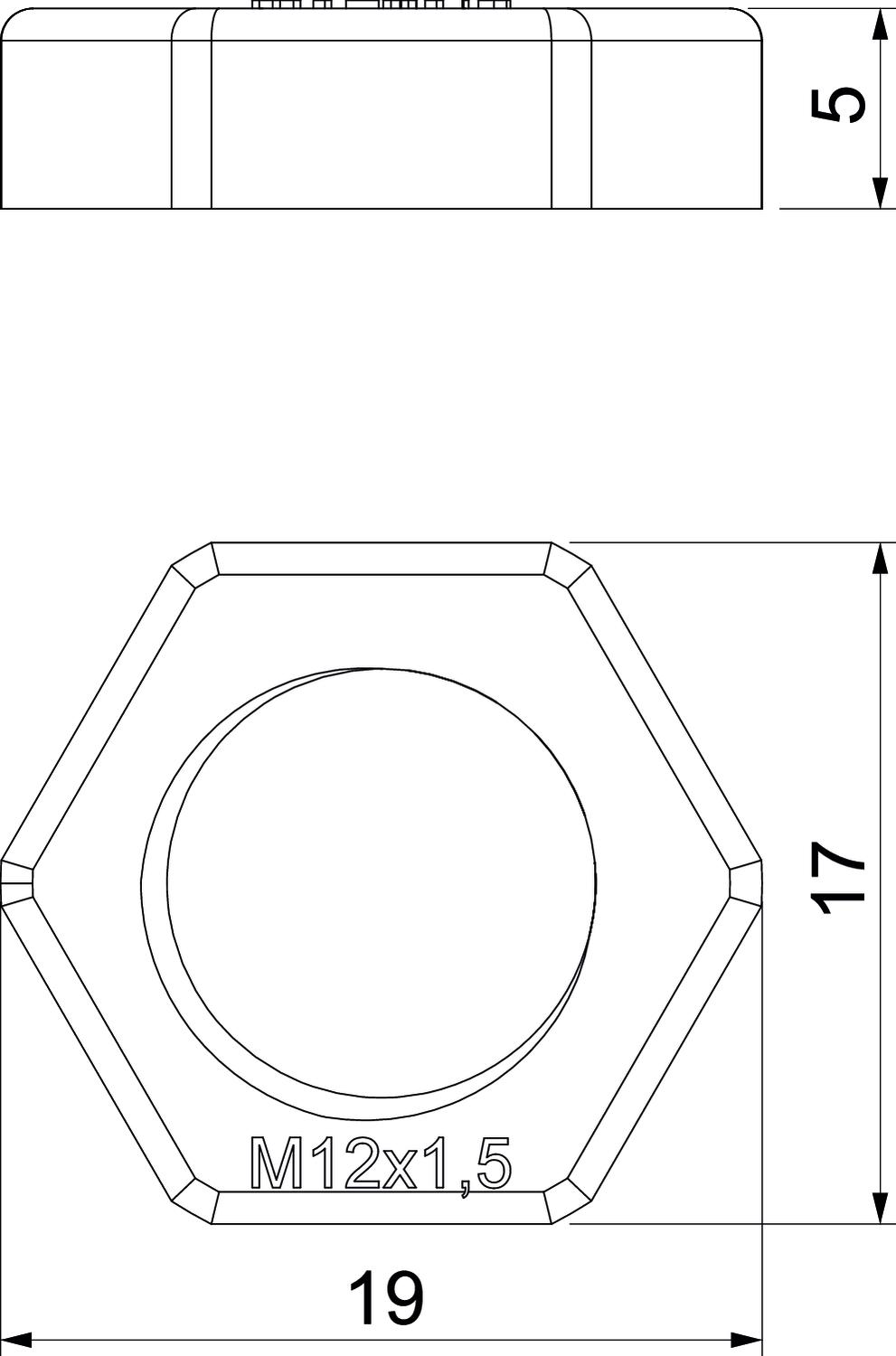

Dimension M12
Dimension E 19 mm
Dimension L 5 mm
Fibre-glass reinforced no
Halogen-free yes
Impact-resistant no
Material Polyamide
Nominal thread size metric/PG 12
Thread M12_x_1,5
Thread type Metric
WAF 17
All types

All types

Types Thread WAF Item no. Quantity SSU
116 M12 SW PA M12_x_1,5 17 2049066
100 piece
116 M16 SW PA M16_x_1,5 22 2049074
100 piece
116 M20 SW PA M20_x_1,5 26 2049082
100 piece
116 M25 SW PA M25_x_1,5 32 2049090
100 piece
116 M32 SW PA M32_x_1,5 41 2049104
50 piece
116 M40 SW PA M40_x_1,5 50 2049112
25 piece
116 M50 SW PA M50_x_1,5 60 2049120
25 piece
116 M63 SW PA M63_x_1,5 75 2049139
25 piece
