Locknut, metric thread M63_x_1,5 | 70
morepic-1 morepic-2 video-1 video-2

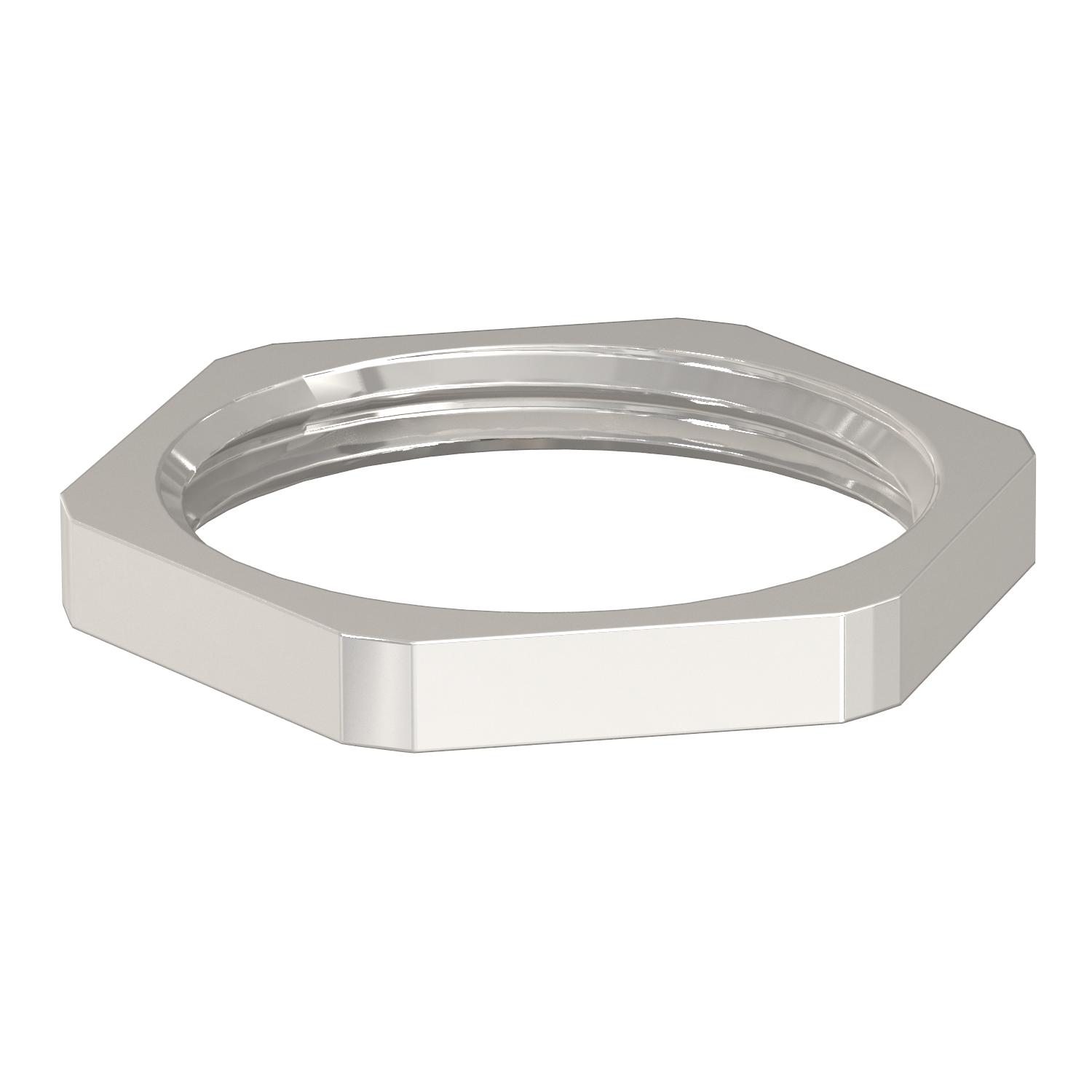

Locknut, metric thread

Item no. 2091682 | EAN 4012195474852

Product description
Product description
Locknut to DIN 46319 with metric thread IEC 423.

* Prices according to DEL notation.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread metric
Technical data

Technical data

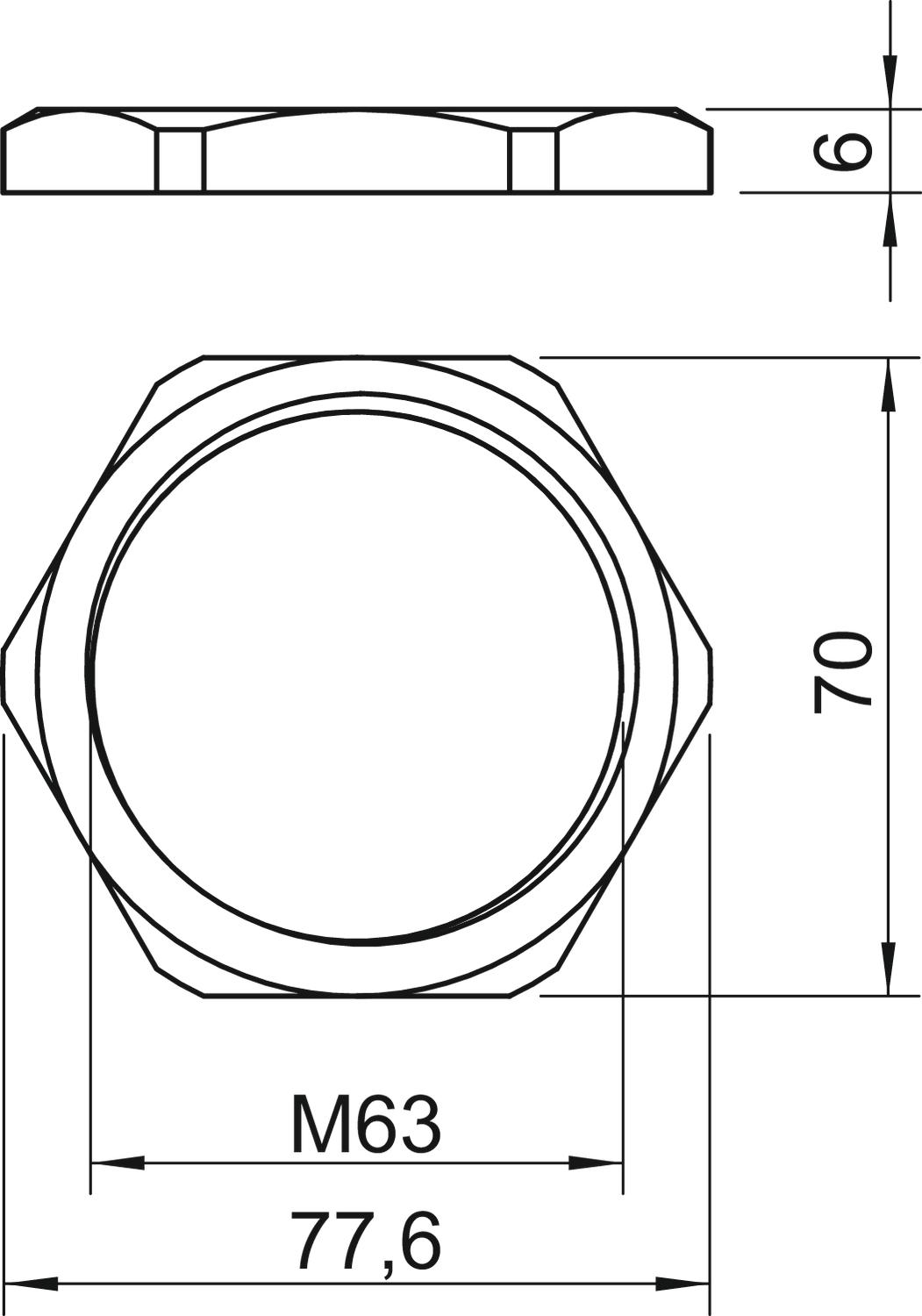

Dimension M63
Dimension E 77,6 mm
Dimension L 6 mm
Fibre-glass reinforced no
Halogen-free no
Impact-resistant no
Material Brass
Nominal thread size metric/PG 63
Surface Nickel-plated
Thread M63_x_1,5
Thread type Metric
WAF 70
All types

All types

Types Thread WAF Item no. Quantity SSU
169 MS M12 M12_x_1,5 15 2091607
100 piece
169 MS M16 M16_x_1,5 20 2091615
100 piece
169 MS M20 M20_x_1,5 24 2091623
100 piece
169 MS M25 M25_x_1,5 30 2091631
100 piece
169 MS M32 M32_x_1,5 35 2091658
100 piece
169 MS M40 M40_x_1,5 45 2091666
50 piece
169 MS M50 M50_x_1,5 55 2091674
50 piece
169 MS M63 M63_x_1,5 70 2091682
25 piece
169 MS M75 M75_x_1,5 90 2091685
48 piece
