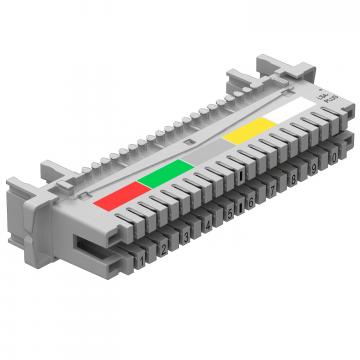

LSA basic protection magazine 20 | Basic protection | 120 | 180 | Other

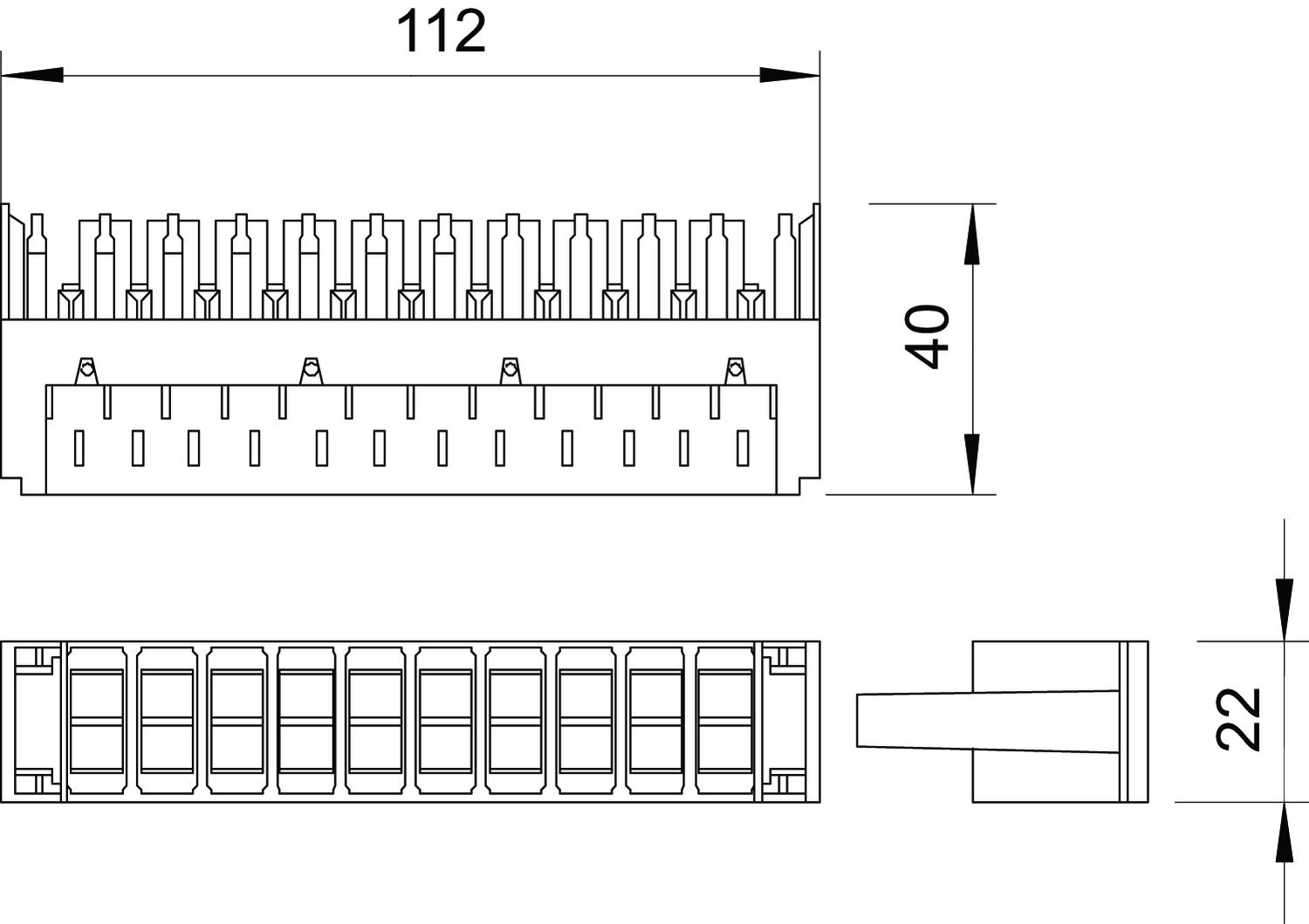

LSA basic protection magazine

Item no. 5084020 | EAN 4012195525318

Item no. / Types	5084020 / LSA-B-MAG

Number of poles	20

Version for	Basic protection

Maximum continuous voltage AC	120

Maximum continuous voltage DC	180

Plug-in system	Other

Product description

Product description

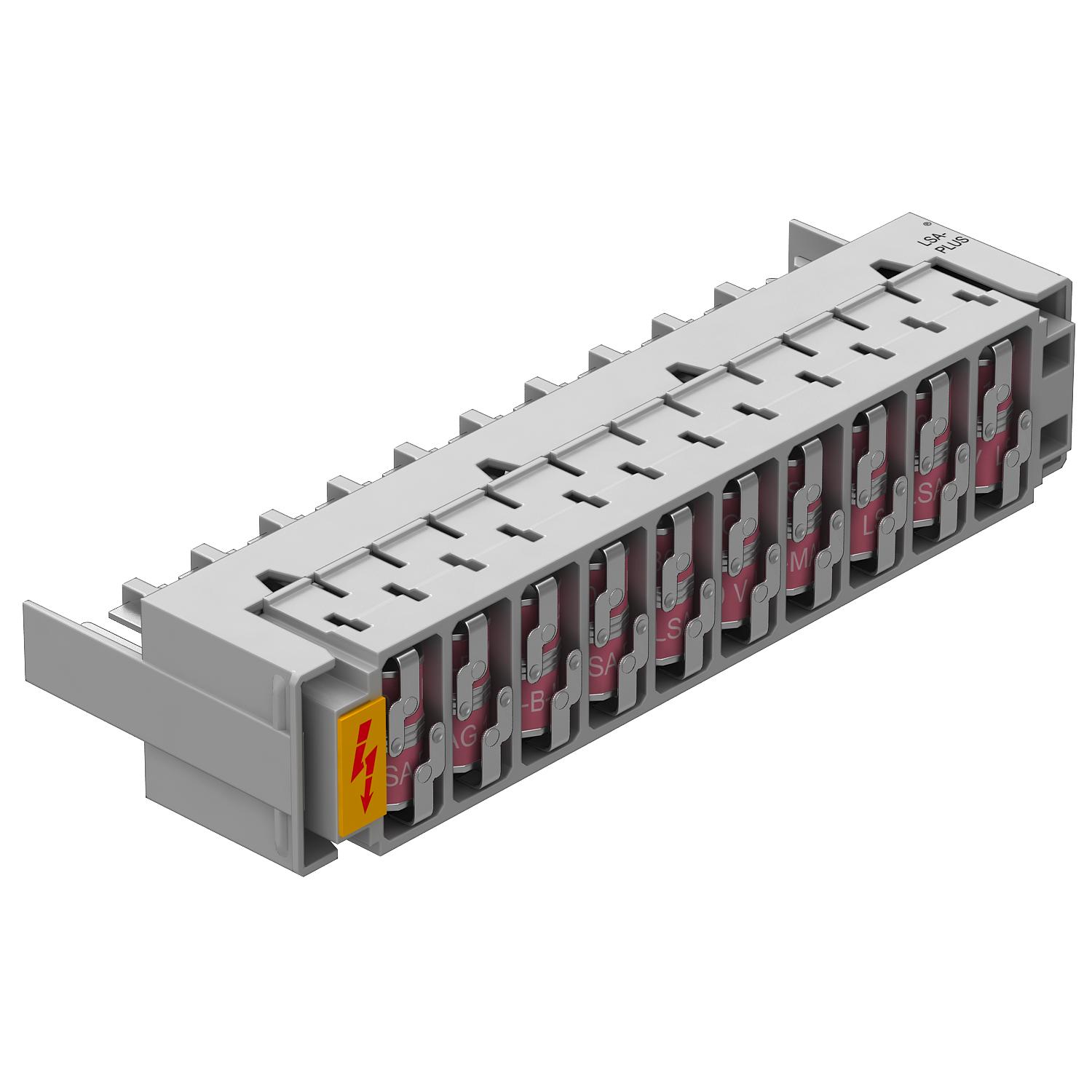

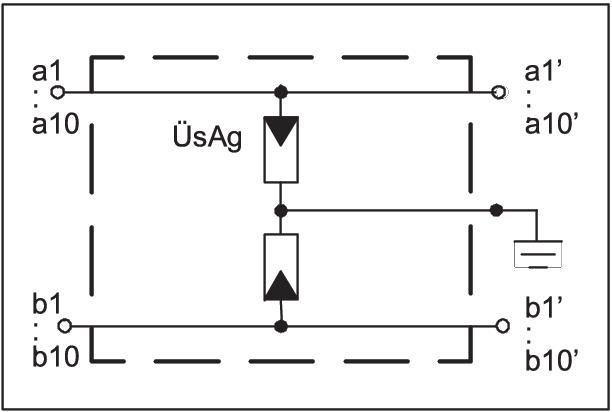

LSA basic protection magazine for use in multi-core data cable systems, MCR systems and telephone switchboards.

• Basic protection
• Equipped with 20 gas arresters
• Max. voltage: 180 V

Application: Directly on LSA-Plus separating strips or connection rails (e.g. OBO LSA-A-LEI (5084 00 8) or OBO LSA-T-LEI (5084 01 2).
Basic protection magazine to protect 10 two-cores.

Technical data

Technical data

Cable type for surge protection devices	Telecommunications line
Capacity (wire-earth)	< 10 pF
Capacity (wire-wire)	< 10 pF
Dimension	180V
Impulse durability wire-earth	C2: 10 kV / 5 kA (8/20µs)
Impulse durability wire-wire	C2: 10 kV / 5 kA (8/20µs)
Insulation resistance	> 1 GΩ
Kategorie	Type 1+2 / D1+C2
Lightning impulse current	0,5 kA
Lightning protection zone LPZ	0→2
Maximum continuous voltage AC	120
Maximum continuous voltage DC	180
Nominal load current AC	0,7

Nominal load current DC	1 A
Number of poles	20
Permitted temperature range, max.	80 °C
Permitted temperature range, min.	-40 °C
Plug-in system	Other
Protection level @ C1	<750 V
Protection rating	IP20
SPD to IEC 61643-21	Class I+II / D1+C2
Testing standard	IEC 61643-21
Total discharge current (10/350)	1
Total discharge current (8/20)	10 kA
Version for	Basic protection
