Product description

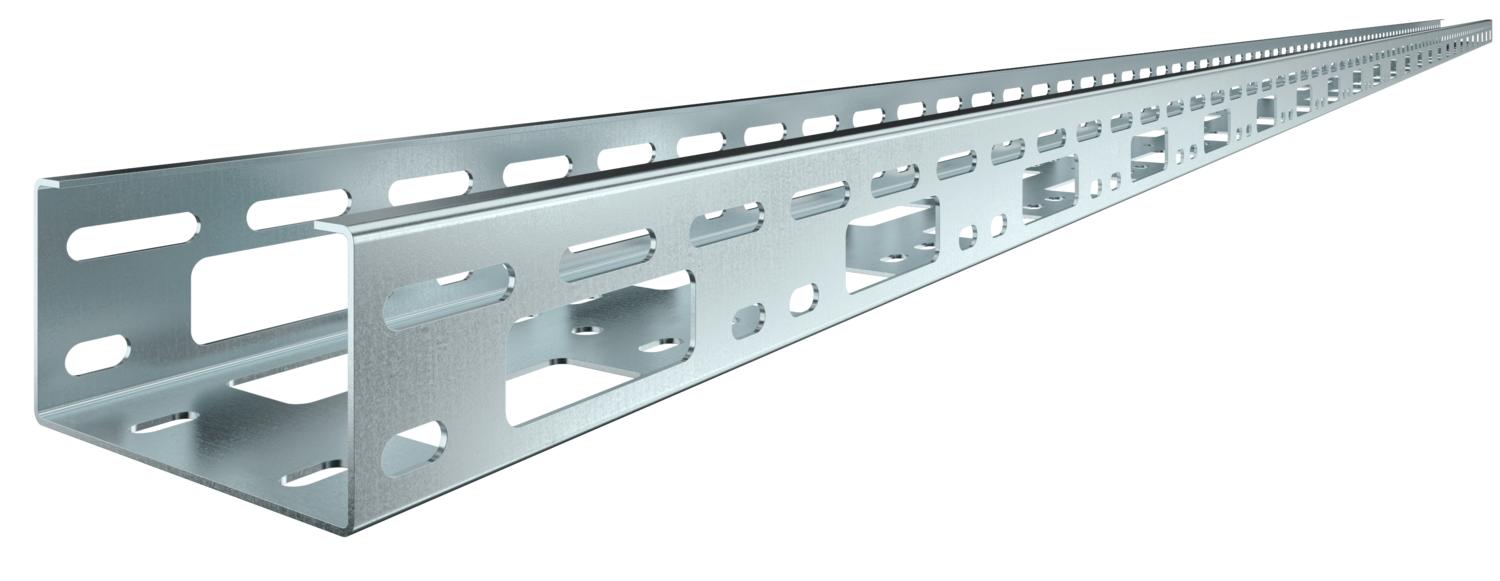

Perforated luminaire support tray for cable routing and luminaire mounting.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
-
- Technical data
-
Technical data
Connector version Without connectors Dimension 50x100x6000 Material Steel Plate thickness 1,5 mm Surface Strip galvanized Usable cross-section 46 cm² Dimensions
Height 50 mm Length 6000 mm Width 100 mm Loads
Support spacing 1.0 m 1,7 kN/m Support spacing 1.5 m 1,5 kN/m Support spacing 2.0 m 1 kN/m Support spacing 2.5 m 0,6 kN/m Support spacing 3.0 m 0,4 kN/m - All types
- Downloads
-
Data sheet LTS 100 FS / 6075024 , 0.34MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity LTS 100 FS / 6075024 , 0.13MB , pdfREACH Declaration of conformity LTS 100 FS / 6075024 , 0.12MB , pdfRoHS Declaration of conformity LTS 100 FS / 6075024 , 0.12MB , pdfMounting instructions Mounting instructions, luminaire support systems , 0.04MB , pdf
