Luminaire support channel 50 FT
Item no. 6075005 | EAN 4012196936014
- Product description
-
Product description

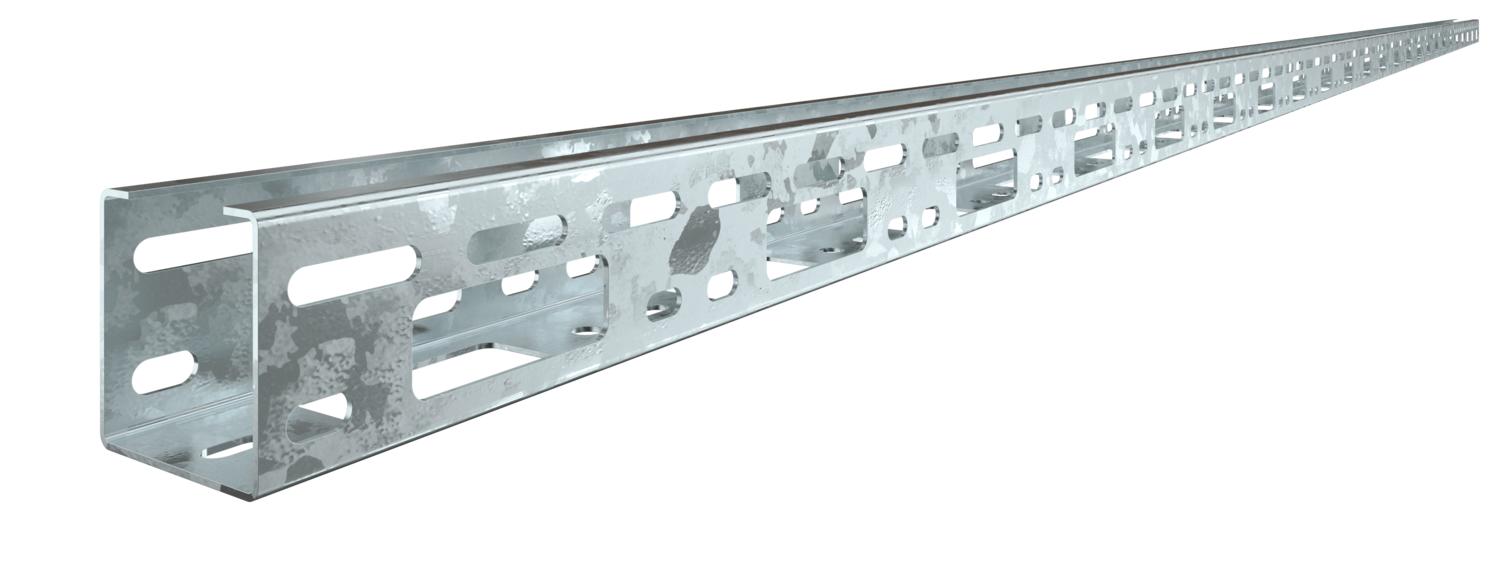

Perforated luminaire support channel for cable routing and luminaire mounting.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
-
- Technical data
-
Technical data
Connector version Without connectors Dimension 50x50x6000 Dimension B 50 mm Height 50 mm Length 6000 mm Material Steel Plate thickness 1,5 mm Support spacing 1.0 m 2,5 kN/m Support spacing 1.5 m 2 kN/m Support spacing 2.0 m 1,2 kN/m Support spacing 2.5 m 0,85 kN/m Support spacing 3.0 m 0,5 kN/m Surface Hot-dip galvanised Usable cross-section 22 cm² Width 50 mm - All types
-
System accessories
Products Types Item no. Quantity SSU
Straight connector 50 DD
VF AZK 50 DD 6066623 25 piece
915 PE cable protection ring
KSR-915 PE 6066704 25 piece
Cable protection ring 910 PE
KSR-910 PE 6066712 25 piece
90° bend
LTS B DD 6074901 1 piece
T-piece
LTS T DD 6074912 1 piece
Cross-over
LTS K DD 6074921 1 piece
Cover with turn buckle DD
AZDMD 50 DD 6080154 3 m Mounting accessories
Products Types Item no. Quantity SSU
Suspension bracket 50 FT
AHB 50 D4 FT 6066505 50 piece - Downloads
-
