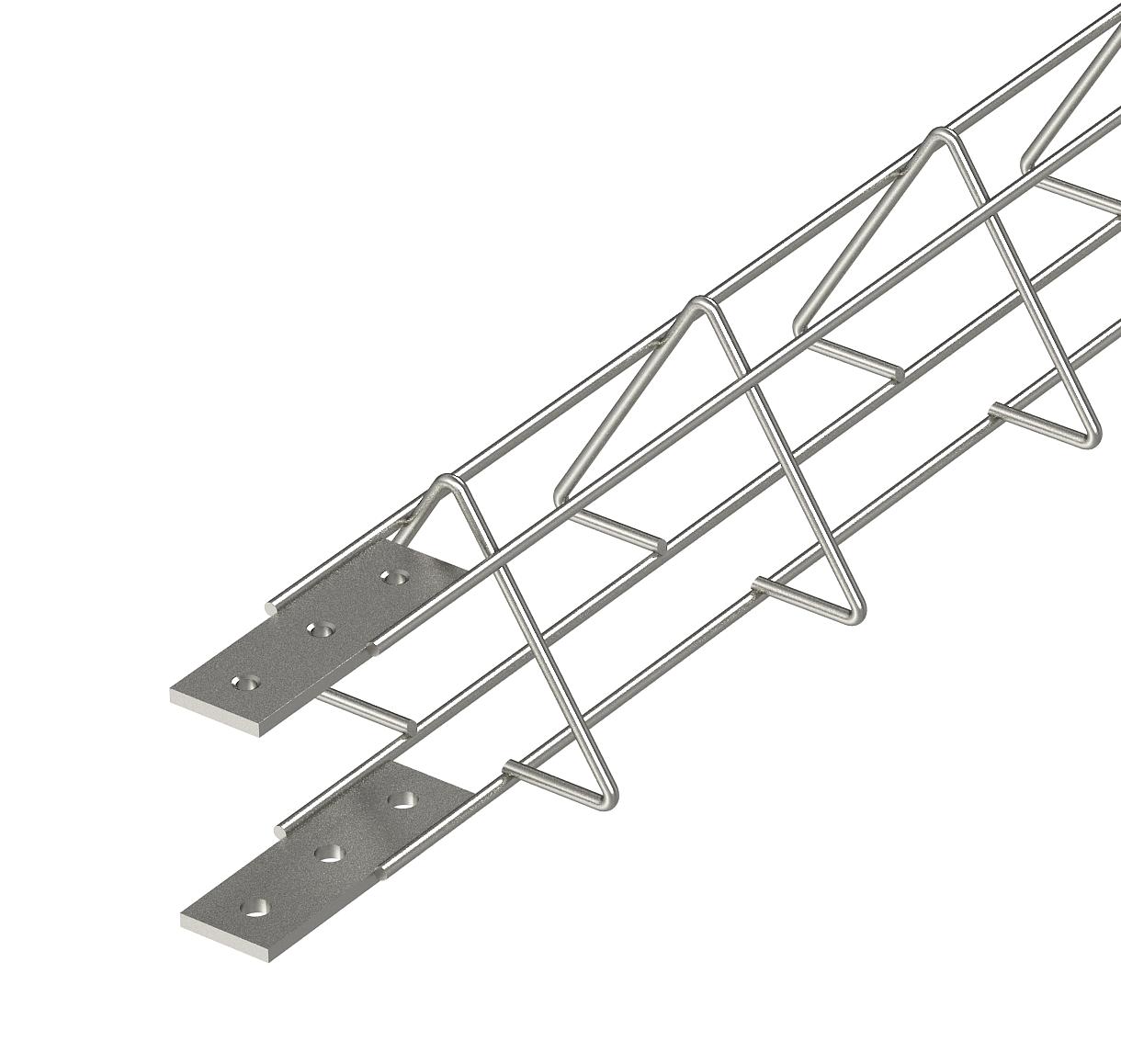

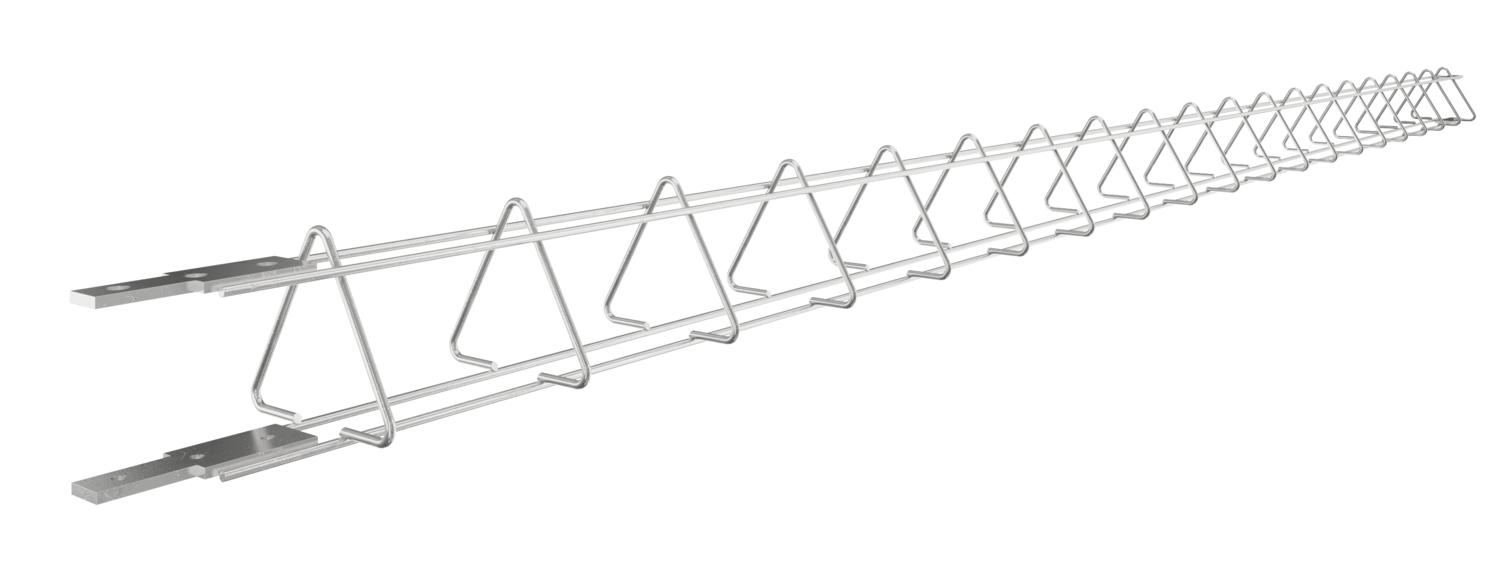

Luminaire support mesh tray

Item no. / Types	6003830 / LTG 100 A2

Length	2080 mm

Width	100 mm

Height	80 mm

Product description

Product description

Luminaire support grid for luminaire suspension. The constructive design of this system avoids larger build-ups of dirt.

Technical data

Connector version	Integrated connector

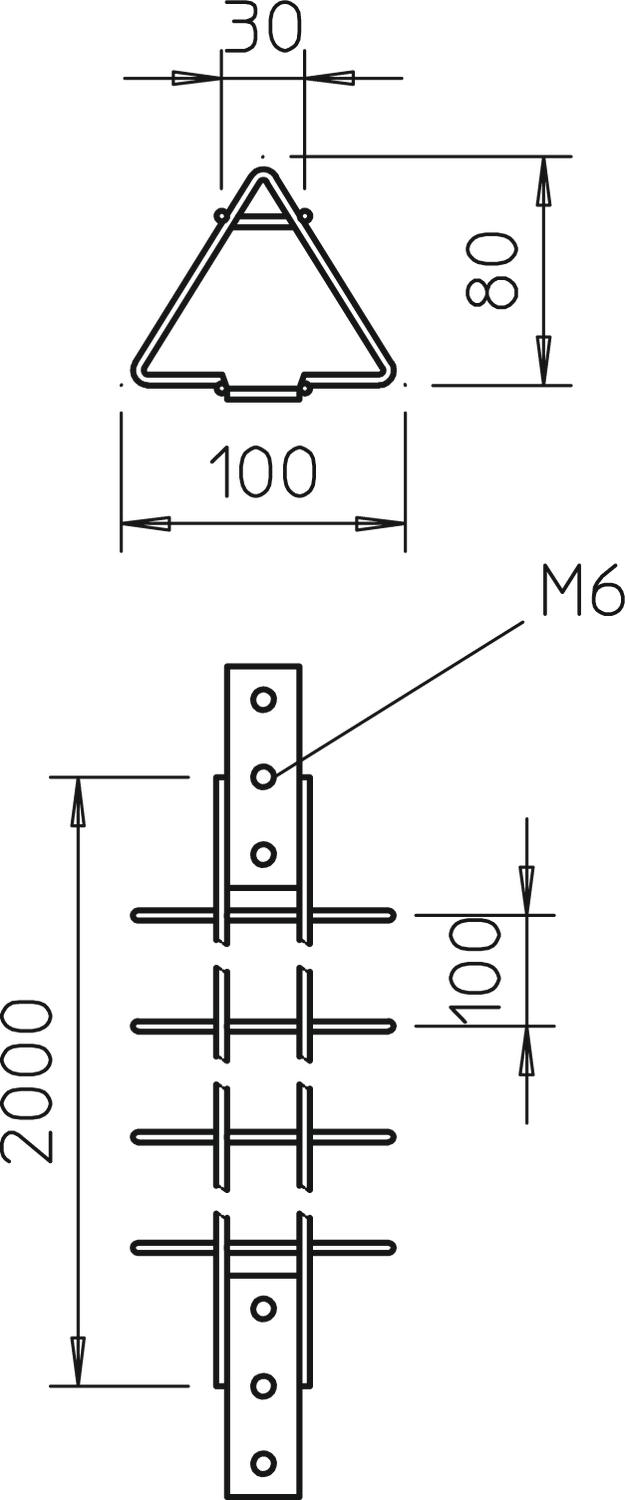

Dimension	87x80x2080
Height	80 mm
Length	2080 mm
Material	Stainless steel
Mounting perforation in base	yes

Rustproof steel, pickled	yes
Side perforation	yes
Surface	Bright, treated
Type of connector, cable support system	Screwed
Width	100 mm

All types

Types	Length	Width	Height	Item no.	Quantity	SSU
LTG 100 A2	2080 mm	100 mm	80 mm	6003830	m	2 m

Downloads

Data sheet LTG 100 A2 / 6003830 , 0.19MB , pdf

Brochure Mesh cable tray systems , 2.10MB , pdf

Catalogue Cable support systems , 2.10MB , pdf

Declaration of conformity LTG 100 A2 / 6003830 , 0.13MB , pdf

Environmental declaration Umweltproduktdeklaration (EPD) , 1.48MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

LTG 100 A2 / 6003830
