Luminaire support tray FS 3000 | 75 | 0.75 | | Steel | Strip galvanized

Luminaire support tray FS

Item no. 6055810 | EAN 4012196943876

Item no. / Types

Length

Width	75 mm

Plate thickness	0.75 mm

Material	Steel

Surface	Strip galvanized

Product description

Product description

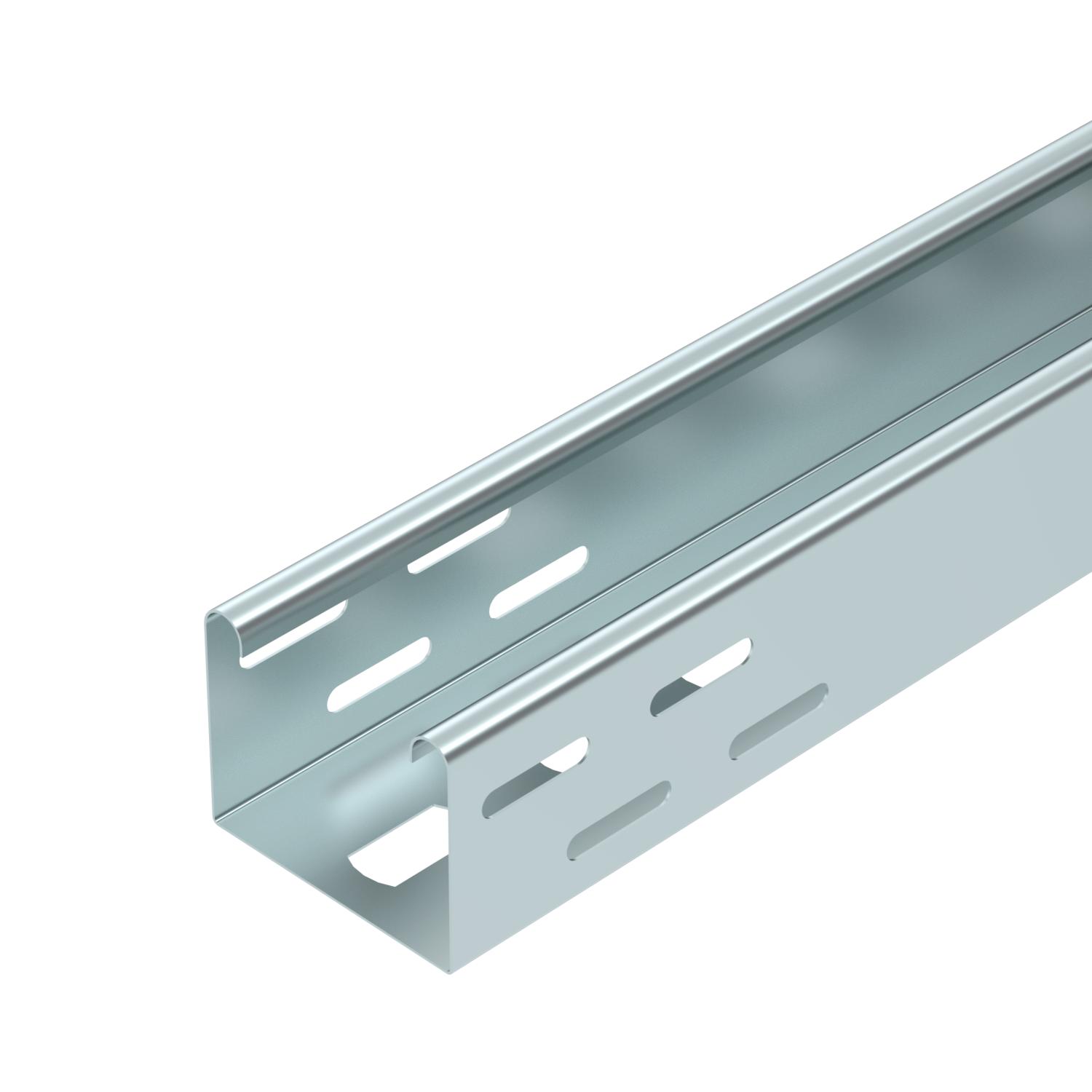

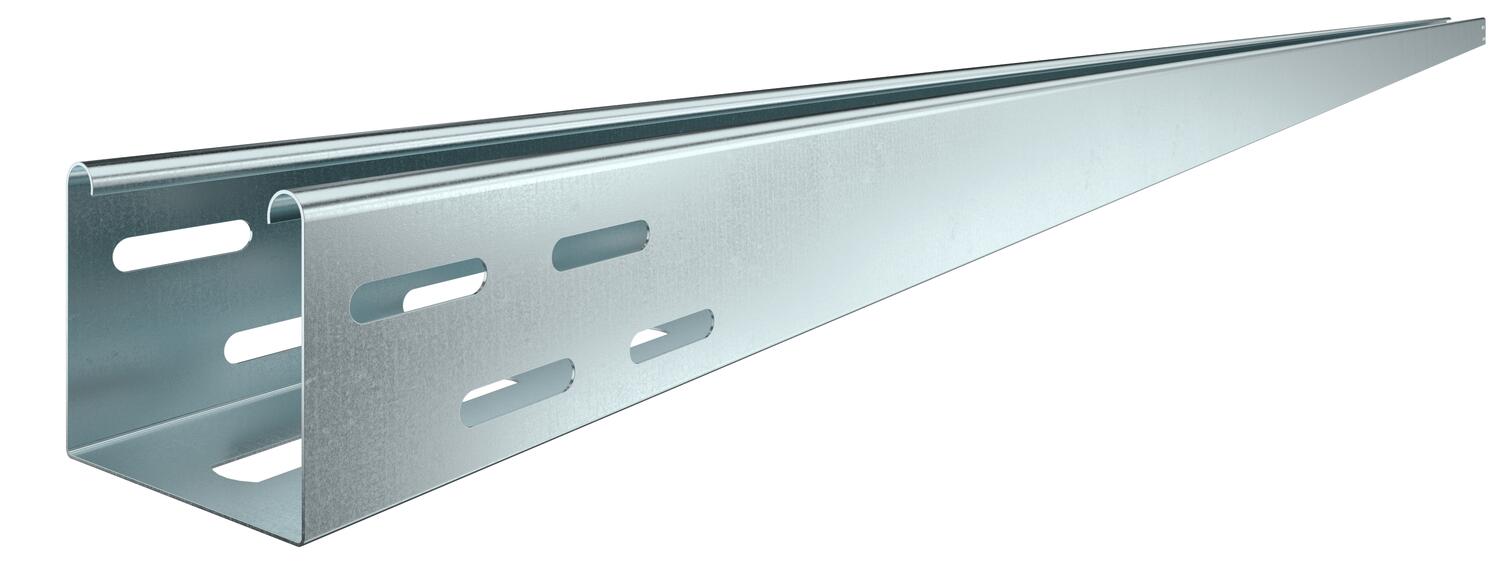

Luminaire support tray with perforated base for fastening luminaires and cable penetration.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Technical data

Connector version	Without connectors
Dimension	60x75x3000
Height	60 mm
Length	3000 mm
Load test type according to IEC 61537	Type II
Material	Steel
Mounting perforation in base	yes
Plate thickness	0,75 mm
Rustproof steel, pickled	no

Side perforation	yes
Support spacing 1.5 m	0,8 kN/m
Support spacing 2.0 m	0,55 kN/m
Support spacing 2.5 m	0,35 kN/m
Support spacing 3.0 m	0,25 kN/m
Surface	Strip galvanized
Type of connector, cable support system	Screwed
Usable cross-section	42 cm²
Width	75 mm

Technical data

Load diagram, luminaire support tray, type LTR

Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width

All types

All types

Types	Length	Width	Plate thickness	Material	Surface	Item no.	Quantity	SSU
LTR 3000 FS	3000 mm	75 mm	0.75 mm	Steel	Strip galvanized	6055810	m	3 m
LTR 6000 FS	6000 mm	75 mm	0.75 mm	Steel	Strip galvanized	6055812	m	6 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Cover with turn buckle FS	DRL 075 FS	6052029	m	3 m
Straight connector set FS	RV 607 FS	6068150	piece	10 piece

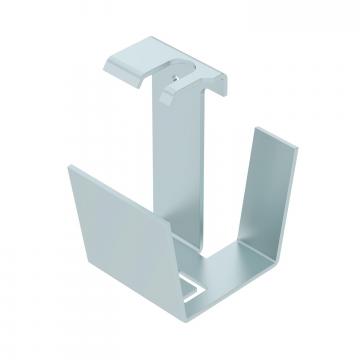

Centre suspension for luminaire support tray, FS	MAH LTR FS	6358810	piece	25 piece
