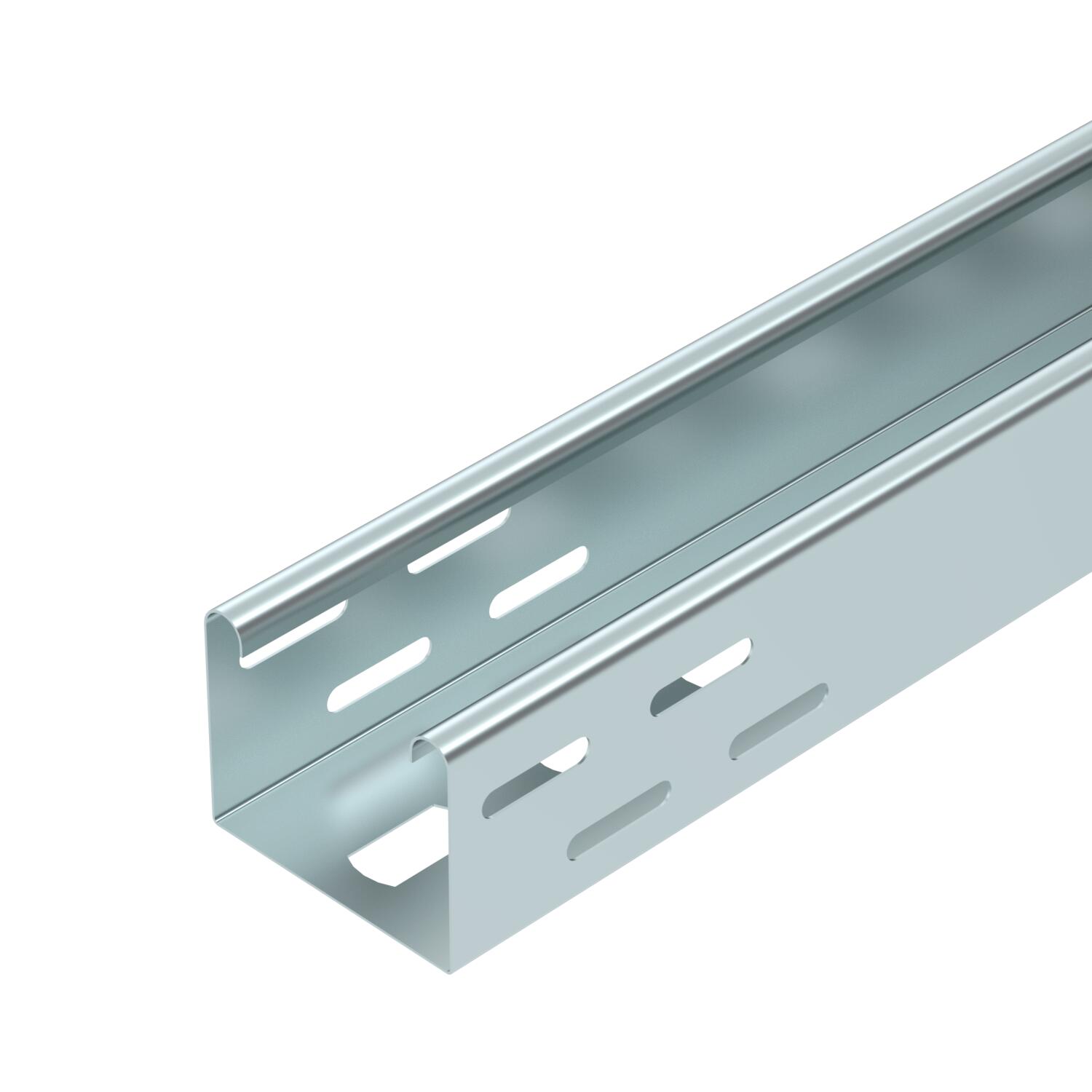

Luminaire support tray FS
Item no. 6055812 | EAN 4012196943937

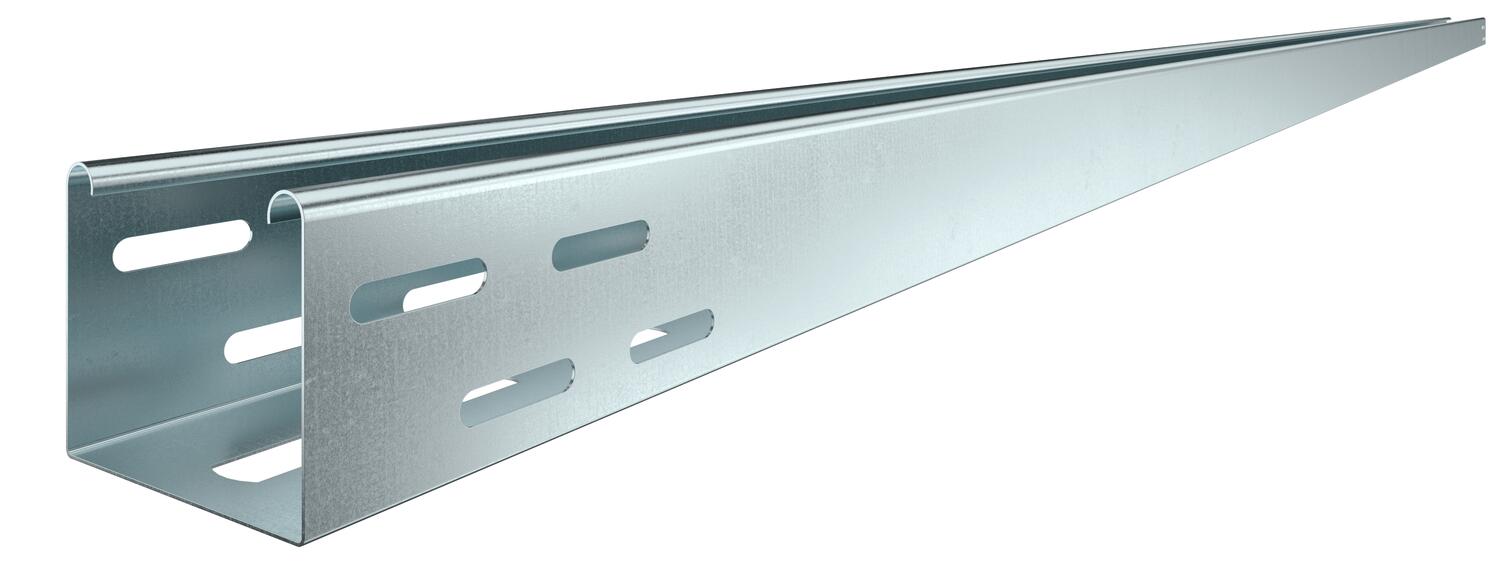

- Product description
-
Product description
Luminaire support tray with perforated base for fastening luminaires and cable penetration.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
-
- Technical data
-
Technical data
Connector version Without connectors Dimension 60x75x6000 Height 60 mm Length 6000 mm Load test type according to IEC 61537 Type II Material Steel Mounting perforation in base yes Plate thickness 0,75 mm Rustproof steel, pickled no Side perforation yes Support spacing 1.5 m 0,8 kN/m Support spacing 2.0 m 0,55 kN/m Support spacing 2.5 m 0,35 kN/m Support spacing 3.0 m 0,25 kN/m Surface Strip galvanized Type of connector, cable support system Screwed Usable cross-section 42 cm² Width 75 mm Technical data
Load diagram, luminaire support tray, type LTR
-
Permitted cable tray/ladder load in kN/m without man load
-
Support width in m
-
Rail bend in mm at permitted kN/m
-
Load scheme during testing
-
Load curve with cable tray/ladder width in mm
-
Strut bend curve according to support width
-
- All types
-
System accessories
Products Types Item no. Quantity SSU
Cover with turn buckle FS
DRL 075 FS 6052029 3 m
Straight connector set FS
RV 607 FS 6068150 10 piece
Centre suspension for luminaire support tray, FS
MAH LTR FS 6358810 25 piece - Downloads
-
Data sheet LTR 6000 FS / 6055812 , 0.20MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity LTR 6000 FS / 6055812 , 0.10MB , pdfREACH Declaration of conformity LTR 6000 FS / 6055812 , 0.12MB , pdfRoHS Declaration of conformity LTR 6000 FS / 6055812 , 0.12MB , pdfEnvironmental declaration Umweltproduktdeklaration (EPD) , 1.48MB , pdfMounting instructions Mounting instructions, luminaire support systems , 0.04MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
