Luminaire support tray, pure white
Item no. 6055820 | EAN 4012195163329
- Product description
-
Product description

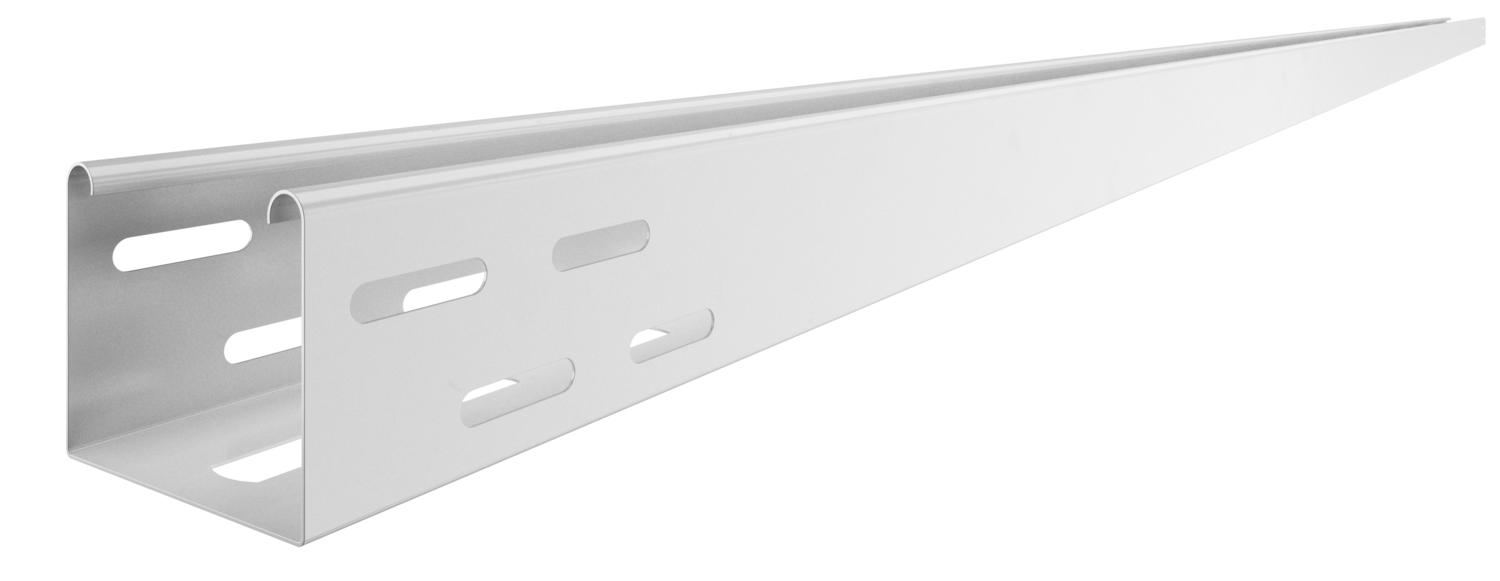

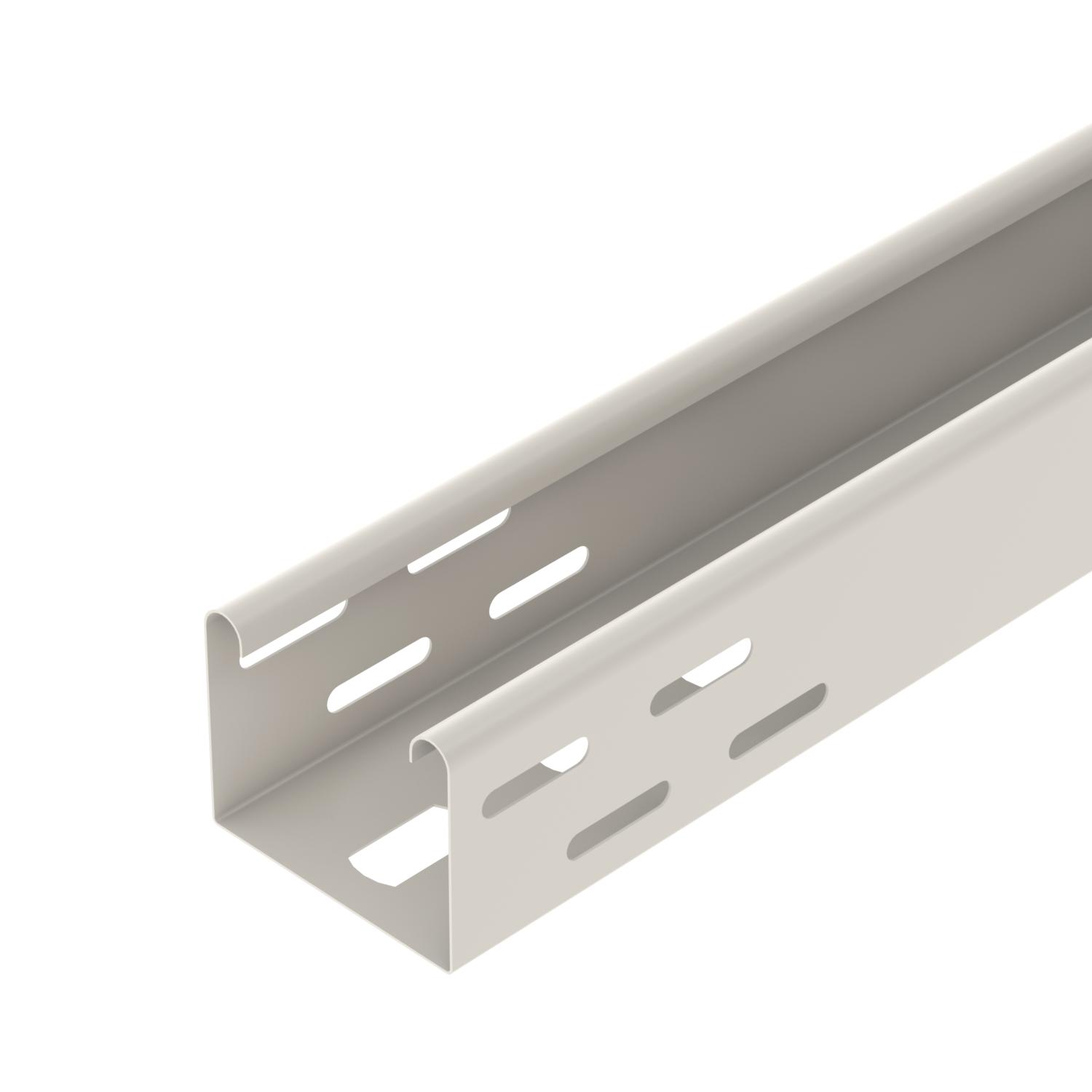

Luminaire support tray with perforated base for fastening luminaires and cable penetration.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
-
- Technical data
-
Technical data

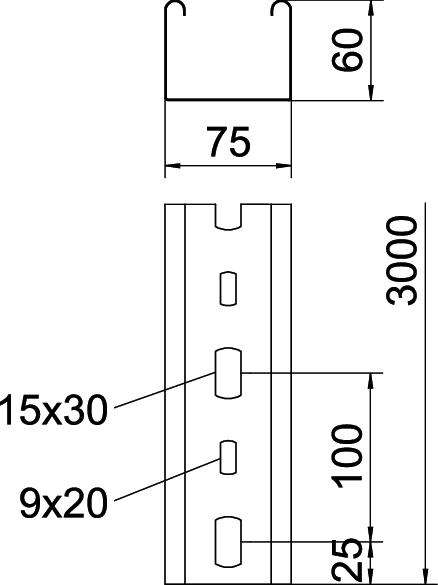

Colour Pure white; RAL 9010 Connector version Without connectors Dimension 60x75x3000 Height 60 mm Length 3000 mm Load test type according to IEC 61537 Type II Material Steel Mounting perforation in base yes Plate thickness 0,75 mm Rustproof steel, pickled no Side perforation yes Support spacing 1.5 m 0,8 kN/m Support spacing 2.0 m 0,55 kN/m Support spacing 2.5 m 0,35 kN/m Support spacing 3.0 m 0,25 kN/m Surface PES50 - Polyester/epoxy Type of connector, cable support system Screwed Usable cross-section 42 cm² Width 75 mm Technical data
Load diagram, luminaire support tray, type LTR
-
Permitted cable tray/ladder load in kN/m without man load
-
Support width in m
-
Rail bend in mm at permitted kN/m
-
Load scheme during testing
-
Load curve with cable tray/ladder width in mm
-
Strut bend curve according to support width
-
