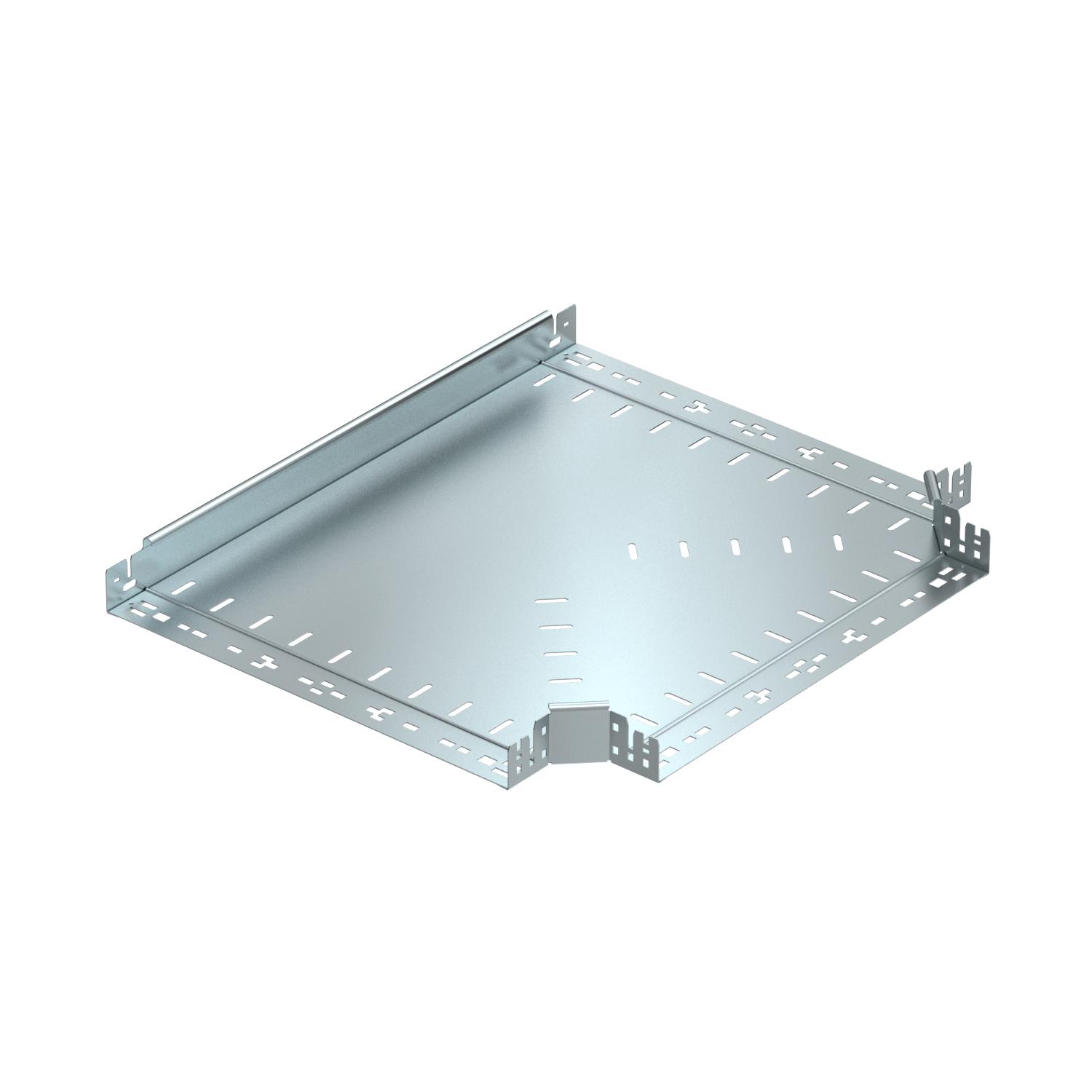

Magic tee 60FS
Item no. 6041330 | EAN 4012195879107
- Product description
-
Product description
Tee branch piece with quick connector system. For all cable tray types of 60 mm side height.
-
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Horizontal Connector version Integrated connector Dimension 60x500 Dimension B 500 mm Fire protection Use of fire protection ceilings Height 60 mm Maintain electrical functions no Material Steel NATO hole pattern no Plate thickness 1,25 mm Rail thickness 1,25 mm Rustproof steel, pickled no Surface Strip galvanized Type T piece horizontal Type of connector, cable support system Screwed Wide-span version no Width 20 in Width 500 mm - All types
- Downloads
-
Data sheet RTM 650 FS / 6041330 , 0.23MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity RTM 650 FS / 6041330 , 0.10MB , pdfUK Declaration of Conformity RTM 650 FS / 6041330 , 0.14MB , pdfREACH Declaration of conformity RTM 650 FS / 6041330 , 0.12MB , pdfRoHS Declaration of conformity RTM 650 FS / 6041330 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
