Magnetic card PCS

Item no. 5091438 | EAN 4012195461296

Product description

Product description

Peak Current Sensor (PCS) card for recording pulsed/lightning currents. A continuous check of whether lightning has struck the lightning protection system and how high the most recent lightning current was in kA can be carried out easily by the system operator, a specialist lightning protection company or by a surveyor. Here, the printed maintenance circuit and the labelling panels support the maintenance work of the entire lightning protection system, which must be performed at defined intervals according to VDE 0185-305-3 (IEC/EN 62305-3).


· Contents = 10 pieces
· Digital evaluation via the PCS card reading device
· Can be used in addition to the OBO lightning current meter LSC I+II
· With separate labelling panels: "Erected by", "Tested by", "Card code"
· Integrated maintenance circuit (year/month)


Technical data

Technical data

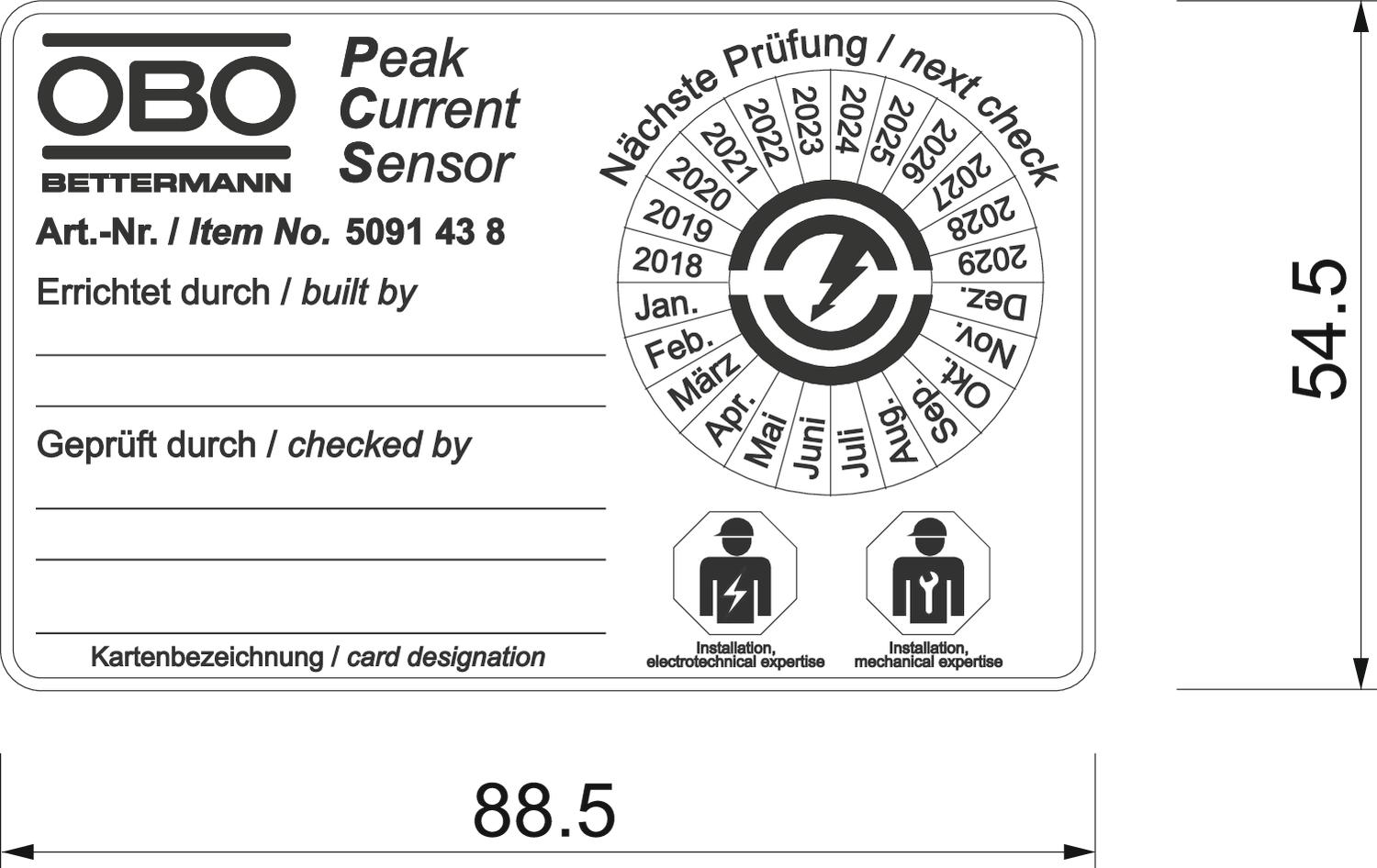

Dimension 85,7 x 54 mm
Permitted temperature range, max. 85 °C
Permitted temperature range, min. -35 °C
All types

All types

Types Item no. Quantity SSU
PCS 5091438
1 PU
Accessories

Mounting accessories

Products Types Item no. Quantity SSU

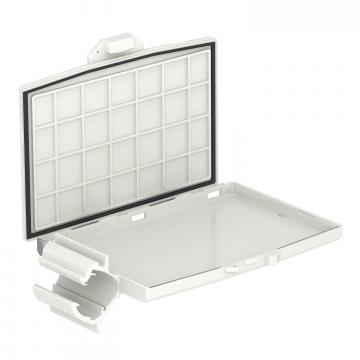

Magnetic card holder PCS-H Magnetic card holder PCS-H PCS-H 5091527
1 PU
