Marking spreading tool for drop-in anchors 225 | M6

morepic-1

morepic-2

Marking spreading tool for drop-in anchors

Item no. 3492964 | EAN 4012196709687

Item no. / Types

Length

Thread

Product description

Product description

Marking spreading tool with hand protection for drop-in anchors, type E

Technical data

Technical data

Colour	zinc
Dimension	6x25
Length	225 mm
Material	Steel

Pin dimension	6 mm
Surface	Electrogalvanized
Thread	M6
With hand protection	yes

All types

All types

Types	Length	Thread	Item no.	Quantity	SSU
E-MSH 6x25	225 mm	M6	3492964	piece	1 piece
E-MSH 8x25	225 mm	M8	3492966	piece	1 piece
E-MSH 8x30	230 mm	M8	3492968	piece	1 piece
E-MSH 10x25	230 mm	M10	3492971	piece	1 piece
E-MSH 12x25	235 mm	M12	3492973	piece	1 piece
E-MSH 10x40	235 mm	M10	3492974	piece	1 piece
E-MSH 12x50	240 mm	M12	3492978	piece	1 piece

Downloads

Data sheet E-MSH 6x25 / 3492964 , 0.15MB , pdf

Guide Fire protection in electrical engineering – A guide to fireproof building installations , 2.10MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Zwischendeckeninstallationen , 2.70MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

REACH Declaration of conformity E-MSH 6x25 / 3492964 , 0.12MB , pdf

Download

Mounting instructions General information on the mounting , 2.61MB , pdf

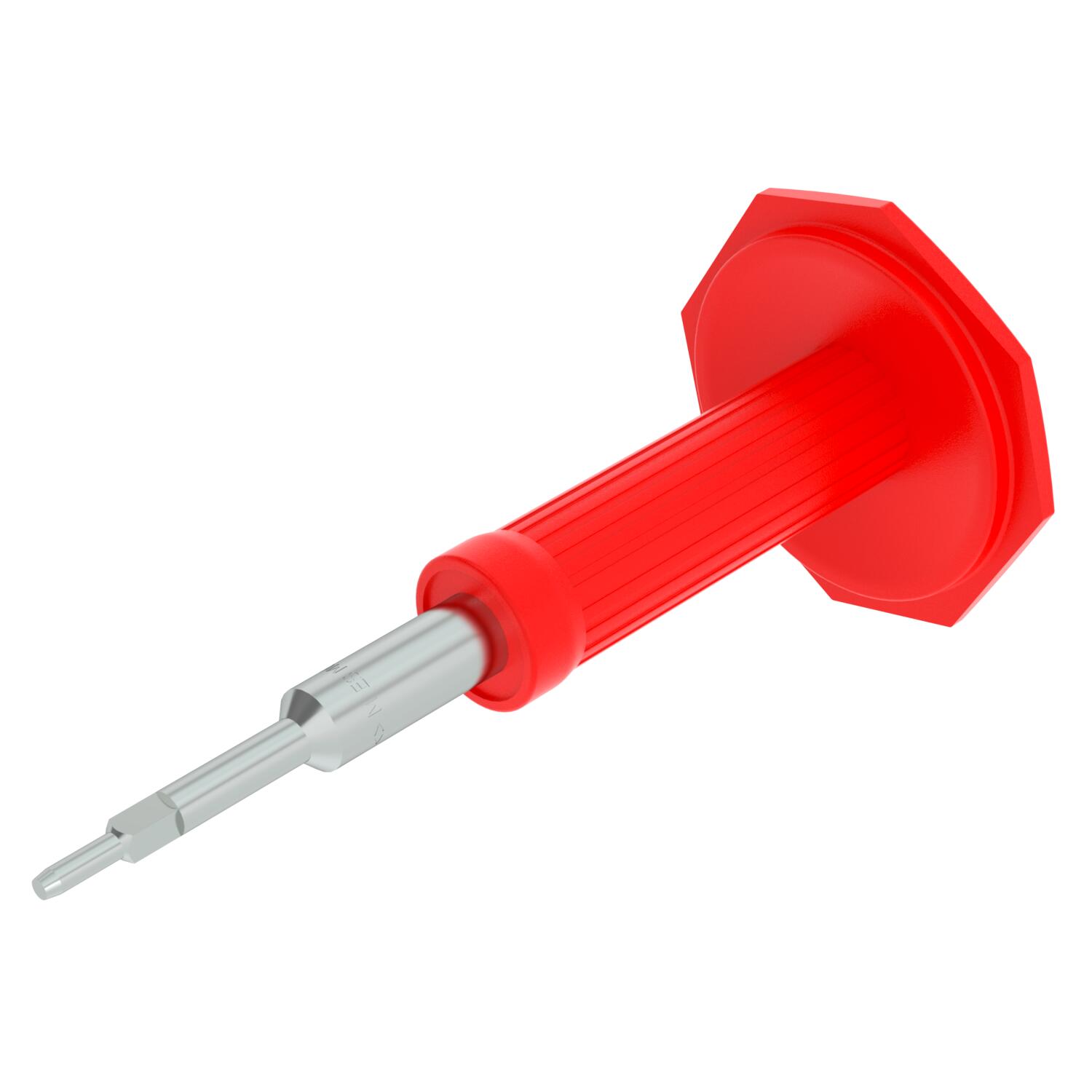

Product graphic E-MSH 6x25 / 3492964, 53.02 kB, jpg

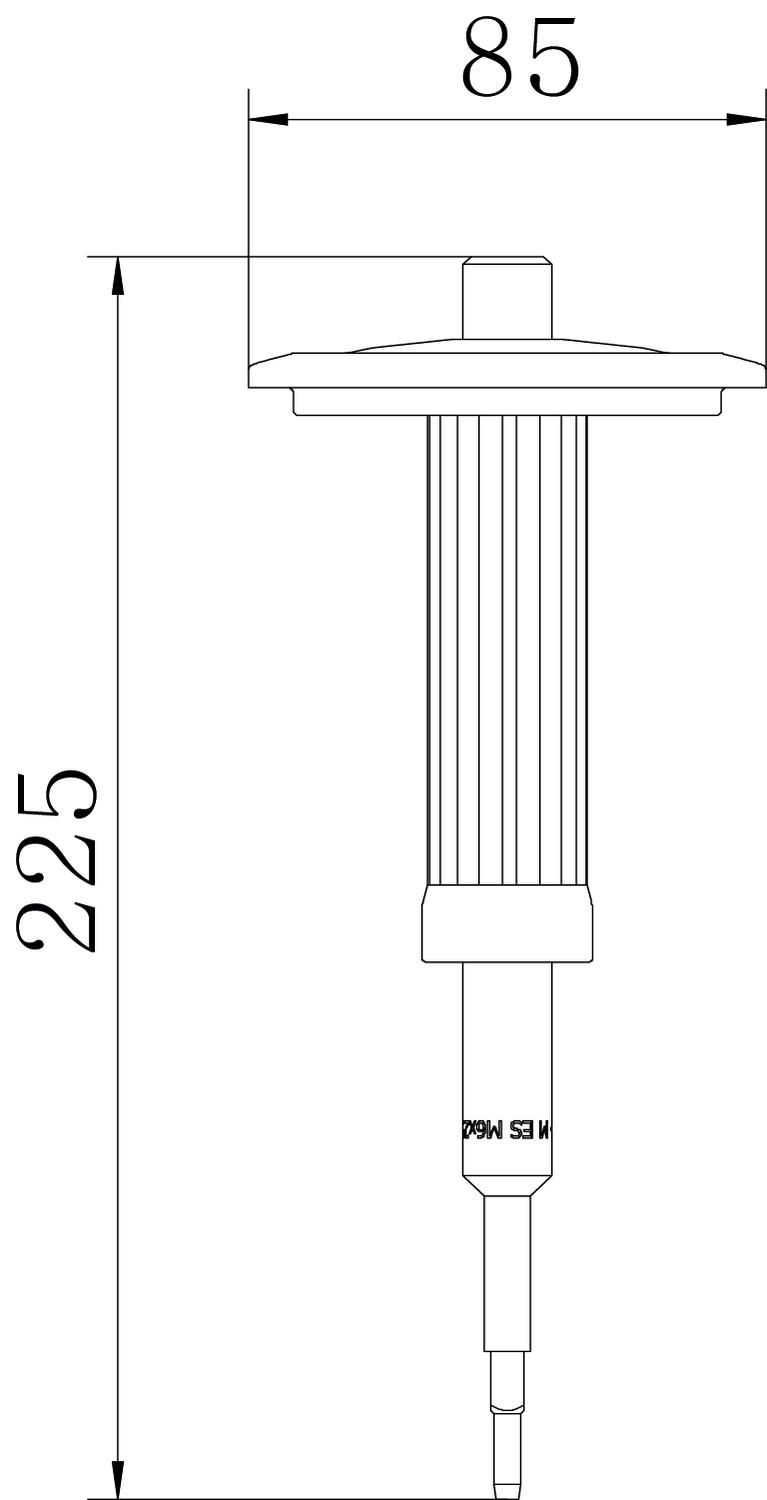

Scale drawing E-MSH 6x25 / 3492964, 39.97 kB, jpg

E-MSH 6x25 / 3492964

Markier- und Spreizwerkzeug E-MSH 6x25.rfa, 360.00 kB
