Marking spreading tool for drop-in anchors 230 | M10

morepic-1

morepic-2

Marking spreading tool for drop-in anchors

Item no. 3492971 | EAN 4012196709748

Item no. / Types

Length

Thread

Product description

Product description

Marking spreading tool with hand protection for drop-in anchors, type E

Technical data

Technical data

Colour	zinc
Dimension	10x25
Length	230 mm
Material	Steel

Pin dimension	10 mm
Surface	Electrogalvanized
Thread	M10
With hand protection	yes

All types

All types

Types	Length	Thread	Item no.	Quantity	SSU
E-MSH 6x25	225 mm	M6	3492964	piece	1 piece
E-MSH 8x25	225 mm	M8	3492966	piece	1 piece
E-MSH 8x30	230 mm	M8	3492968	piece	1 piece
E-MSH 10x25	230 mm	M10	3492971	piece	1 piece
E-MSH 12x25	235 mm	M12	3492973	piece	1 piece
E-MSH 10x40	235 mm	M10	3492974	piece	1 piece
E-MSH 12x50	240 mm	M12	3492978	piece	1 piece

Downloads

Data sheet E-MSH 10x25 / 3492971 , 0.15MB , pdf

Guide Fire protection in electrical engineering – A guide to fireproof building installations , 2.10MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Zwischendeckeninstallationen , 2.70MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

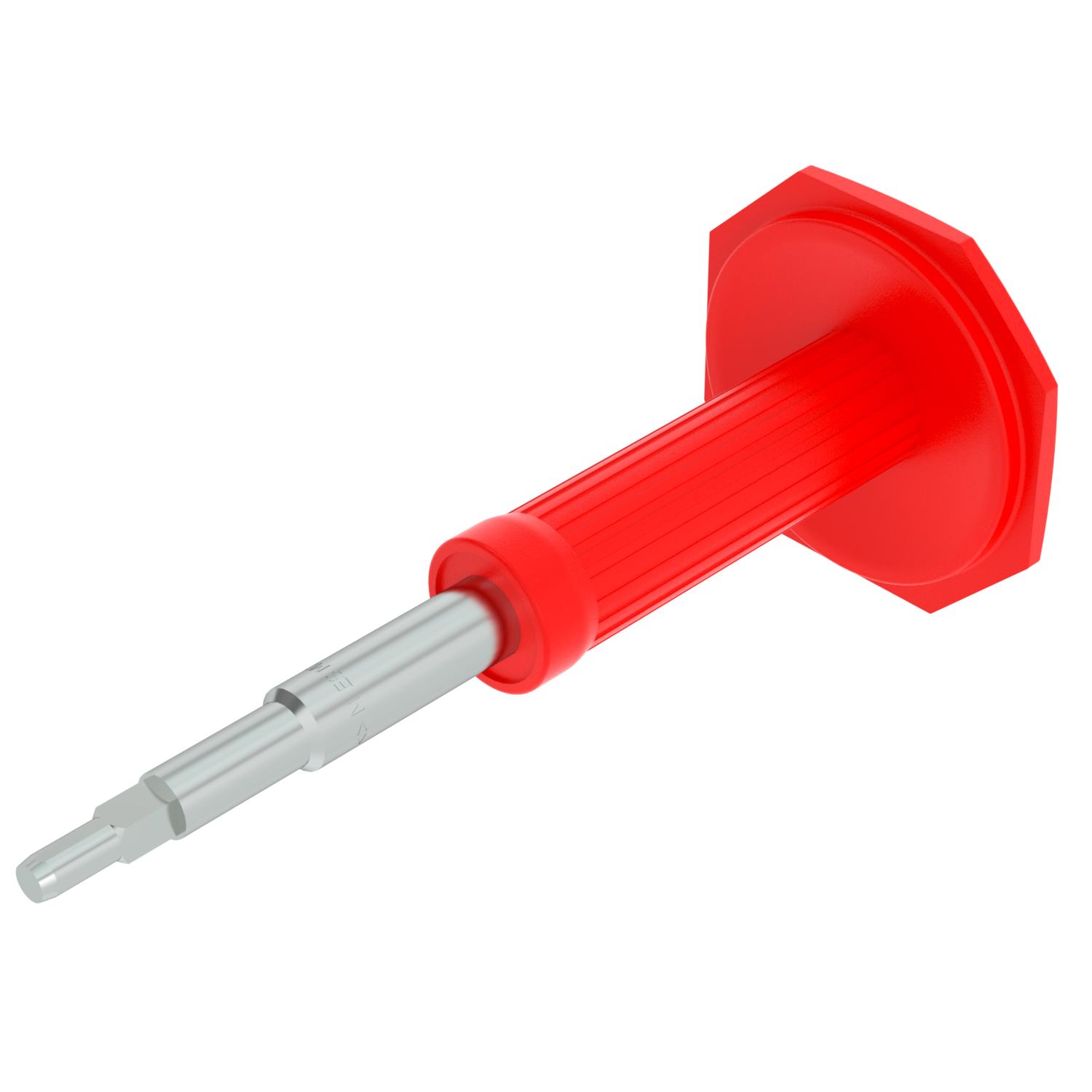

Product graphic E-MSH 10x25 / 3492971, 53.87 kB, jpg

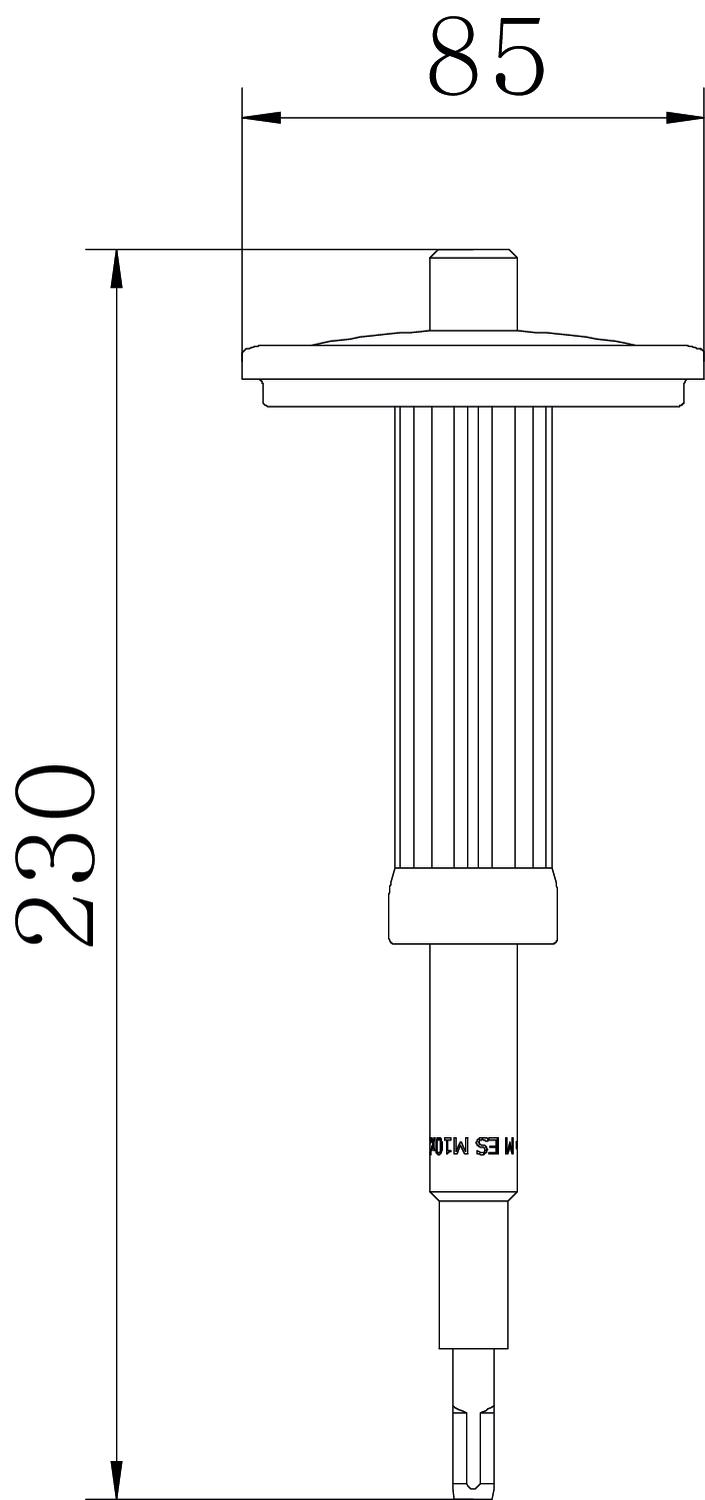

Scale drawing E-MSH 10x25 / 3492971, 37.63 kB, jpg
