Marking spreading tool for drop-in anchors 235 | M10

morepic-1

morepic-2

Marking spreading tool for drop-in anchors

Item no. 3492974 | EAN 4012196412044

Item no. / Types

Length

Thread

Product description

Product description

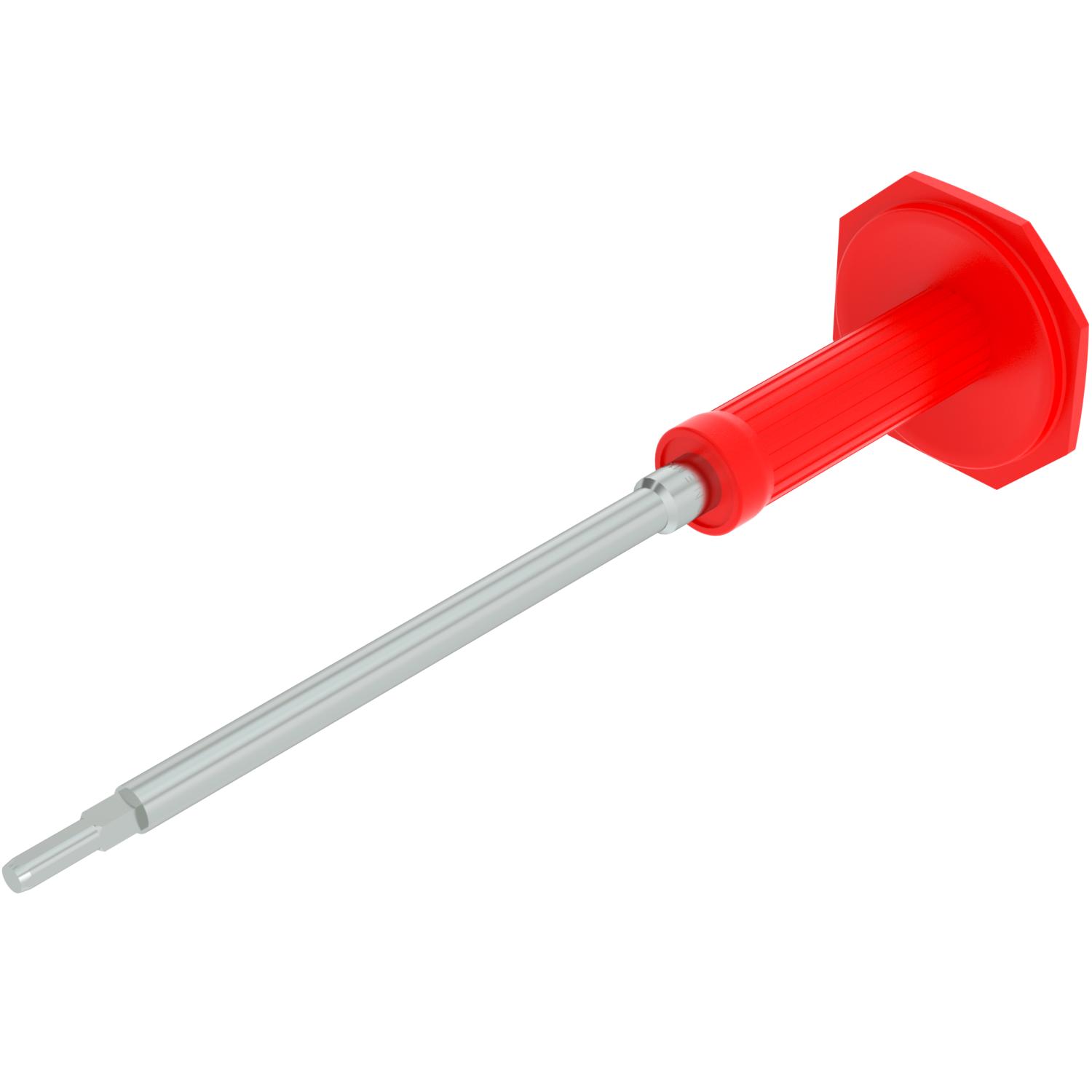

Marking spreading tool with hand protection for drop-in anchors, type E

Technical data

Technical data

Colour	zinc
Length	235 mm
Material	Steel
Pin dimension	10 mm

Surface	Electrogalvanized
Thread	M10
With hand protection	yes

All types

All types

Types	Length	Thread	Item no.	Quantity	SSU
E-MSH 6x25	225 mm	M6	3492964	piece	1 piece
E-MSH 8x25	225 mm	M8	3492966	piece	1 piece
E-MSH 8x30	230 mm	M8	3492968	piece	1 piece
E-MSH 10x25	230 mm	M10	3492971	piece	1 piece
E-MSH 12x25	235 mm	M12	3492973	piece	1 piece
E-MSH 10x40	235 mm	M10	3492974	piece	1 piece
E-MSH 12x50	240 mm	M12	3492978	piece	1 piece
