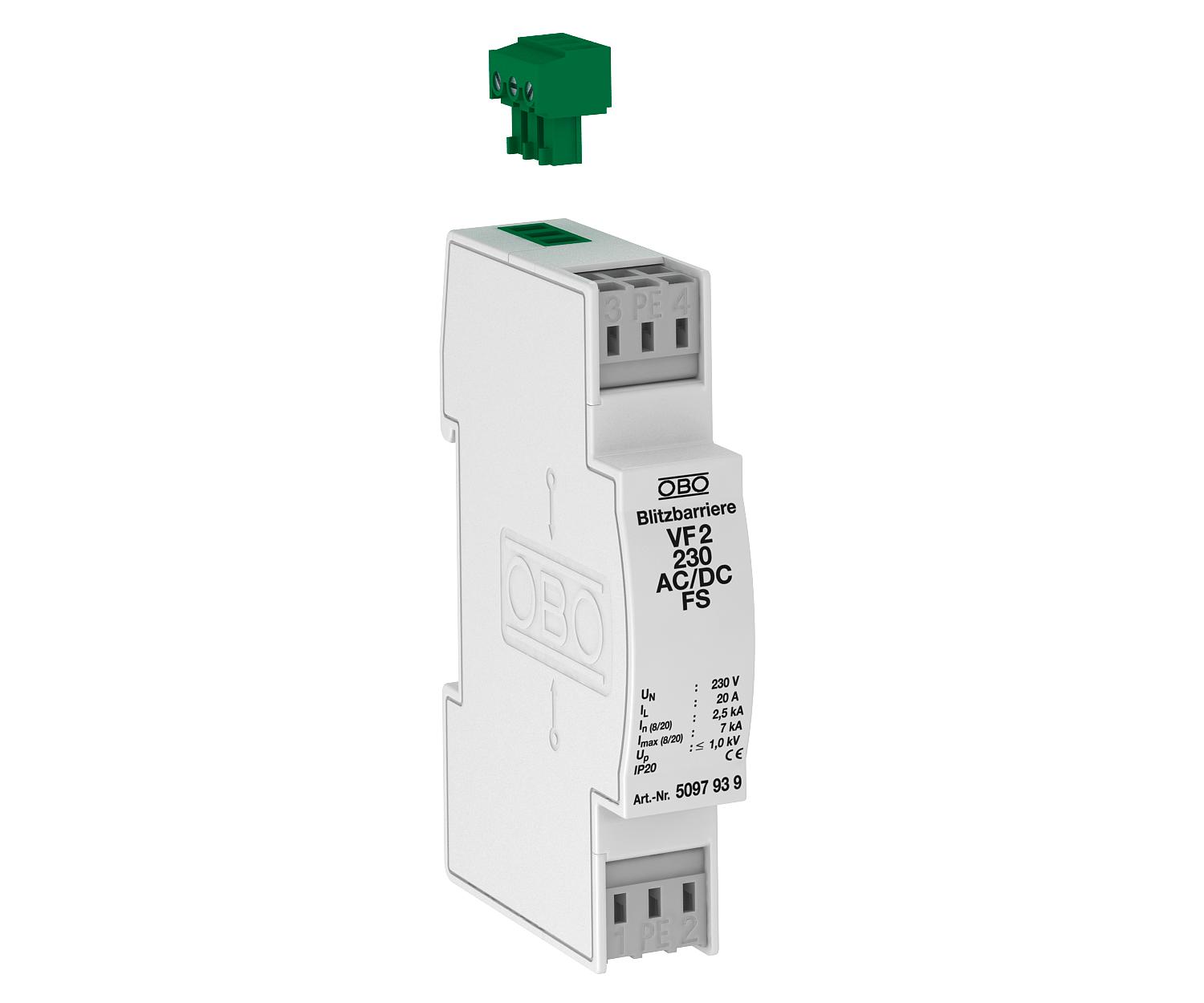

MCR protection for 2-pole for power supply with leak current-free remote signalling, 230 V AC/DC | 255 | 350 | IP20

MCR protection for 2-pole for power supply with leak current-free remote signalling, 230 V AC/DC

Item no. 5097939 | EAN 4012195578260

Item no. / Types	5097939 / VF2-230-AC/DC-FS

Maximum continuous voltage AC	255 V

Maximum continuous voltage DC	350 V

Protection rating	IP20

Product description

Product description

Type 3 surge protection/fine network protection to EN 61643-11 with leak current-free remote signalling

• With remote signalling: potential-free NC contact for function monitoring

• With installation-friendly, screwless connection terminals

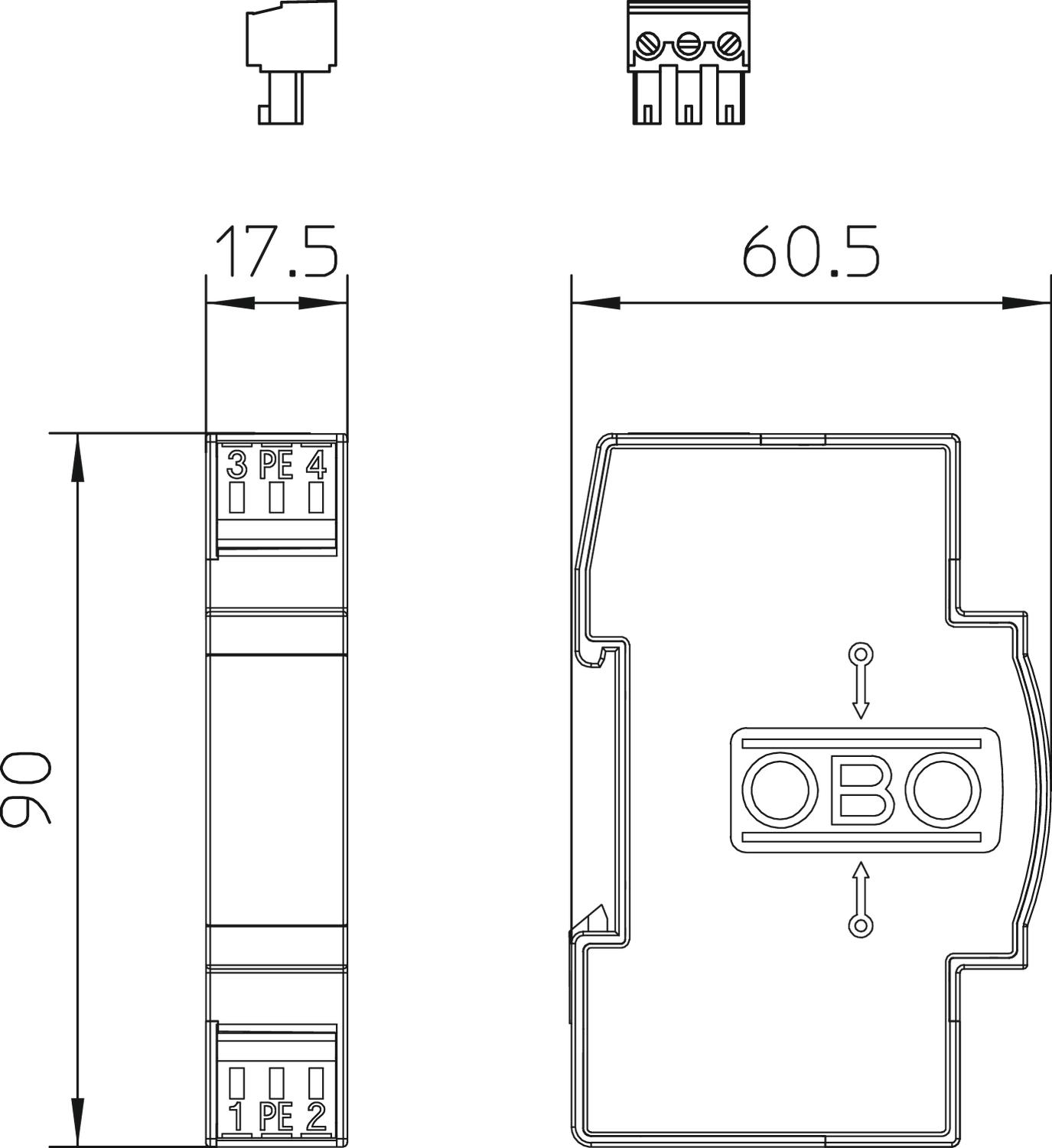

• In space-saving 17.5 mm grid

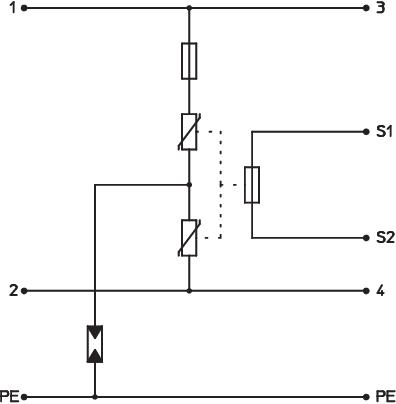

• Y circuit

Application: Universal use on 35 mm DIN profile rails in any standard distributor housing.

Technical data

Technical data

Blow-out	no
Cable type for surge protection devices	Power cable AV
Conductor cross-section, rigid (single-wire/multiwire), max.	2,5 mm²
Conductor cross-section, rigid (single-wire/multiwire), min.	0,14 mm²
Dimension	230V AC
FM contacts	NC contact
Installation type	DIN rail 35 mm
Lightning protection zone LPZ	2→3
Maximum continuous voltage AC	255 V
Maximum continuous voltage DC	350 V
Maximum discharge current (8/20 μs)	7 kA
Network form	Other
Nominal discharge current (8/20 µs)	2,5 kA
OBO_Nominal load current (input/output terminal)	20 A

Operating temperature, max.	80 °C
Operating temperature, min.	-40 °C
Pole number	3
Protection level wire-earth	< 1400 V
Protection level wire-wire	< 1000 V
Protection level [L-N]	≤1000
Protection rating	IP20
Remote signalling	yes
Response time	<25 ns
Signalling on device	None
SPD to EN 61643-11	Type 3
SPD to IEC 61643-1	Class III
Test class, type 3	yes
