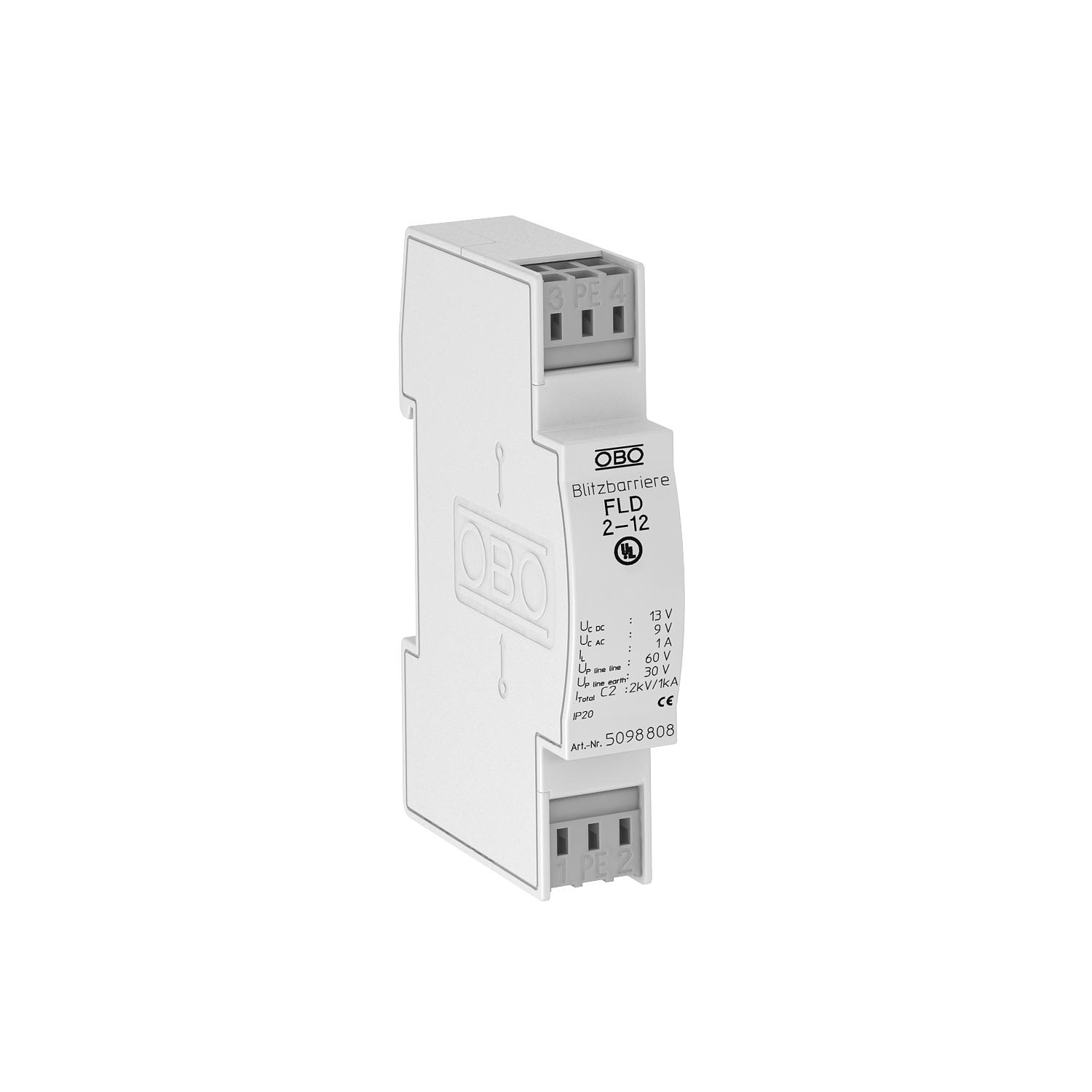

Medium and fine protection FLD 2 for two-core systems 12 V

Item no. 5098808 | EAN 4012195578444

2
Terminal
Product description

Product description

Surge protection for use in measurement and control technology


• Medium and fine protection

• Standard design for single core systems

• Two-stage protection circuit

• With installation-friendly, screwless connection terminals

• In space-saving 17.5 mm grid

• With inductive decoupling in the longitudinal branch


Application: Universal use on any 35 mm DIN profile rail in every commercially available distributor housing.
  • Underwriters Laboratories Inc., USA
  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Transition from LPZ 0 to LPZ 3
  • Measuring, controlling and regulating systems
  • Installation electrotechnical expertise

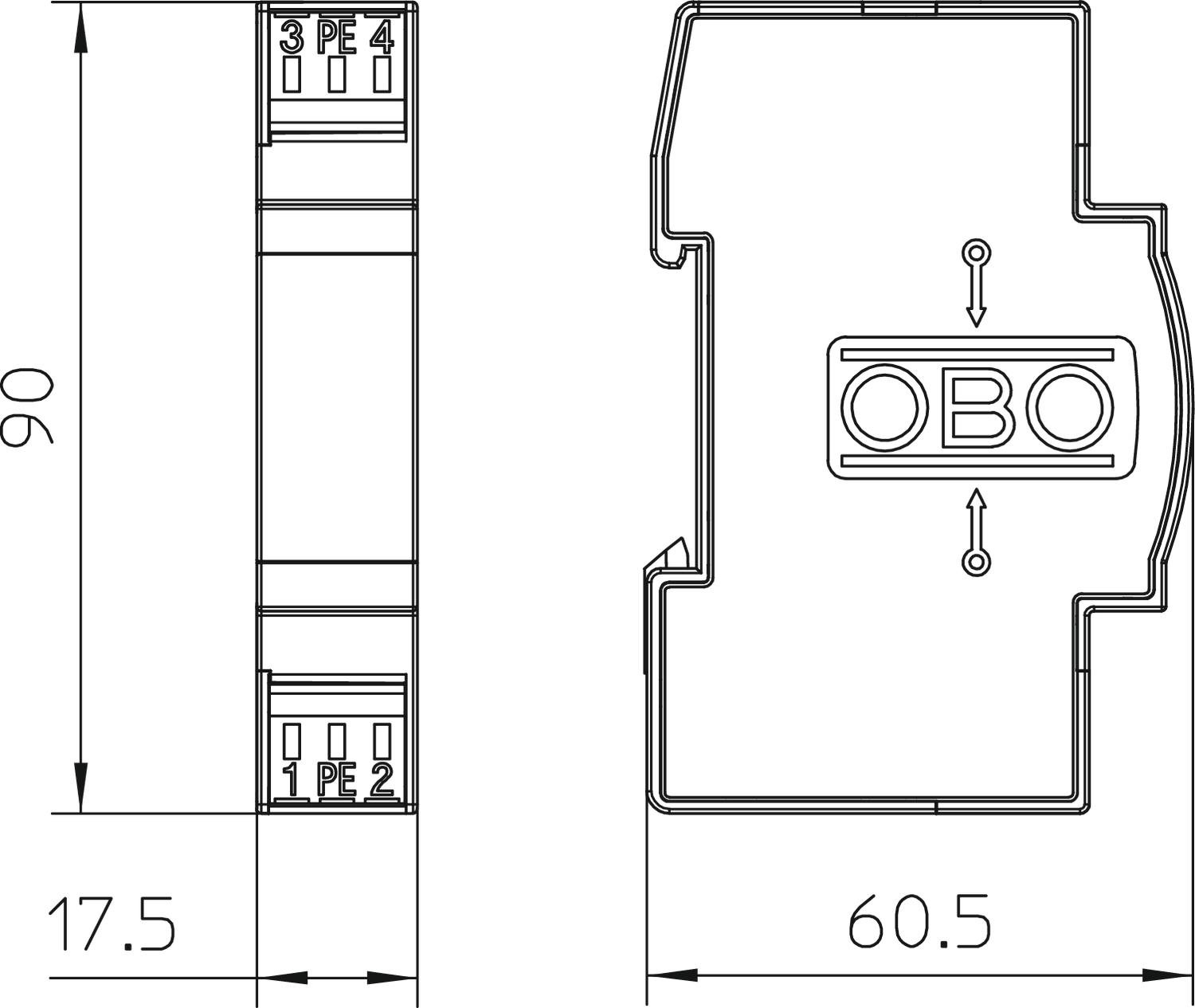

Technical data

Technical data

Approvals UL
Capacity (wire-earth) <10 nF
Capacity (wire-wire) <10 nF
Connection cross-section, flexible, max. 2,5 mm²
Connection cross-section, flexible, min. 0,14 mm²
Connection cross-section, multi-wire, max. 2,5 mm²
Connection cross-section, multi-wire, min. 0,14 mm²
Connection cross-section, rigid, max. 2,5 mm²
Connection cross-section, rigid, min. 0,14 mm²
Dimension 12V AC
Division unit TE (17.5 mm) 1
Earthing via: Terminal
Explosion-tested version no
Impulse durability wire-earth C1: 1 kV / 0,5 kA (8/20µs)
Impulse durability wire-wire C1: 1 kV / 0,5 kA (8/20µs)
Insertion loss 3dB @ 150 kHz dB
Insulation resistance >1MΩ
Kategorie Type 2+3 / C2+C1
Lightning protection zone LPZ 1→3
Maximum continuous voltage AC 9
Maximum continuous voltage DC 13
Nominal discharge current (8/20 µs) 0,5 kA
Nominal load current AC 0,7
Nominal load current DC 1 A
Number of poles 2
Permitted temperature range, max. 80 °C
Permitted temperature range, min. -40 °C
Plug-in system Terminal
Protection level wire-earth <30 V
Protection level wire-wire <60 V
Protection rating IP20
Series inductivity per wire 120 µH ± 10 %
Shielding connection available no
SPD to IEC 61643-21 Class II+III / C2+C1
Telecommunications contact no
Testing standard IEC 61643-21
Total discharge current (8/20) 1 kA
All types

All types

Types Number of poles Maximum continuous voltage AC Maximum continuous voltage DC Plug-in system Item no. Quantity SSU
FLD 2-12 2 9 13 Terminal 5098808
1 piece
FLD 2-24 2 19 28 Terminal 5098816
1 piece
FLD 2-110 2 86 122 Terminal 5098859
1 piece
