Mesh angle 2000 | 40 | 80 | 4.4 | 32 |
morepic-1 morepic-2 video-1

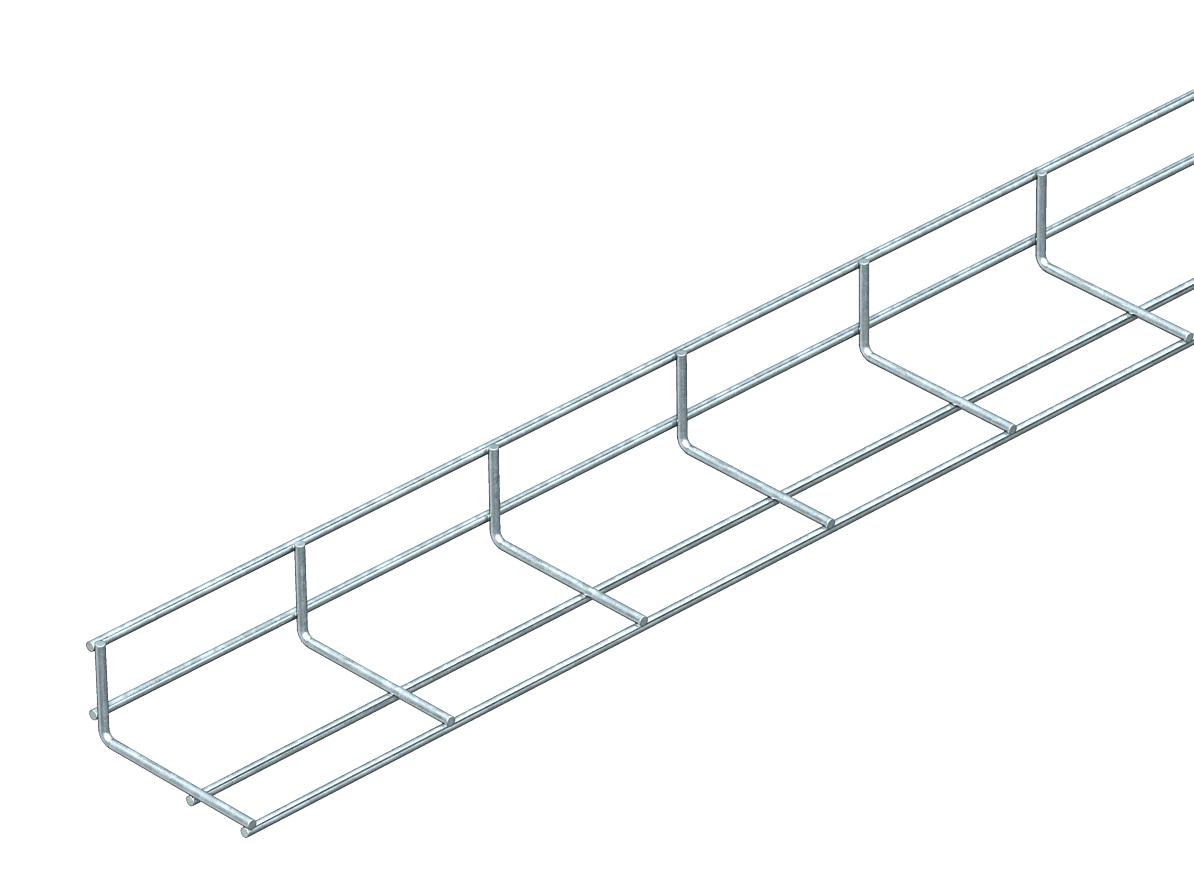

Mesh angle

Item no. 6003818 | EAN 4012196002955

6003818 / GW 40 80 FT
2000 mm
40 mm
80 mm
4.4 mm
32 cm²
Product description

Product description

Mesh angle for routing cables in steel girders.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Connector version Without connectors
Dimension 80x40x2000
Height 80 mm
Integrated partition Without
Length 2000 mm
Material Steel
Rustproof steel, pickled no
Surface Hot-dip galvanised
Type of connector, cable support system Screwed
Usable cross-section 32 cm²
Usable cross-section 3200 mm²
Wide-span version no
Width 40 mm
Width 1,57 in
Wire diameter 4,4 mm
All types

All types

Types Length Width Height Wire diameter Usable cross-section Item no. Quantity SSU
GW 40 80 FT 2000 mm 40 mm 80 mm 4.4 mm 32 cm² 6003818
2 m
Downloads

Download

Download
Download
Download

Declaration of conformity GW 40 80 FT / 6003818 , 0.13MB , pdf
Download
REACH Declaration of conformity GW 40 80 FT / 6003818 , 0.12MB , pdf
Download
RoHS Declaration of conformity GW 40 80 FT / 6003818 , 0.12MB , pdf
Download

Download
Download

GW 40 80 FT / 6003818
