Product description

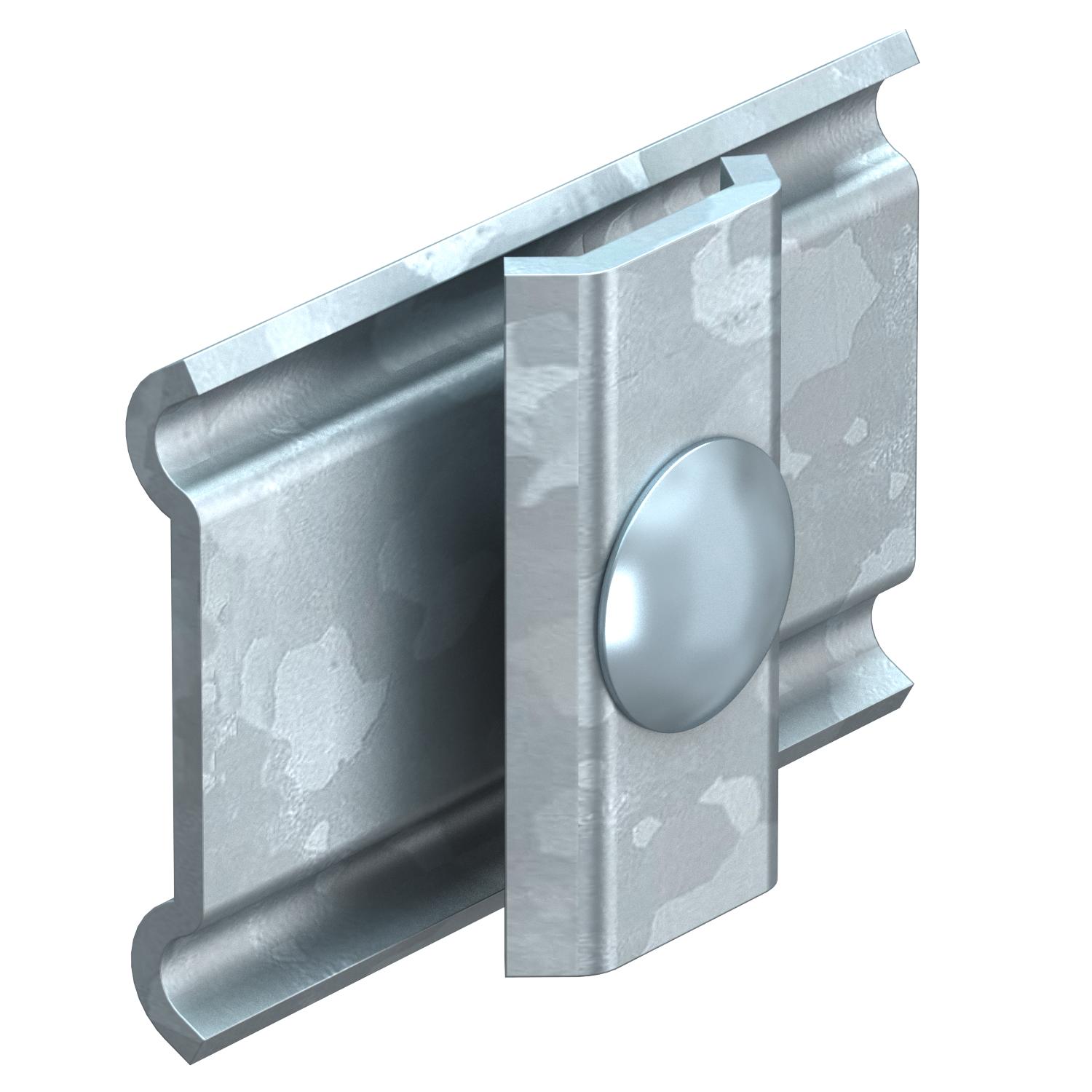

Screwed version of joint connector for mesh cable trays.
-
- Technical data
-
Technical data
Adjustable connector, horizontal no Articulated connector, vertical no Connection type Screw connector Dimension 60x40 Dimension 60 x 40 Maintain electrical functions no Material Steel Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray no Suitable for mesh cable tray yes Suitable for mesh cable tray wire, max. 4,9 mm Suitable for mesh cable tray wire, min. 3,9 mm Surface Hot-dip galvanised Version for Straight connector Dimensions
Height 24 mm Height 0,94 in Length 60 mm Width 40 mm Width 1,97 in - All types
- Downloads
-
Data sheet K 11 262 FT / 6015107 , 0.18MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity K 11 262 FT / 6015107 , 0.15MB , pdfREACH Declaration of conformity K 11 262 FT / 6015107 , 0.12MB , pdfRoHS Declaration of conformity K 11 262 FT / 6015107 , 0.12MB , pdfMounting instructions Mounting instructions, mesh cable tray systems , 9.52MB , pdf
