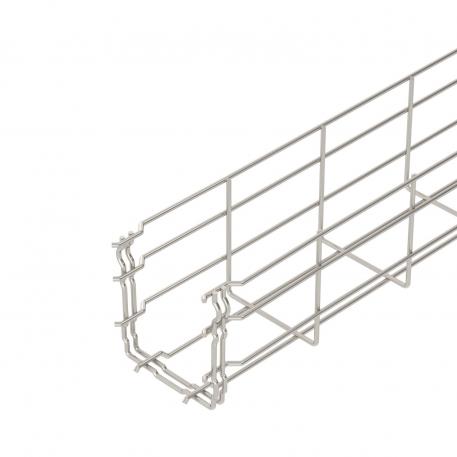

Mesh cable tray GR-Magic® 105 A4

Item no. 6002475 | EAN 4012195874904

3000 mm
105 mm
no
Product description
Product description

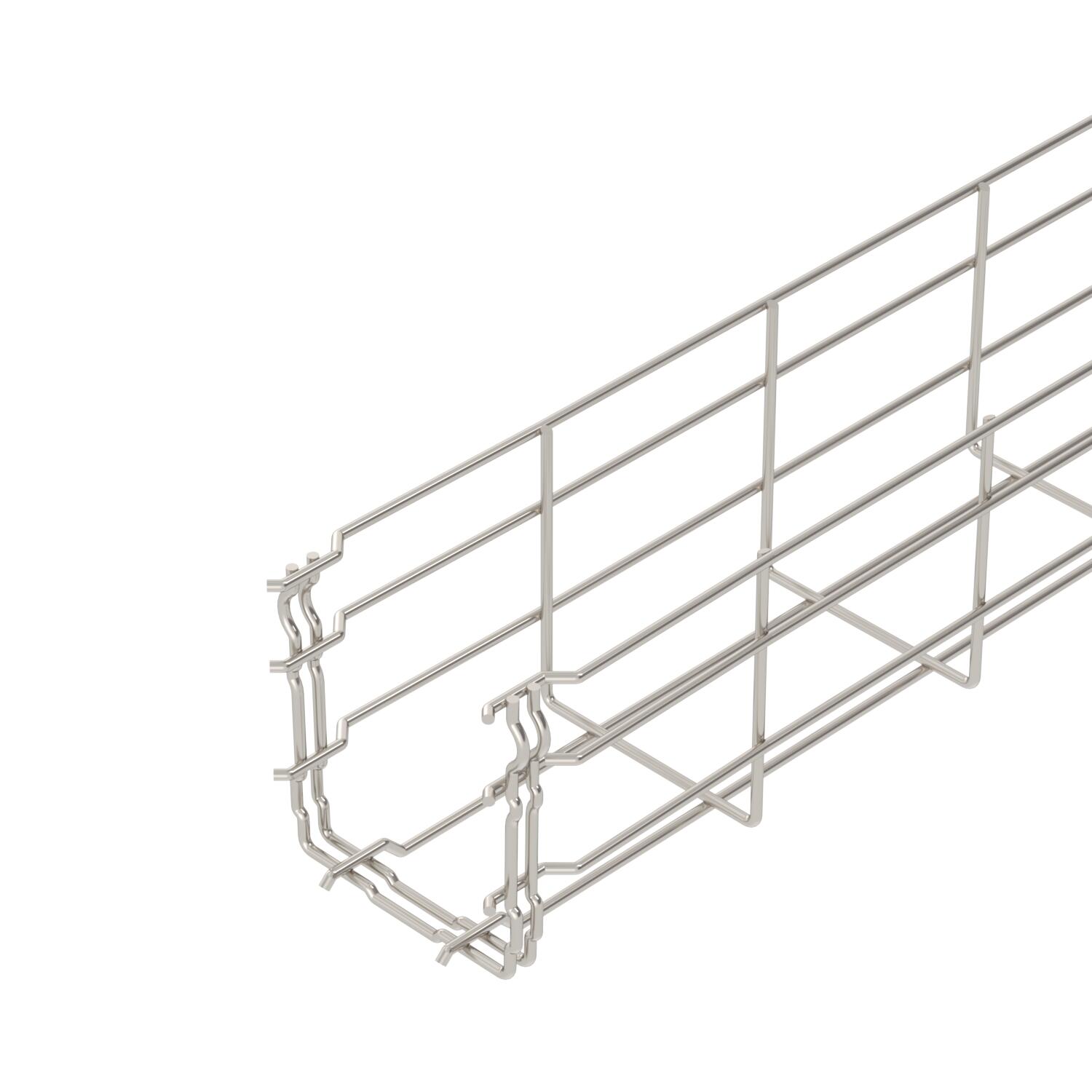

Mesh cable tray with shaped connector of side height 105 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour stainless steel
Connector version Integrated connector
CO₂ Footprint (GWP) Cradle-to-Gate 5,025 kg CO₂e / 1 Meter

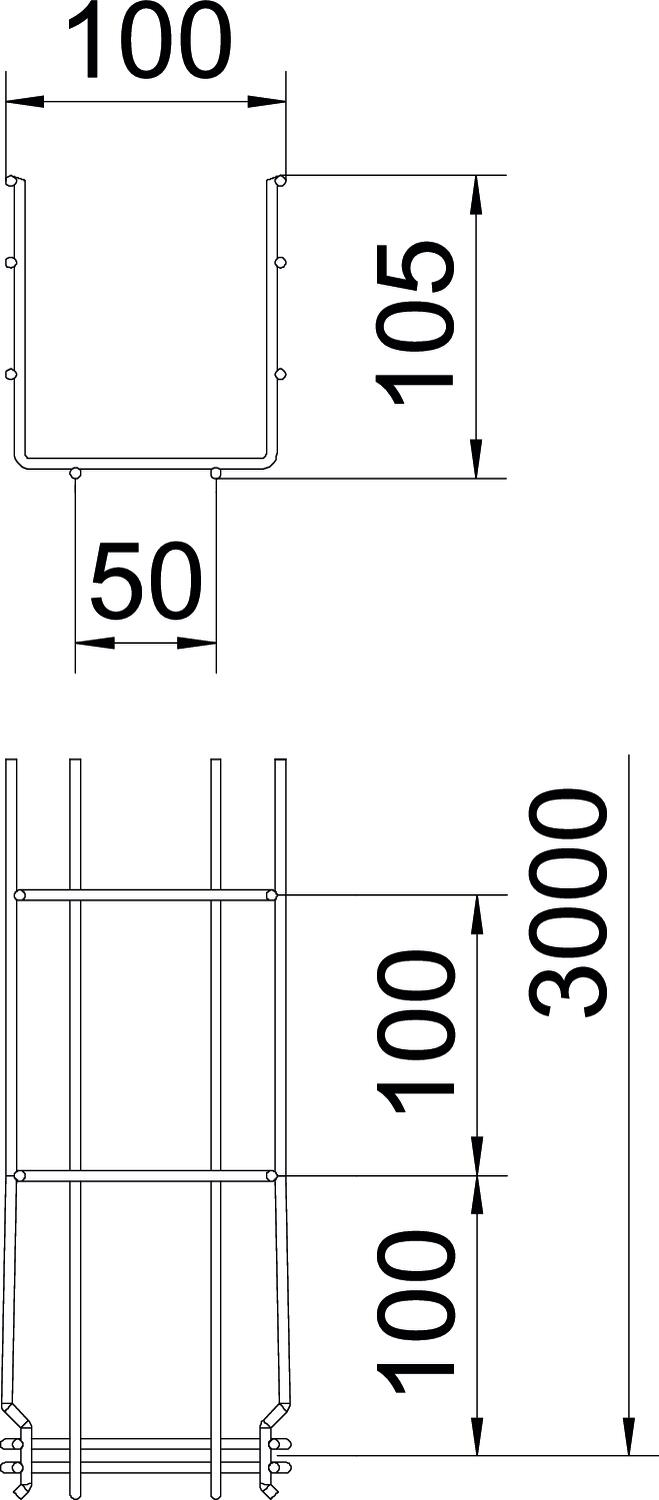

Dimension 105x100x3000
Dimension B 100 mm
Dimension H 108 mm
Height 105 mm
Height 4,13 in
Integrated partition Without
Length 3000 mm
Load test type according to IEC 61537 Type II
Maintain electrical functions no
Material Stainless steel
Profile shape U-shaped
Rustproof steel, pickled yes
Screwless connector yes
Support spacing 1.0 m 0,8 kN/m
Support spacing 1.5 m 0,55 kN/m
Support spacing 2.0 m 0,37 kN/m
Support spacing 2.5 m 0,27 kN/m
Support spacing 3.0 m 0,25 kN/m
Surface Bright, treated
Type of connector, cable support system Click fastening
Usable cross-section 82 cm²
Usable cross-section 8200 mm²
Wide-span version no
Width 100 mm
Width 3,94 in
Wire diameter 3,9 mm

Technical data

Load diagram, mesh cable tray, type GRM 105

Load diagram, mesh cable tray, type GRM 105
  • Permitted cable tray/ladder load in kN/m without man load Permitted cable tray/ladder load in kN/m without man load
  • Support width in m Support width in m
  • Rail bend in mm at permitted kN/m Rail bend in mm at permitted kN/m
  • Load scheme during testing Load scheme during testing
  • Load curve with cable tray/ladder width in mm Load curve with cable tray/ladder width in mm
  • Strut bend curve according to support width Strut bend curve according to support width
All types

All types

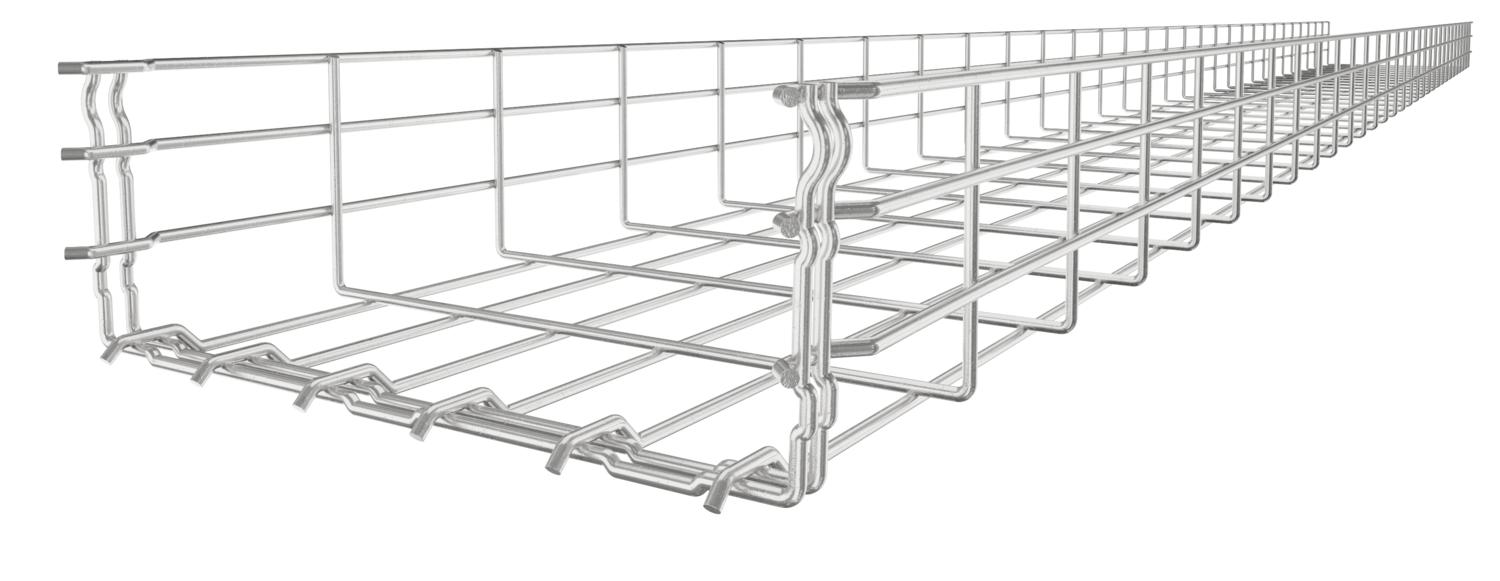

Types Length Width Height Wire diameter Usable cross-section Maintain electrical functions Item no. Quantity SSU
GRM 105 100 A4 3000 mm 100 mm 105 mm 3.9 mm 82 cm² no 6002475
3 m
GRM 105 150 A4 3000 mm 150 mm 105 mm 3.9 mm 130 cm² no 6002476
3 m
GRM 105 200 A4 3000 mm 200 mm 105 mm 4.8 mm 175 cm² no 6002477
3 m
GRM 105 300 A4 3000 mm 300 mm 105 mm 4.8 mm 268 cm² no 6002479
3 m
GRM 105 400 A4 3000 mm 400 mm 105 mm 4.8 mm 363 cm² no 6002481
3 m
GRM 105 500 A4 3000 mm 500 mm 105 mm 4.8 mm 459 cm² no 6002483
3 m
GRM 105 600 A4 3000 mm 600 mm 105 mm 4.8 mm 554 cm² no 6002485
3 m
Accessories

System accessories

Products Types Item no. Quantity SSU
Corner connector A4 Corner connector A4 GEV 36 A4 6016764
10 piece
Unperforated cover A4 Unperforated cover A4 DRLU 100 A4 6052991
3 m
Downloads

Download

Download
Download
Download

EU declaration of conformity GRM 105 100 A4 / 6002475 , 0.13MB , pdf
Download

Download
Download
Download

GRM 105 100 A4 / 6002475
Download
