Mesh cable tray GR-Magic® 105 FT

Item no. / Types

Length	3000 mm

Width

Height	105 mm

Wire diameter

Usable cross-section

Maintain electrical functions	no

Product description

Product description

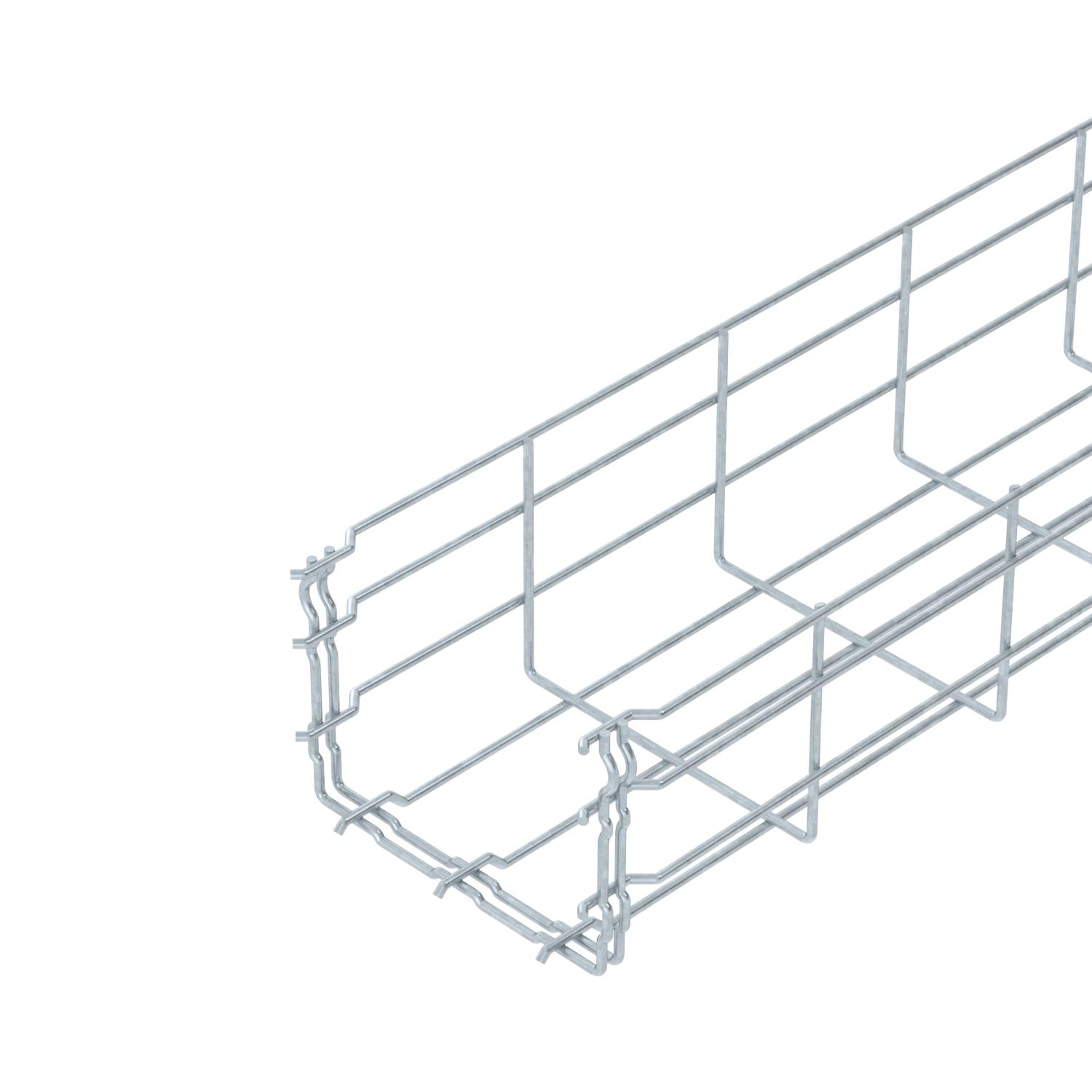

Mesh cable tray with shaped connector of side height 105 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.

Technical data

Colour	zinc
Connector version	Integrated connector
CO₂ Footprint (GWP) Cradle-to-Gate	2,4443 kg CO₂e / 1 Meter

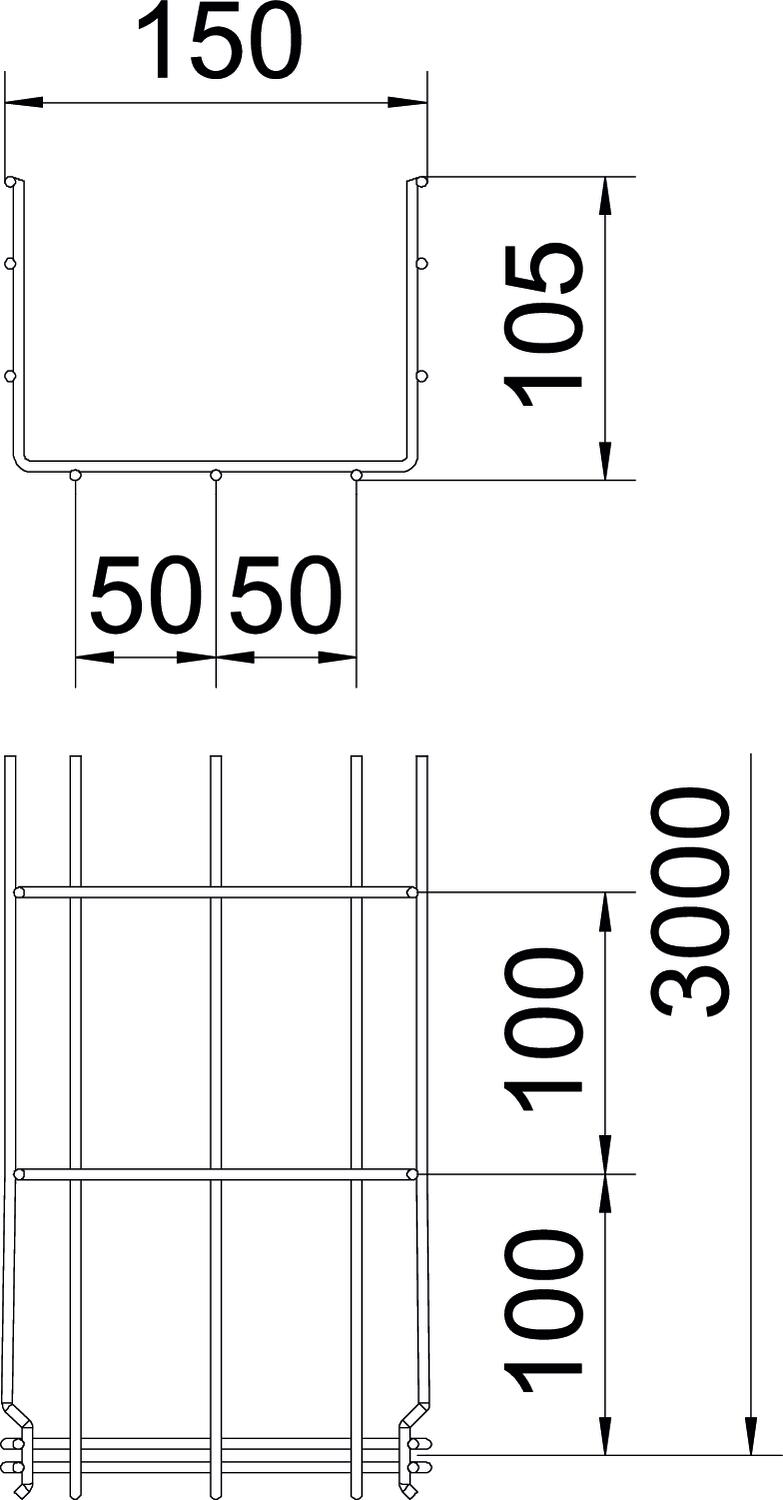

Dimension	105x150x3000
Dimension B	150 mm
Dimension H	108 mm
Height	105 mm
Height	4,13 in
Integrated partition	Without
Length	3000 mm
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Steel
Profile shape	U-shaped
Rustproof steel, pickled	no

Screwless connector	yes
Support spacing 1.0 m	0,8 kN/m
Support spacing 1.5 m	0,55 kN/m
Support spacing 2.0 m	0,37 kN/m
Support spacing 2.5 m	0,27 kN/m
Support spacing 3.0 m	0,25 kN/m
Surface	Hot-dip galvanised
Type of connector, cable support system	Click fastening
Usable cross-section	130 cm²
Usable cross-section	13000 mm²
Wide-span version	no
Width	5,91 in
Width	150 mm
Wire diameter	3,9 mm

Technical data

All types

Types	Length	Width	Height	Wire diameter	Usable cross-section	Maintain electrical functions	Item no.	Quantity	SSU
GRM 105 100 FT	3000 mm	100 mm	105 mm	3.9 mm	82 cm²	no	6002431	m	3 m
GRM 105 150 FT	3000 mm	150 mm	105 mm	3.9 mm	130 cm²	no	6002433	m	3 m
GRM 105 200 FT	3000 mm	200 mm	105 mm	4.8 mm	175 cm²	no	6002435	m	3 m
GRM 105 300 FT	3000 mm	300 mm	105 mm	4.8 mm	268 cm²	no	6002437	m	3 m
GRM 105 400 FT	3000 mm	400 mm	105 mm	4.8 mm	363 cm²	no	6002439	m	3 m
GRM 105 450 FT	3000 mm	450 mm	105 mm	4.8 mm	411 cm²	no	6002441	m	3 m
GRM 105 500 FT	3000 mm	500 mm	105 mm	4.8 mm	459 cm²	no	6002443	m	3 m
GRM 105 600 FT	3000 mm	600 mm	105 mm	4.8 mm	554 cm²	no	6002445	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU
Cover for mesh cable tray, latchable FT	DGRR 150 FT	6001824	m	3 m
Corner connector FT	GEV 36 FT	6016723	piece	20 piece

Products	Types	Item no.	Quantity	SSU
Clamping piece for separating retainer fastening	KS GR A2	6062282	piece	30 piece
Barrier strip 85 DD	TSG 85 DD	6062331	m	3 m
Exit plate FT	KAB GR FT	6220142	piece	10 piece
