- Product description
-
Product description

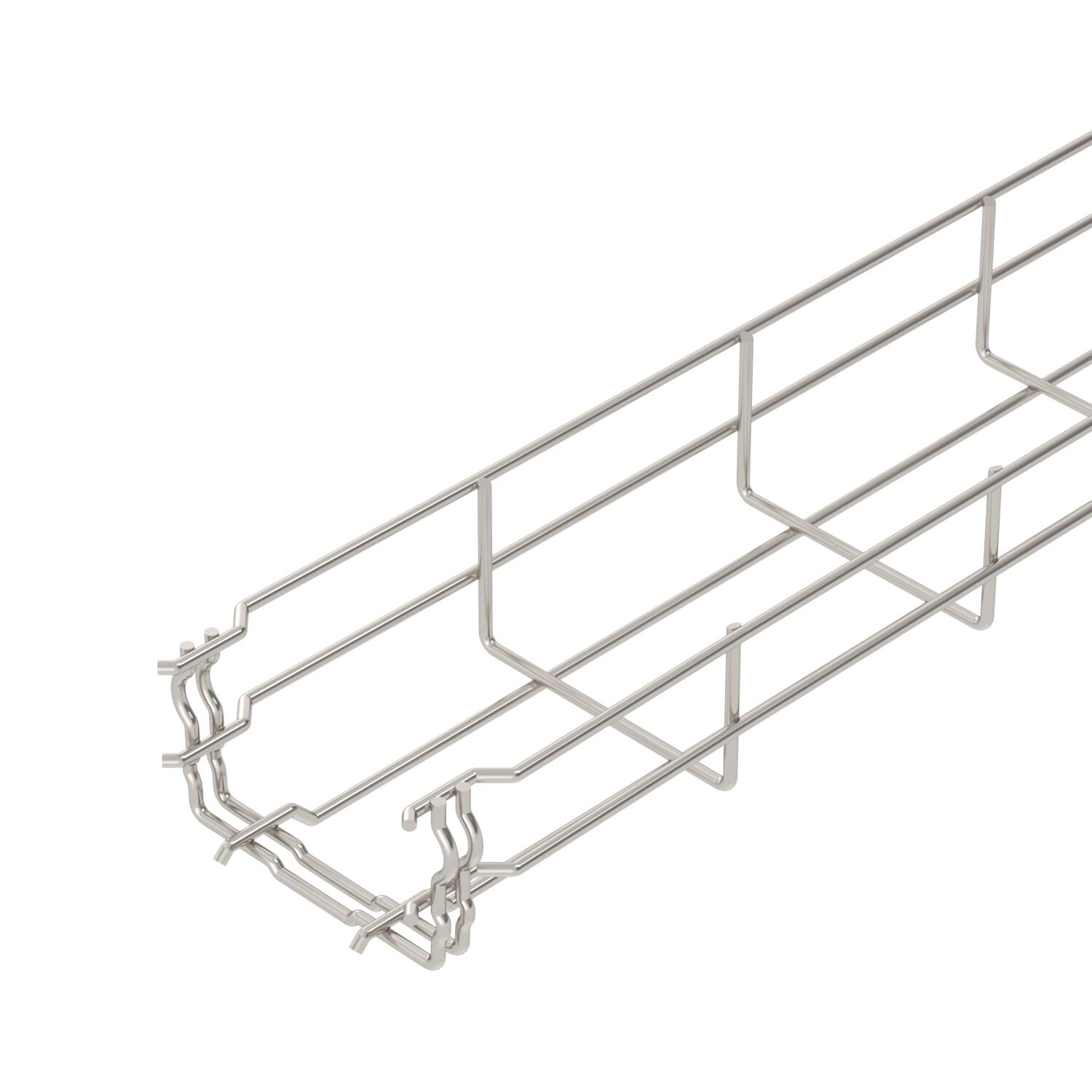

Mesh cable tray with shaped connector of side height 55 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.
- Technical data
-
Technical data

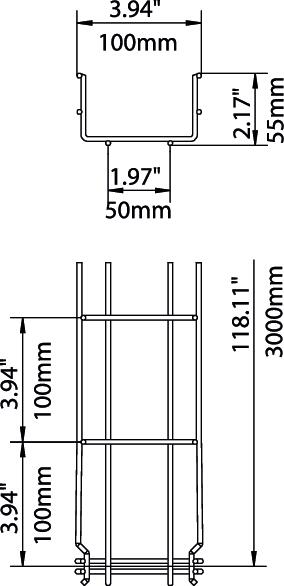

Connector version Integrated connector Dimension 55x100x3000 Dimension B 100 mm Dimension H 58 mm Fire protection Maintenance of electrical function of cable-specific support structure Height 55 mm Height 2,17 in Integrated partition Without Length 3000 mm Load test type according to IEC 61537 Type II Maintain electrical functions yes Material Stainless steel Profile shape U-shaped Rustproof steel, pickled yes Screwless connector yes Support spacing 1.0 m 0,35 kN/m Support spacing 1.5 m 0,2 kN/m Support spacing 2.0 m 0,1 kN/m Support spacing 2.5 m 0,1 kN/m Surface Bright, treated Type of connector, cable support system Click fastening Usable cross-section 40 cm² Usable cross-section 4000 mm² Wide-span version no Width 3,94 in Width 100 mm Wire diameter 3,9 mm Technical data
Load diagram, mesh cable tray, type GRM 55 VA
- Permitted cable tray/ladder load in kN/m without man load
- Support width in m
- Rail bend in mm at permitted kN/m
- Load scheme during testing
- Load curve with cable tray/ladder width in mm
- Strut bend curve according to support width
- All types
-
All types
