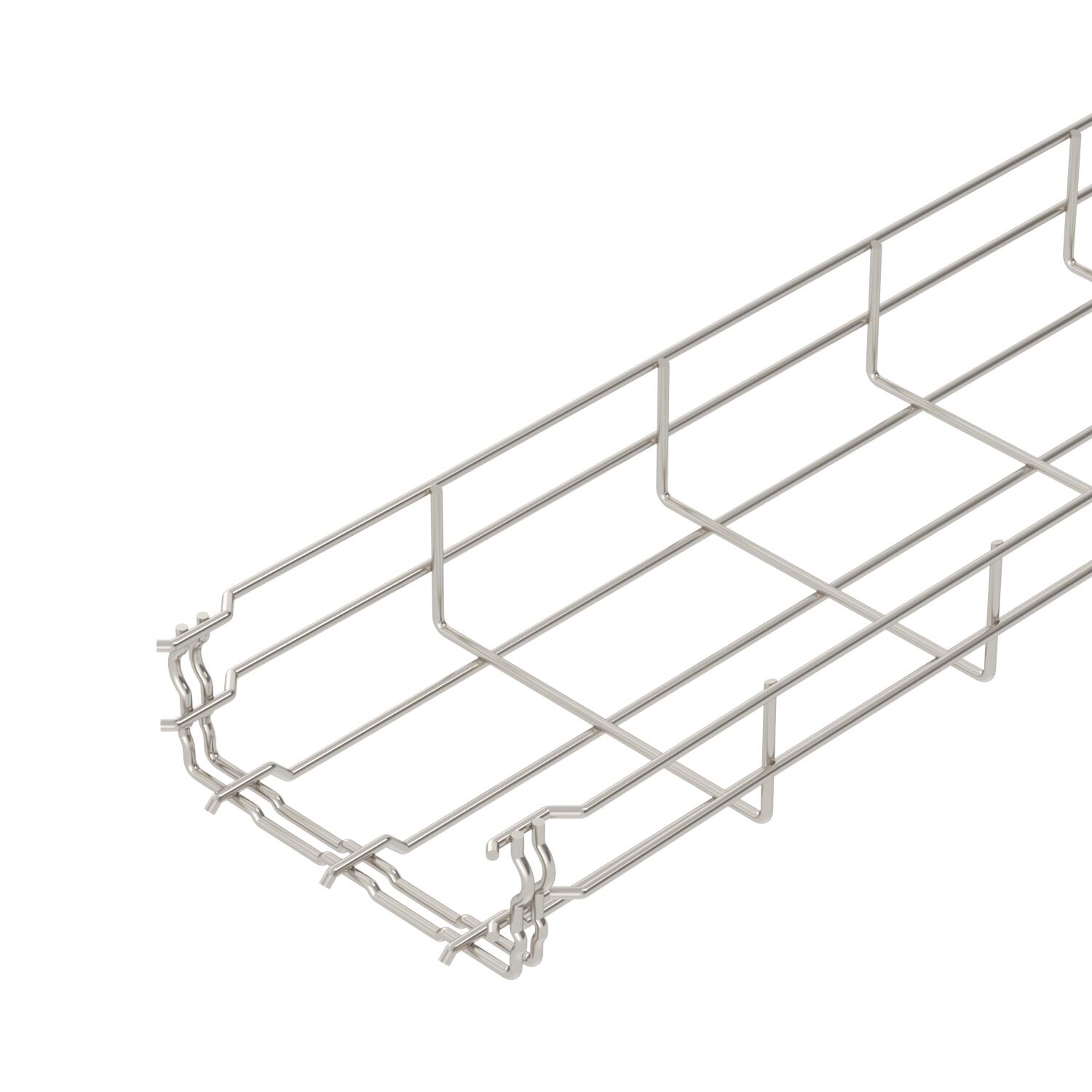

Product descriptionMesh cable tray with shaped connector of side height 55 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.
- Technical data
-
Technical data

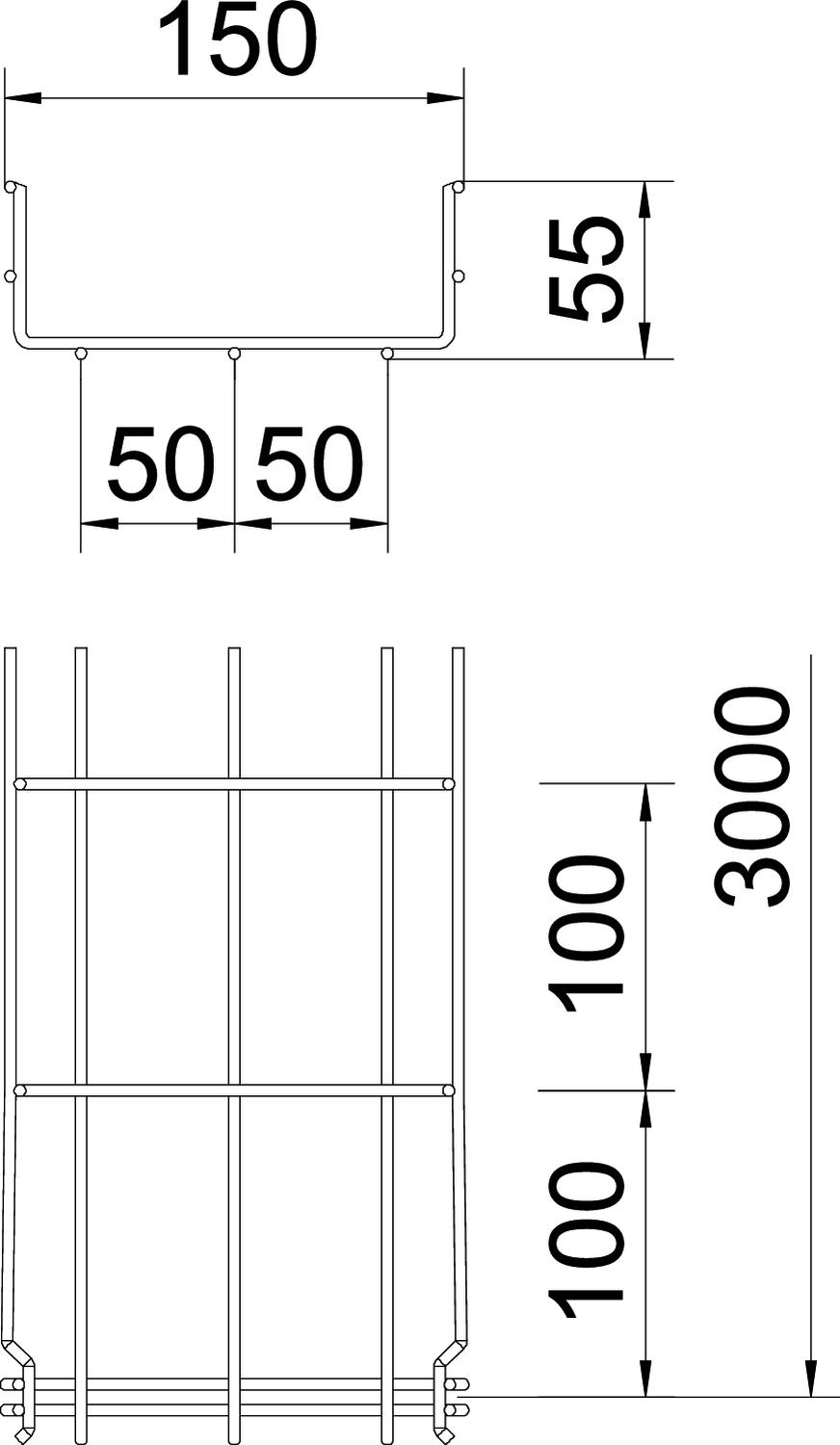

Colour stainless steel Connector version Integrated connector CO₂ Footprint (GWP) Cradle-to-Gate 4,327 kg CO₂e / 1 Meter Dimension 55x150x3000 Dimension B 150 mm Dimension H 58 mm Fire protection Maintenance of electrical function of cable-specific support structure Height 2,17 in Height 55 mm Integrated partition Without Length 3000 mm Load test type according to IEC 61537 Type II Maintain electrical functions yes Material Stainless steel Profile shape U-shaped Rustproof steel, pickled yes Screwless connector yes Support spacing 1.0 m 0,35 kN/m Support spacing 1.5 m 0,2 kN/m Support spacing 2.0 m 0,1 kN/m Support spacing 2.5 m 0,1 kN/m Surface Bright, treated Type of connector, cable support system Click fastening Usable cross-section 6300 mm² Usable cross-section 63 cm² Wide-span version no Width 5,91 in Width 150 mm Wire diameter 3,9 mm Technical data
Load diagram, mesh cable tray, type GRM 55 VA
- Permitted cable tray/ladder load in kN/m without man load
- Support width in m
- Rail bend in mm at permitted kN/m
- Load scheme during testing
- Load curve with cable tray/ladder width in mm
- Strut bend curve according to support width
- All types
-
All types
- Downloads
-
Data sheet GRM 55 150 A4 / 6001090 , 0.47MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity GRM 55 150 A4 / 6001090 , 0.13MB , pdfREACH Declaration of conformity GRM 55 150 A4 / 6001090 , 0.12MB , pdfRoHS Declaration of conformity GRM 55 150 A4 / 6001090 , 0.12MB , pdfLabel approval VDE symbol approval, GRM , 0.50MB , pdfLabel approval RINA Type Approval Certificate GRM , 0.61MB , pdfEnvironmental declaration Umweltproduktdeklaration (EPD) , 1.48MB , pdfSelection aid GR-Magic® , 2.00MB , pdfMounting instructions General information on the mounting , 2.61MB , pdfMounting instructions Mounting instructions, mesh cable tray systems , 9.52MB , pdf
