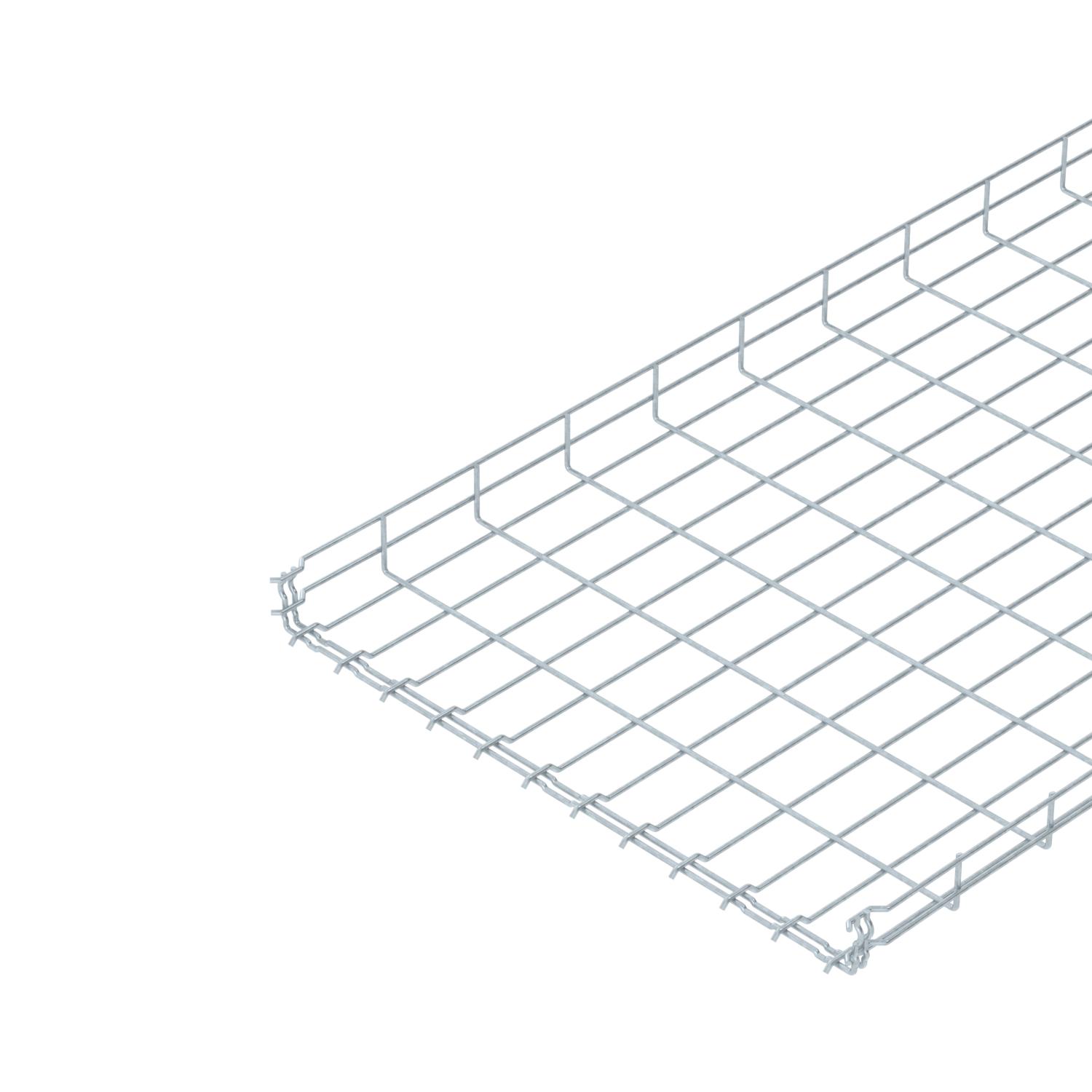

Mesh cable tray GR-Magic® 55 FT

Item no. 6001436 | EAN 4012196815234

3000 mm
55 mm
Product description

Product description

Mesh cable tray with shaped connector of side height 55 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.

You can find detailed information regarding the UL classification in the respective certification.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Underwriters Laboratories Inc., USA
  • Underwriters Laboratories Inc., USA
  • RINA 1861, Ship Classification, Certification and Services
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Connector version Integrated connector

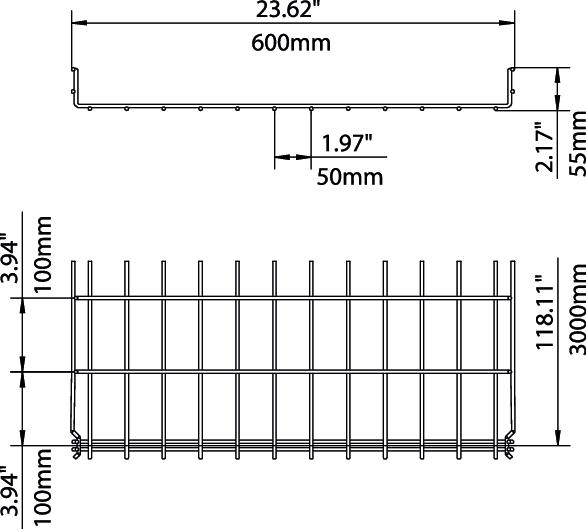

Dimension 55x600x3000
Dimension B 600 mm
Dimension H 58 mm
Height 55 mm
Height 2,17 in
Integrated partition Without
Length 3000 mm
Load test type according to IEC 61537 Type II
Maintain electrical functions no
Material Steel
Profile shape U-shaped
Rustproof steel, pickled no
Screwless connector yes
Support spacing 1.0 m 0,9 kN/m
Support spacing 1.5 m 0,6 kN/m
Support spacing 2.0 m 0,3 kN/m
Support spacing 2.5 m 0,25 kN/m
Surface Hot-dip galvanised
Type of connector, cable support system Click fastening
Usable cross-section 26500 mm²
Usable cross-section 265 cm²
Wide-span version no
Width 600 mm
Width 23,62 in
Wire diameter 4,8 mm

Technical data

Load diagram, GR-Magic mesh cable tray, type GRM 55

Load diagram, GR-Magic mesh cable tray, type GRM 55
  • Permitted cable tray/ladder load in kN/m without man load Permitted cable tray/ladder load in kN/m without man load
  • Support width in m Support width in m
  • Rail bend in mm at permitted kN/m Rail bend in mm at permitted kN/m
  • Load scheme during testing Load scheme during testing
  • Load curve with cable tray/ladder width in mm Load curve with cable tray/ladder width in mm
  • Strut bend curve according to support width Strut bend curve according to support width
All types

All types

Types Length Width Height Wire diameter Usable cross-section Maintain electrical functions Item no. Quantity SSU
GRM 55 50 FT 3000 mm 50 mm 55 mm 3.9 mm 16 cm² yes 6001415
3 m
GRM 55 100 FT 3000 mm 100 mm 55 mm 3.9 mm 40 cm² yes 6001416
3 m
GRM 55 150 FT 3000 mm 150 mm 55 mm 3.9 mm 63 cm² yes 6001418
3 m
GRM 55 200 FT 3000 mm 200 mm 55 mm 3.9 mm 87 cm² yes 6001420
3 m
GRM 55 200 4.8FT 3000 mm 200 mm 55 mm 4.8 mm 87 cm² yes 6001421
3 m
GRM 55 300 FT 3000 mm 300 mm 55 mm 4.8 mm 129 cm² yes 6001424
3 m
GRM 55 400 FT 3000 mm 400 mm 55 mm 4.8 mm 175 cm² yes 6001428
3 m
GRM 55 500 FT 3000 mm 500 mm 55 mm 4.8 mm 220 cm² no 6001432
3 m
GRM 55 600 FT 3000 mm 600 mm 55 mm 4.8 mm 265 cm² no 6001436
3 m
Accessories

System accessories

Products Types Item no. Quantity SSU

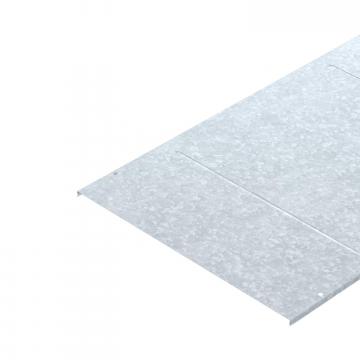

Cover for mesh cable tray, latchable FT Cover for mesh cable tray, latchable FT DGRR 600 FT 6001834
3 m
Corner connector FT Corner connector FT GEV 36 FT 6016723
20 piece

Mounting accessories

Products Types Item no. Quantity SSU
Clamping piece for separating retainer fastening Clamping piece for separating retainer fastening KS GR A2 6062282
30 piece
Barrier strip 45 DD Barrier strip 45 DD TSG 45 DD 6062321
3 m
Exit plate FT Exit plate FT KAB GR FT 6220142
10 piece
