Mesh cable tray GR-Magic® 55 with 2 barrier strip

Item no. 6006395 | EAN 4012195438649

3000 mm
55 mm
no
Product description
Product description

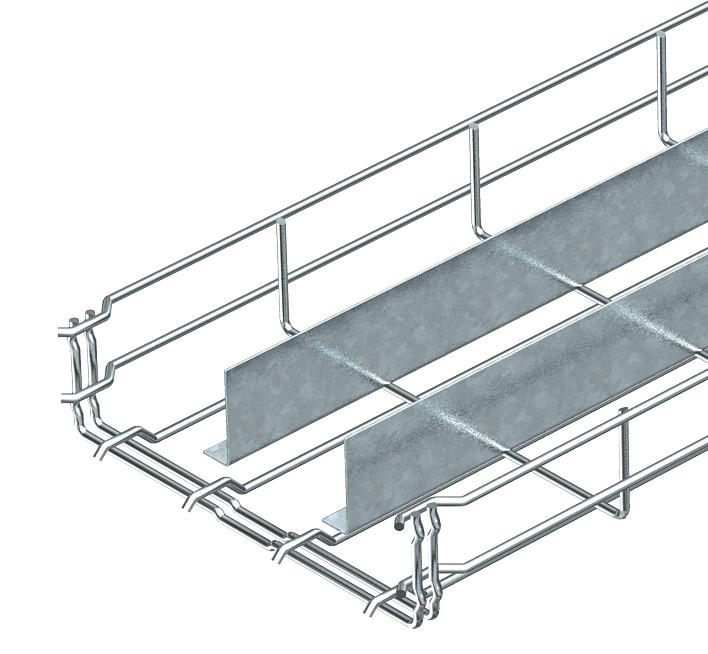

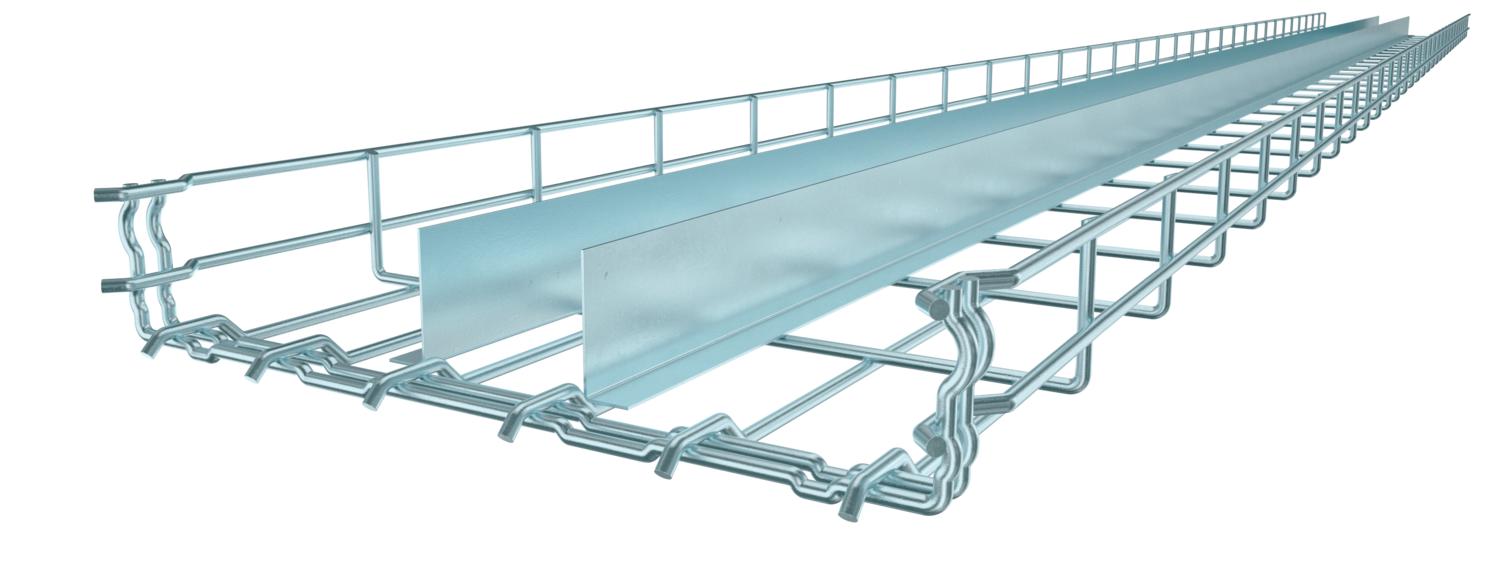

Mesh cable tray with shaped connector and two welded barrier strips of side height 55 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.
  • Magnetic shield insulation
  • RINA 1861, Ship Classification, Certification and Services
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Mesh cable tray, slant height 55 mm
  • Easy mounting component
Technical data

Technical data

Colour zinc
Connector version Integrated connector
CO₂ Footprint (GWP) Cradle-to-Gate 3,5113 kg CO₂e / 1 Meter
Dimension 55x200x3000

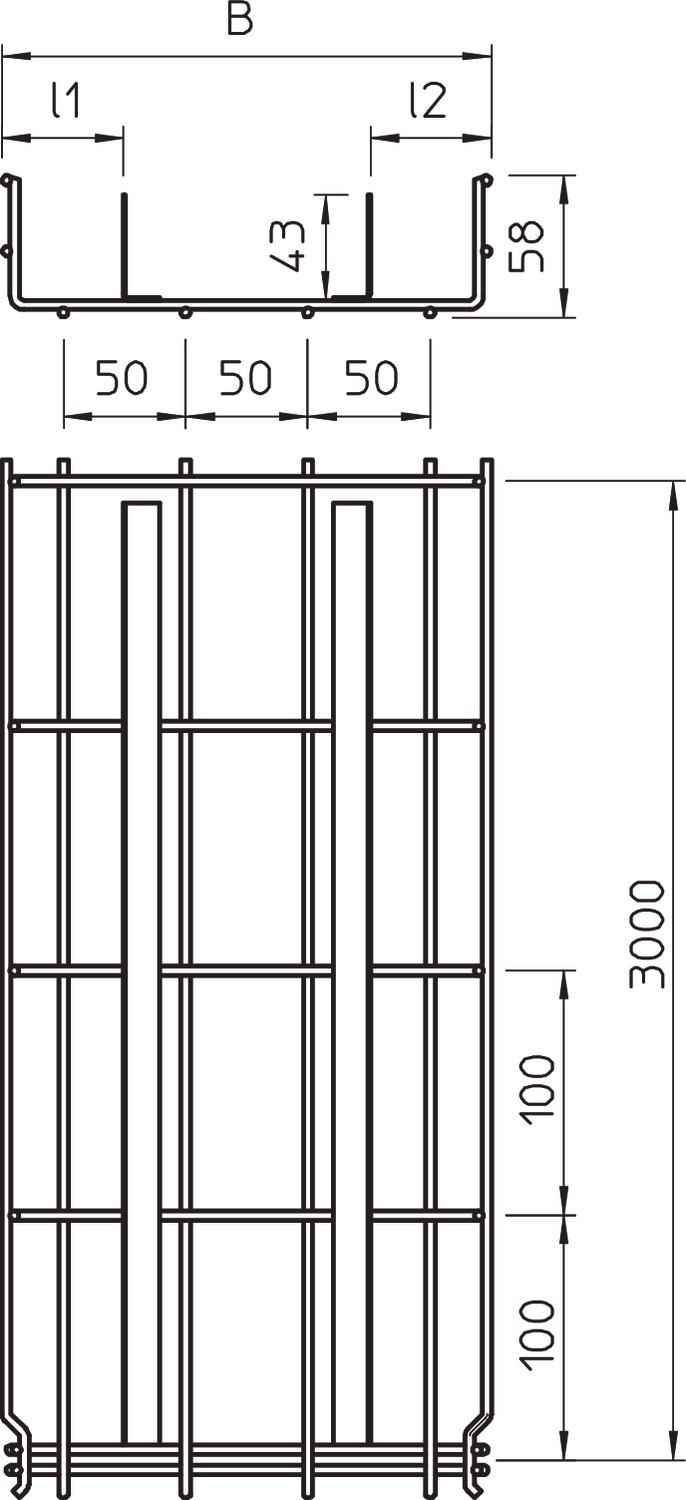

Dimension A 69 mm
Dimension B 200 mm
Dimension l1 69 mm
Dimension L2 (mm) 69 mm
Height 2,17 in
Height 55 mm
Integrated partition Two
Length 3000 mm
Load test type according to IEC 61537 Type II
Maintain electrical functions no
Material Steel
Profile shape U-shaped
Rustproof steel, pickled no
Screwless connector yes
Support spacing 1.0 m 2 kN/m
Support spacing 1.5 m 1 kN/m
Support spacing 2.0 m 0,4 kN/m
Surface Electrogalvanized
Type of connector, cable support system Click fastening
Usable cross-section 8700 mm²
Usable cross-section 87 cm²
Wide-span version no
Width 200 mm
Width 7,87 in
Wire diameter 3,9 mm

Technical data

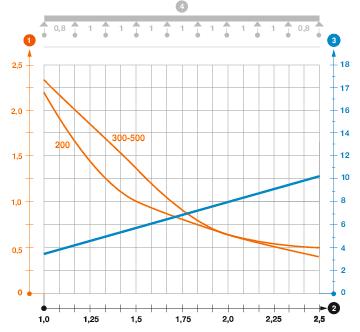

Load diagram, GR-Magic mesh cable tray, type GRM-2T 55

Load diagram, GR-Magic mesh cable tray, type GRM-2T 55
  • Permitted cable tray/ladder load in kN/m without man load Permitted cable tray/ladder load in kN/m without man load
  • Support width in m Support width in m
  • Rail bend in mm at permitted kN/m Rail bend in mm at permitted kN/m
  • Load scheme during testing Load scheme during testing
  • Load curve with cable tray/ladder width in mm Load curve with cable tray/ladder width in mm
  • Strut bend curve according to support width Strut bend curve according to support width
All types

All types

Types Length Width Height Wire diameter Usable cross-section Maintain electrical functions Item no. Quantity SSU
GRM-2T 55 200 G 3000 mm 200 mm 55 mm 3.9 mm 87 cm² no 6006395
3 m
GRM-2T 55 300 G 3000 mm 300 mm 55 mm 4.8 mm 129 cm² no 6006396
3 m
GRM-2T 55 400 G 3000 mm 400 mm 55 mm 4.8 mm 175 cm² no 6006397
3 m
GRM-2T 55 500 G 3000 mm 500 mm 55 mm 4.8 mm 220 cm² no 6006468
3 m
Accessories

System accessories

Products Types Item no. Quantity SSU
Cover for mesh cable tray, latchable FS Cover for mesh cable tray, latchable FS DGRR 200 FS 6001846
3 m
Corner connector G Corner connector G GEV 36 G 6016715
20 piece

Mounting accessories

Products Types Item no. Quantity SSU
Clamping piece for separating retainer fastening Clamping piece for separating retainer fastening KS GR A2 6062282
30 piece
Drop-out FS Drop-out FS KAB GR FS 6220139
10 piece
