Mesh cable tray GR-Magic® 55 with barrier strip 3000 | 200 | 55 | 3.9 | 87 | no

Mesh cable tray GR-Magic® 55 with barrier strip

Item no. 6006455 | EAN 4012196151219

Item no. / Types

Length	3000 mm

Width

Height	55 mm

Wire diameter

Usable cross-section

Maintain electrical functions	no

Product description

Product description

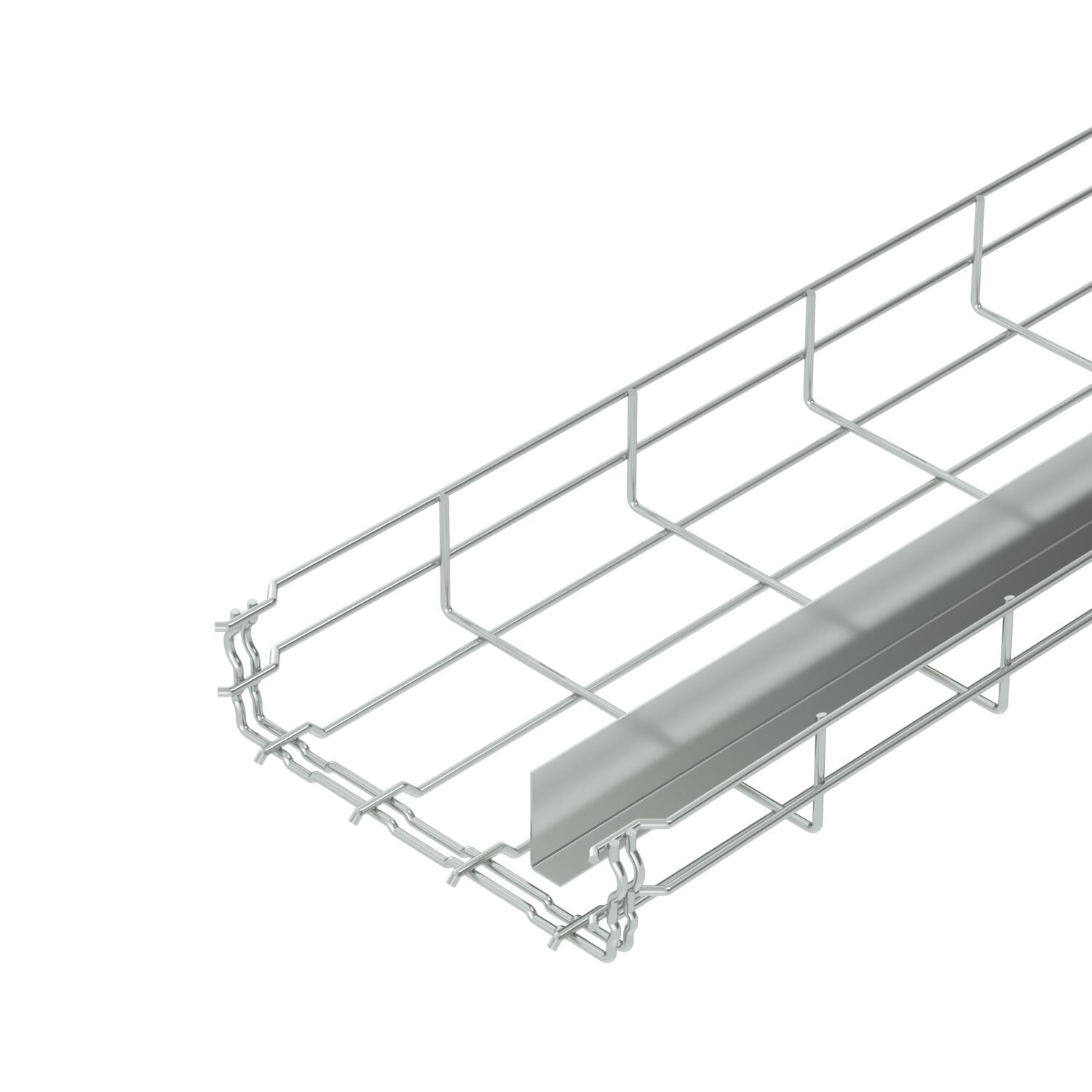

Mesh cable tray with shaped connector and welded barrier strips of side height 55 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.

Technical data

Technical data

Connector version	Integrated connector
Dimension	55x200x3000
Integrated partition	One
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Steel
Profile shape	U-shaped
Rustproof steel, pickled	no

Screwless connector	yes
Surface	Electrogalvanized
Type of connector, cable support system	Click fastening
Usable cross-section	87 cm²
Usable cross-section	8700 mm²
Wide-span version	no
Wire diameter	3,9 mm

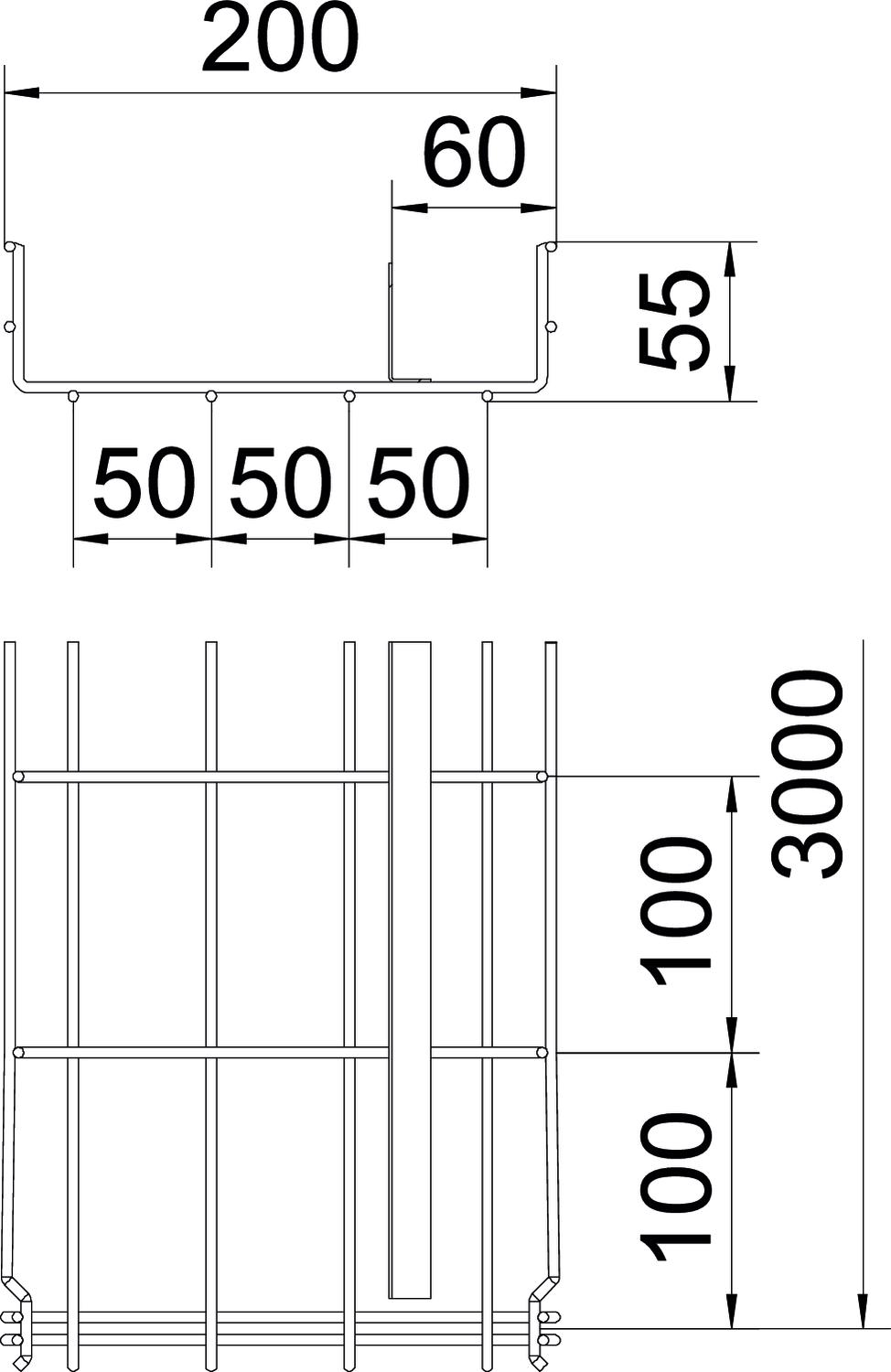

Dimensions

Dimension A	59,5 mm
Dimension B	200 mm
Dimension H	58 mm
Height	55 mm

Height	2,17 in
Length	3000 mm
Width	7,87 in
Width	200 mm

Loads

Support spacing 1.0 m	1 kN/m
Support spacing 1.5 m	0,6 kN/m

Support spacing 2.0 m	0,25 kN/m

Technical data

Load diagram, GR-Magic mesh cable tray, type GRM-1T 55

Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width

All types

All types

Types	Length	Width	Height	Wire diameter	Usable cross-section	Maintain electrical functions	Item no.	Quantity	SSU
GRM-T 55 100 G	3000 mm	100 mm	55 mm	3.9 mm	40 cm²	no	6006453	m	3 m
GRM-T 55 200 G	3000 mm	200 mm	55 mm	3.9 mm	87 cm²	no	6006455	m	3 m
GRM-T 55 300 G	3000 mm	300 mm	55 mm	4.8 mm	129 cm²	no	6006456	m	3 m
GRM-T 55 400 G	3000 mm	400 mm	55 mm	4.8 mm	175 cm²	no	6006457	m	3 m
GRM-T 55 500 G	3000 mm	500 mm	55 mm	4.8 mm	220 cm²	no	6006458	m	3 m
