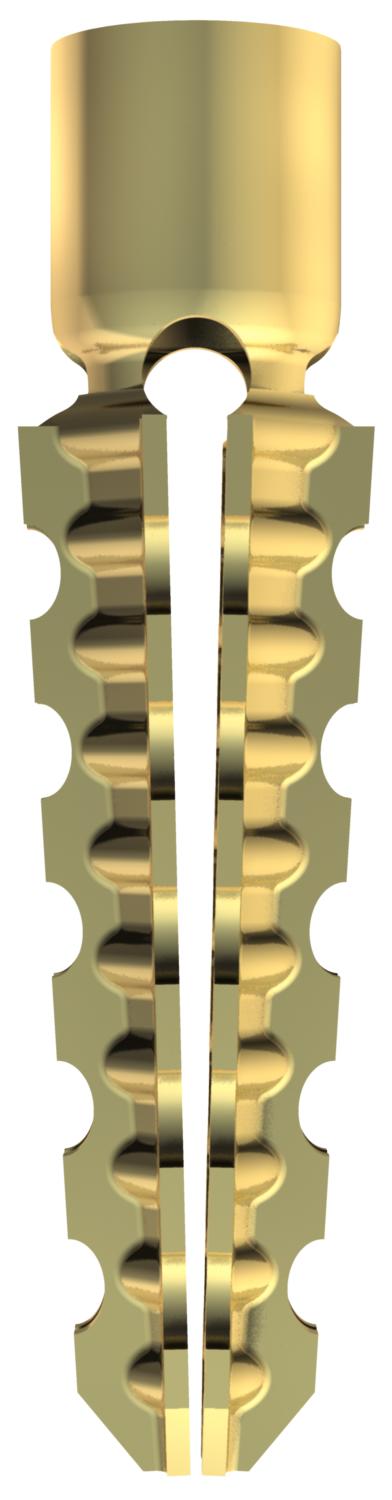

Metal spreading anchor

Item no. 3484629 | EAN 4012195683353

Product description
Product description
Areas of application: gas concrete, lightweight concrete, Poroton, pumice, plaster, hollow brick and full brick. Can be knocked into porous concrete (gas concrete) of low resistance without drilling. Superbly suited for areas subjected to high temperatures.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

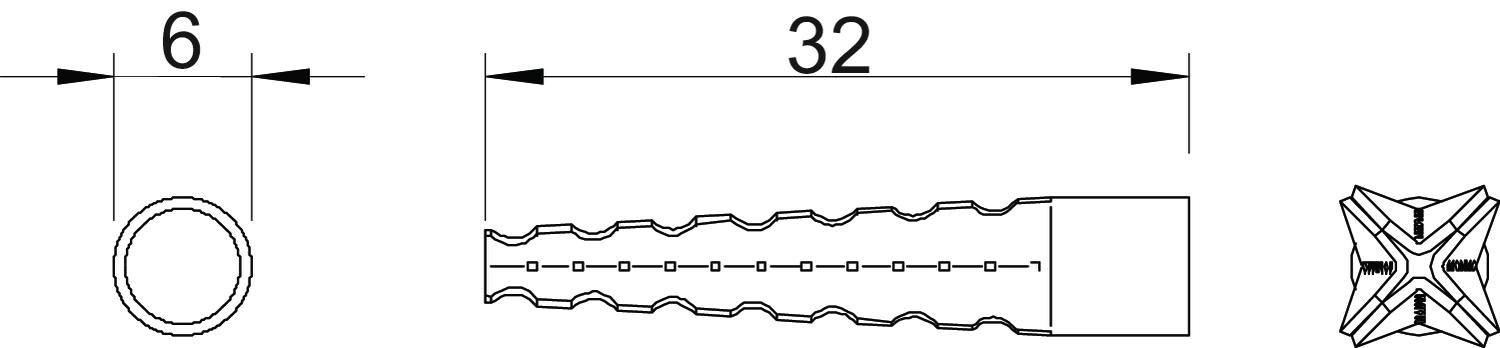

Diameter 6 mm
Dimension 6x32mm
Dimension D 6 mm
Dimension L 32 mm
Drill hole depth 38 mm
Drill hole diameter, max. 9 mm
Drill hole diameter, min. 7 mm
Length 32 mm
Material Steel
Suitable for fastening with cable ties no
Suitable for hexagonal wood screw no
Suitable for material Porous concrete
Surface Electrogalvanized, transparently passivated
Version for Spreading anchor
With bolts no
Wood screws 5-6
All types

All types

Types Diameter Length Drill hole depth Drill hole diameter, min. Item no. Quantity SSU
MD 5 GTP 5 mm 30 mm 35 mm 5 mm 3484602
200 piece
MD 6 GTP 6 mm 32 mm 38 mm 7 mm 3484629
100 piece
