MMS-plus I 7.5x40 internal thread tie, with combination thread sleeve 7,5x40 | 33.5 | 6 | 13
morepic-1 morepic-2 video-1

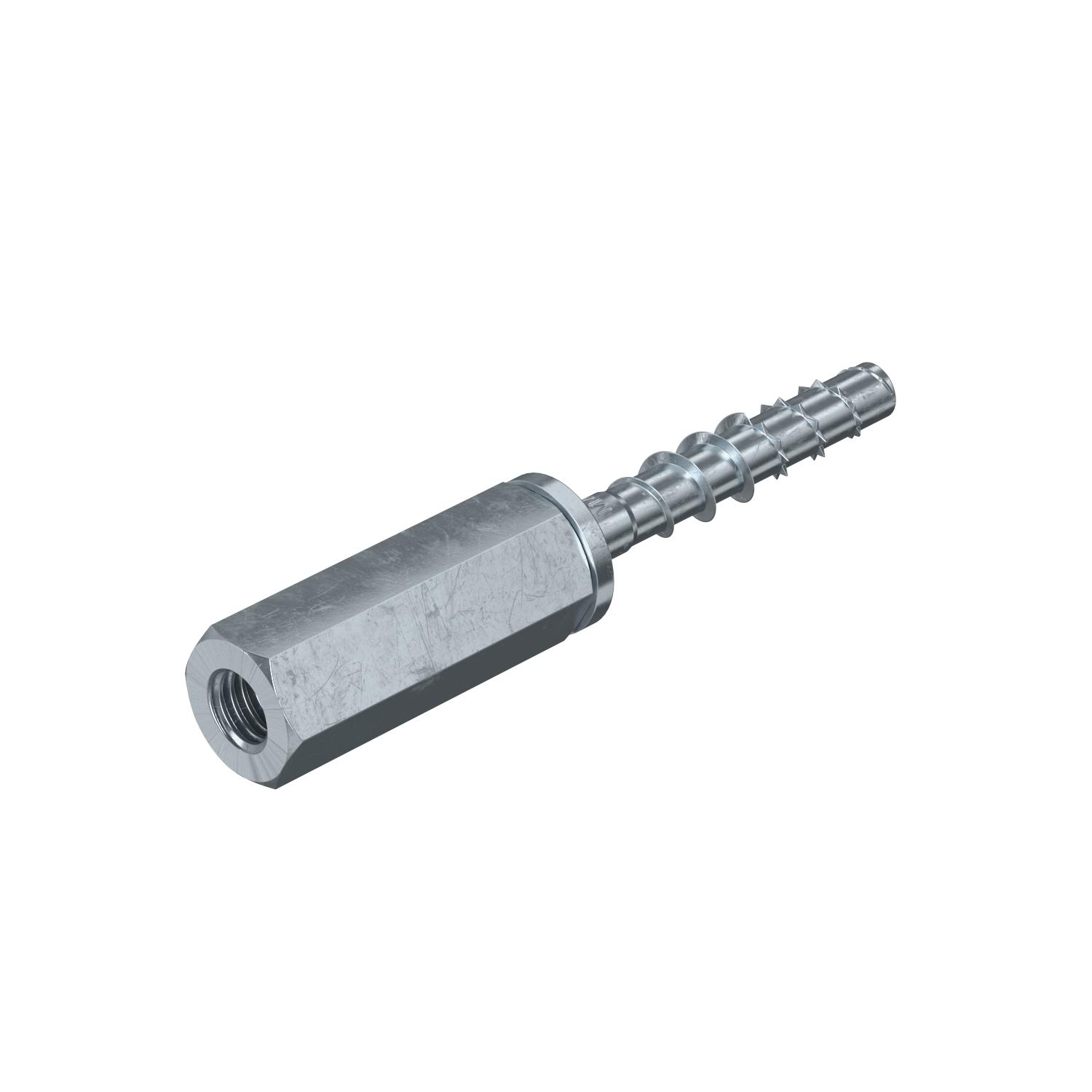

MMS-plus I 7.5x40 internal thread tie, with combination thread sleeve

Item no. 3498266 | EAN 4012196710881

6 mm
13
Product description
Product description
Bolt tie for direct mounting without additional anchors in cracked and uncracked concrete and masonry. With M8/M10 combination thread sleeve for fastening threaded rods.

Construction product tested according to EAD and CE mark, with European Technical Assessment (ETA) and proof of suitability. Load-bearing capacities under fire loads proven up to fire resistance class R120.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Fire protection bolt tie

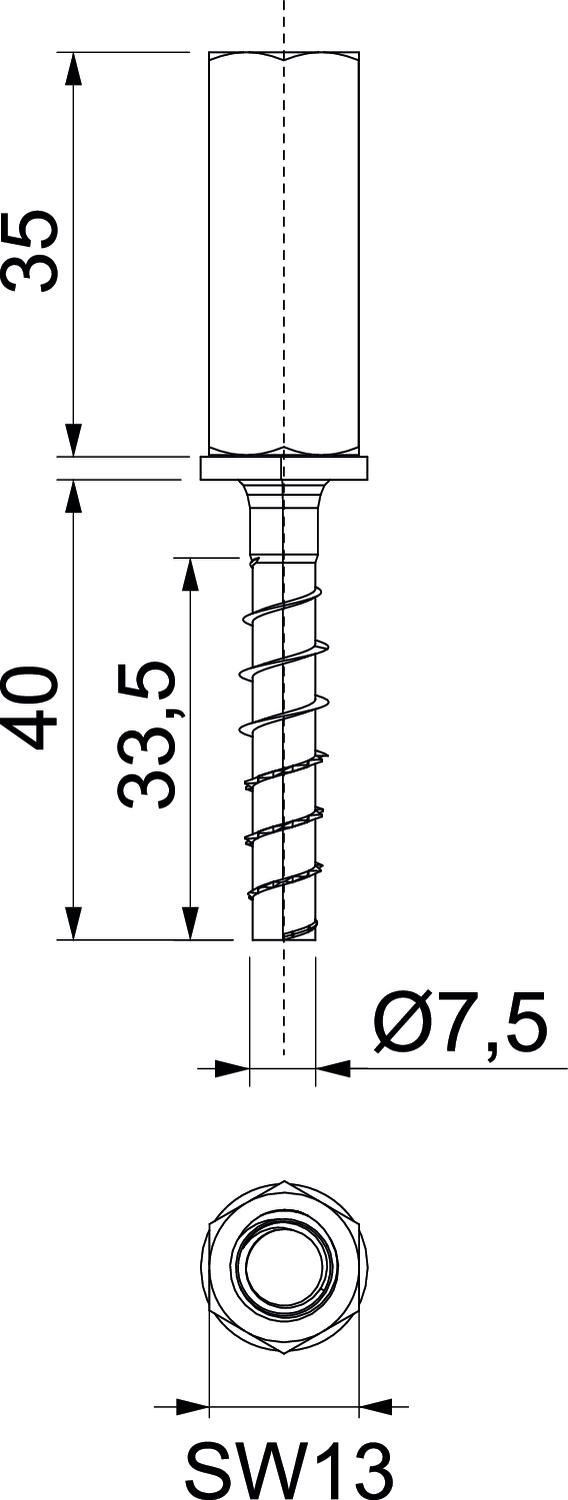

Technical data

Technical data

Anchor length 33,5 mm
Colour zinc
Dimension 7,5x40
Dimension 7,5x40
Dimension L 40 mm
Drill hole diameter, min. 6 mm
Head shape Hexagonal
Length 40 mm
Material Steel
Screw system Hexagonal
Surface Electrogalvanized
Thread M8/M10
WAF 13
All types

All types

Types Dimension Anchor length Drill hole diameter, min. WAF Item no. Quantity SSU
MMS+ I 7.5x40 7,5x40 33.5 mm 6 mm 13 3498266
40 piece
MMS+ I 7.5x60 7,5x60 53.5 mm 6 mm 13 3498268
40 piece
Downloads

Download

Download
Download
Download
Download

REACH Declaration of conformity MMS+ I 7.5x40 / 3498266 , 0.12MB , pdf
Download
RoHS Declaration of conformity MMS+ I 7.5x40 / 3498266 , 0.12MB , pdf
Download

No invitation to tender text is available for this product.
