Modul 45connect® connector part adapter, white

Item no. 6117197 | EAN 4012195670940

Product description
Product description

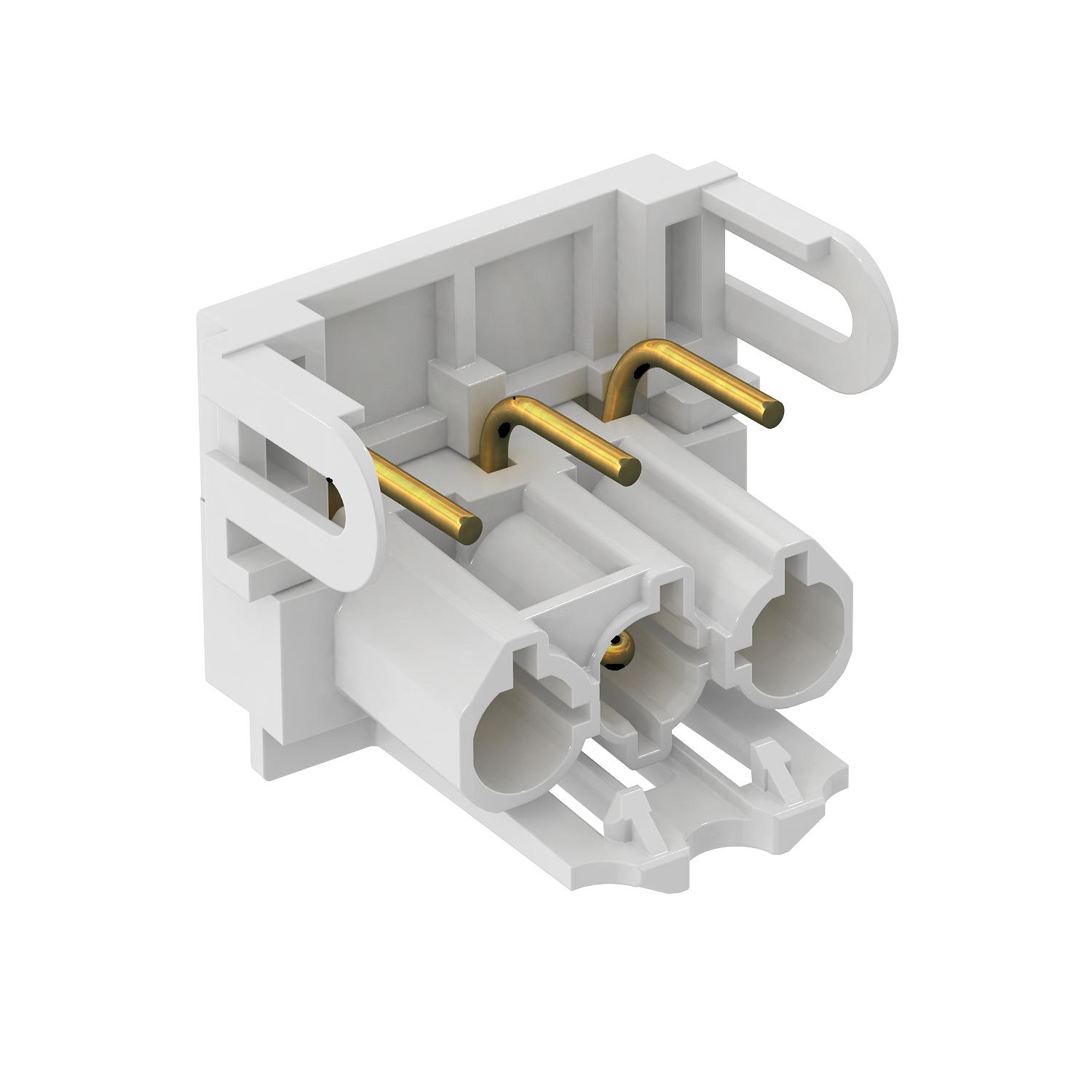

Connector part adapter, U-shaped, for connection to an STD-D0C / STD-D3C or STD-F0C / STD-F3C socket from the side, for VL extension cable with Wieland connector GST 18i 3p.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
Technical data

Technical data

Built-in variants Installation part/plug connection
Colour White
Colour of the coding/contact insert White
Colour of the separate adapter White
Contact material CuZn
Direction of insertion Straight
Halogen-free yes

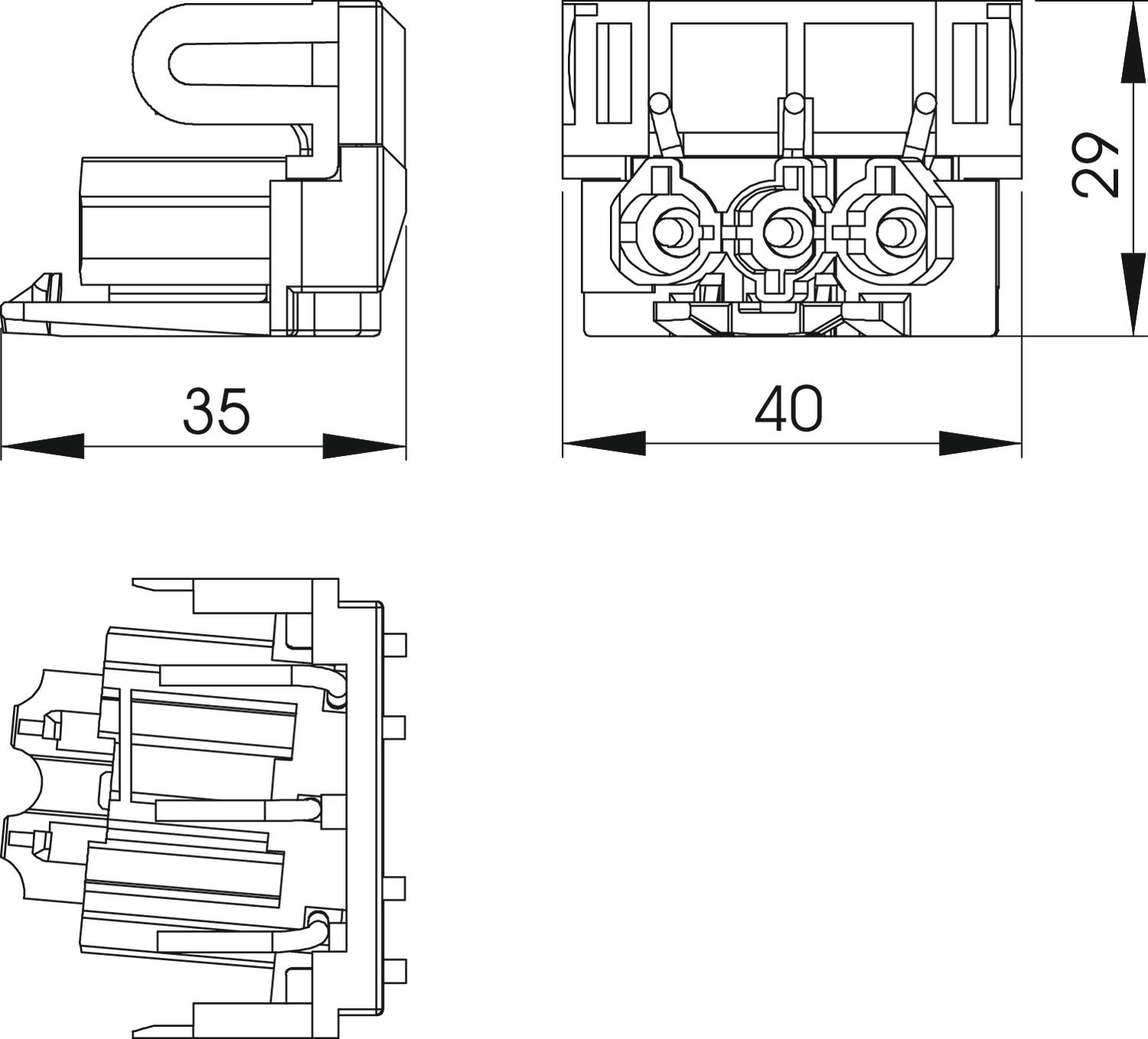

Height 29 mm
Length 35 mm
Material Polyamide
Mechanical encoding yes
Nominal current 16 A
Nominal voltage 250 V
Pin labelling L, N, PE
Plug-in system GST18
Pole number 3
Protection rating IP20
Surface treatment of the contacts Tin-plated
Thread connection dimension No threaded connection
Type of locking Integrated in plug connector
Version of the device connection Connector
Width 40 mm
All types

All types

Types Item no. Quantity SSU
STA-SKS SU1 SW 6117196
10 piece
STA-SKS SU1 W 6117197
10 piece
